Specifications
Sizes & part numbers
Filtered from catalog
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | d | L | Nm | lbf-ft | lbf-in | in-lb | WEIGHT (kg) | SPECS |
|---|---|---|---|---|---|---|---|---|
| WDG-252 | 16 | 373 | 10~135 | 7.4~99.6 | 89~1195 | - | 0.80 | - |
| WDG-253 | 16 | 548 | 20~200 | 14.8~147 | 178~1780 | - | 1.05 | - |
| WDG-254 | 16 | 748 | 34~340 | 25~250.9 | 301~3010 | - | 1.35 | - |
| OP-1710AKB | 16 | 405 | 20~100 | 14.8~74 | 178~890 | - | 1.15 | - |
| OP-1718AK | 16 | 500 | 40~200 | 29.6~148 | 356~1780 | - | 1.38 | - |
| OP-1720AK | 16 | 575 | 60~320 | 44.4~236.8 | 534~2848 | - | 1.50 | - |
| TX6-0.6Nm | - | - | 0.6 | - | - | 5.3 | - | Magnetic Bit Holder 磁性扳手本體: HW410484DG · Torque Adaptor 扭力轉接頭: HW-DG/0.6 · Star Bits 星型扳手頭: SB-T6 |
| TX7-0.9Nm | - | - | 0.9 | - | - | 8.0 | - | Magnetic Bit Holder 磁性扳手本體: HW410484DG · Torque Adaptor 扭力轉接頭: HW-DG/0.9 · Star Bits 星型扳手頭: SB-T7 |
| TX8-1.2Nm | - | - | 1.2 | - | - | 10.6 | - | Magnetic Bit Holder 磁性扳手本體: HW410484DG · Torque Adaptor 扭力轉接頭: HW-DG/1.2 · Star Bits 星型扳手頭: SB-T8 |
| TX9-1.5Nm | - | - | 1.5 | - | - | 13.2 | - | Magnetic Bit Holder 磁性扳手本體: HW410484DG · Torque Adaptor 扭力轉接頭: HW-DG/1.5 · Star Bits 星型扳手頭: SB-T9 |
| TX10-2.0Nm | - | - | 2.0 | - | - | 17.7 | - | Magnetic Bit Holder 磁性扳手本體: HW410484DG · Torque Adaptor 扭力轉接頭: HW-DG/2.0 · Star Bits 星型扳手頭: SB-T10 |

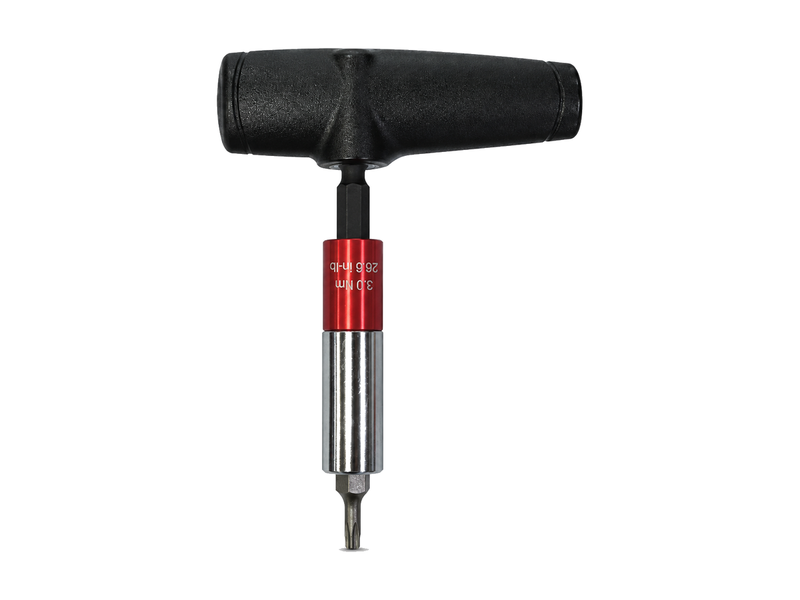

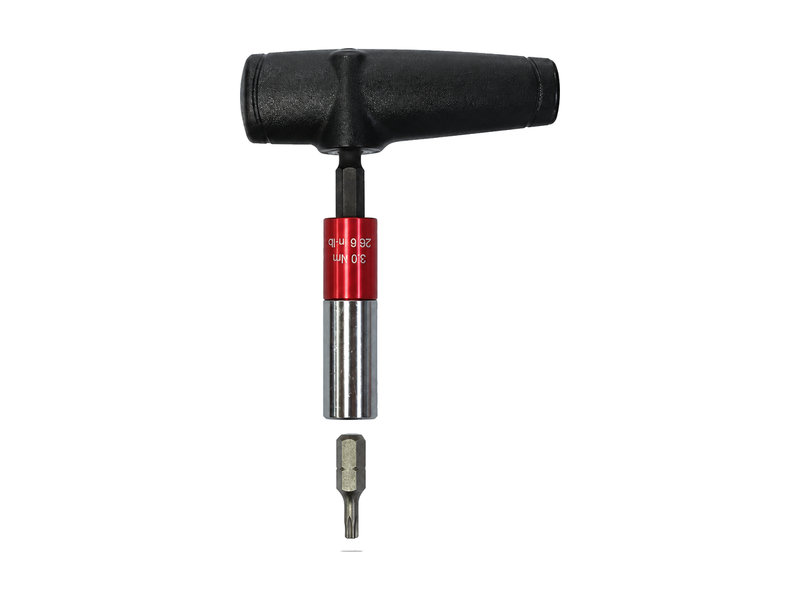

| TX15-3.0Nm | - | - | 3.0 | - | - | 26.6 | - | Magnetic Bit Holder 磁性扳手本體: HW410484DG · Torque Adaptor 扭力轉接頭: HW-DG/3.0 · Star Bits 星型扳手頭: SB-T15 |
| TX20-5.0Nm | - | - | 5.0 | - | - | 44.25 | - | Magnetic Bit Holder 磁性扳手本體: HW410484DG · Torque Adaptor 扭力轉接頭: HW-DG/5.0 · Star Bits 星型扳手頭: SB-T20 |
| APC-7Nm | - | - | - | - | - | - | - | - |
d = shank, bore or clamping diameter
