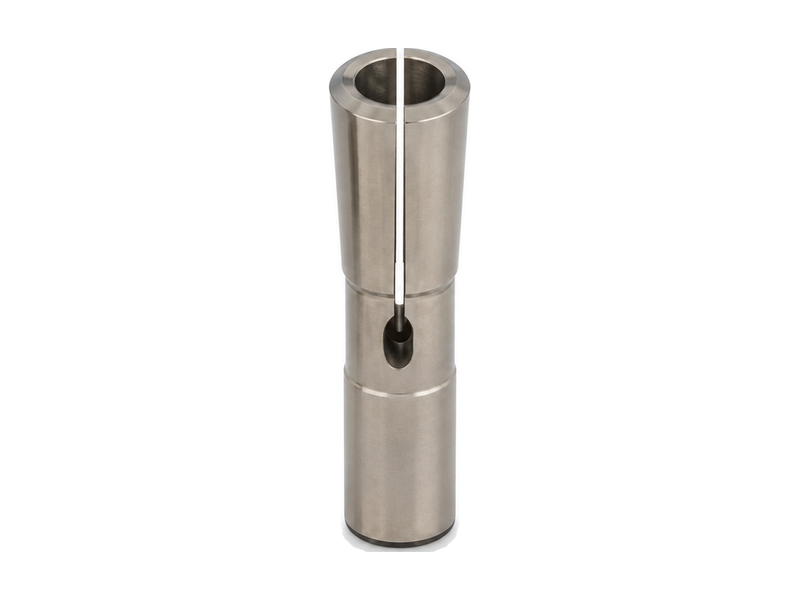

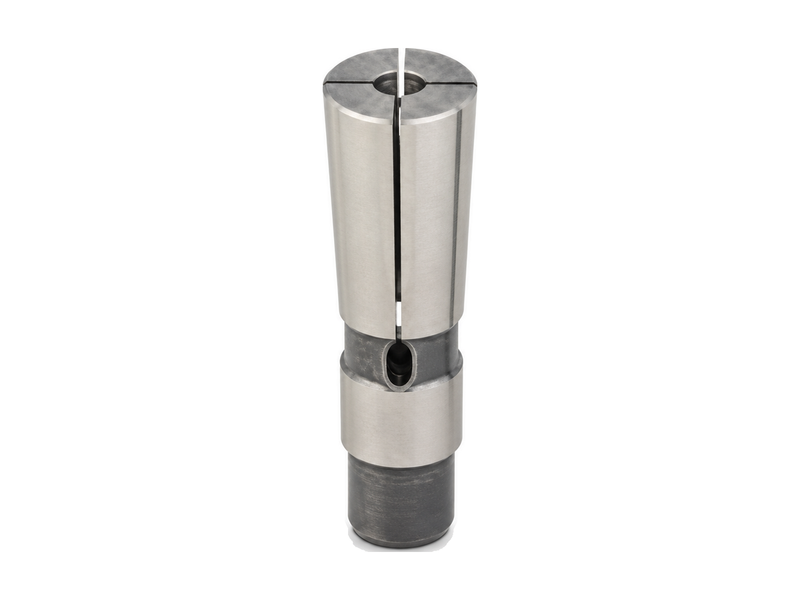

ADS Collets
ADS collets in the ADS06, ADS08, ADS10, ADS12 and ADS16 sizes, with d, D, L, E, G thread and weight printed for every size.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
2
3
3.175
4
5
6
7
8
9
10
11
12
13
14
15
16
ADS06
ADS08
ADS10
ADS12
ADS16
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

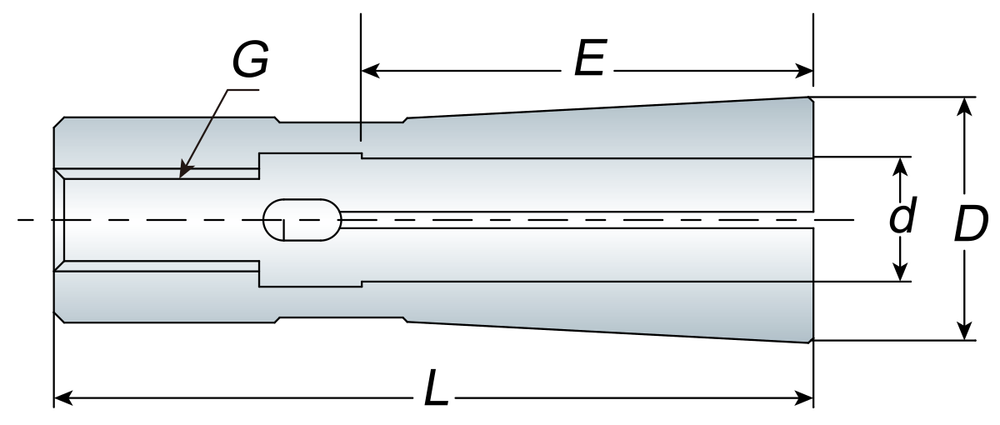

| ORDER NO. | d | D | L | E | G | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| ADS06-02 | 2 | 9.6 mm | 36 | 22 | M5x0.8P | 0.01 |
| ADS06-03 | 3 | 9.6 mm | 36 | 22 | M5x0.8P | 0.01 |
| ADS06-3.175 | 3.175 | 9.6 mm | 36 | 22 | M5x0.8P | 0.01 |
| ADS06-04 | 4 | 9.6 mm | 36 | 22 | M5x0.8P | 0.01 |
| ADS06-05 | 5 | 9.6 mm | 36 | 22 | M5x0.8P | 0.01 |
| ADS06-06 | 6 | 9.6 mm | 36 | 22 | M5x0.8P | 0.01 |
| ADS08-03 | 3 | 12 mm | 37 | 22 | M5x0.8P | 0.02 |
| ADS08-3.175 | 3.175 | 12 mm | 37 | 22 | M5x0.8P | 0.02 |
| ADS08-04 | 4 | 12 mm | 37 | 22 | M5x0.8P | 0.02 |
| ADS08-05 | 5 | 12 mm | 37 | 22 | M5x0.8P | 0.02 |
| ADS08-06 | 6 | 12 mm | 37 | 22 | M5x0.8P | 0.02 |
| ADS08-07 | 7 | 12 mm | 37 | 22 | M5x0.8P | 0.02 |
| ADS08-08 | 8 | 12 mm | 37 | 22 | M5x0.8P | 0.02 |
| ADS10-03 | 3 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-04 | 4 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-05 | 5 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-06 | 6 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-07 | 7 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-08 | 8 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-09 | 9 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-10 | 10 | 15 mm | 45 | 27 | M6x1.0P | 0.05 |
| ADS12-03 | 3 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-3.175 | 3.175 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-04 | 4 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-05 | 5 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-06 | 6 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-07 | 7 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-08 | 8 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-09 | 9 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-10 | 10 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-11 | 11 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS12-12 | 12 | 18 mm | 61 | 41 | M8x1.25P | 0.07 |
| ADS16-05 | 5 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-06 | 6 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-07 | 7 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-08 | 8 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-09 | 9 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-10 | 10 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-11 | 11 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-12 | 12 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-13 | 13 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-14 | 14 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-15 | 15 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
| ADS16-16 | 16 | 24 mm | 63 | 45 | M8x1.25P | 0.13 |
d = shank, bore or clamping diameter
Compatibility
Fits these chucks
ADS06 collet
ADS08 collet
ADS10 collet
ADS12 collet
ADS16 collet
