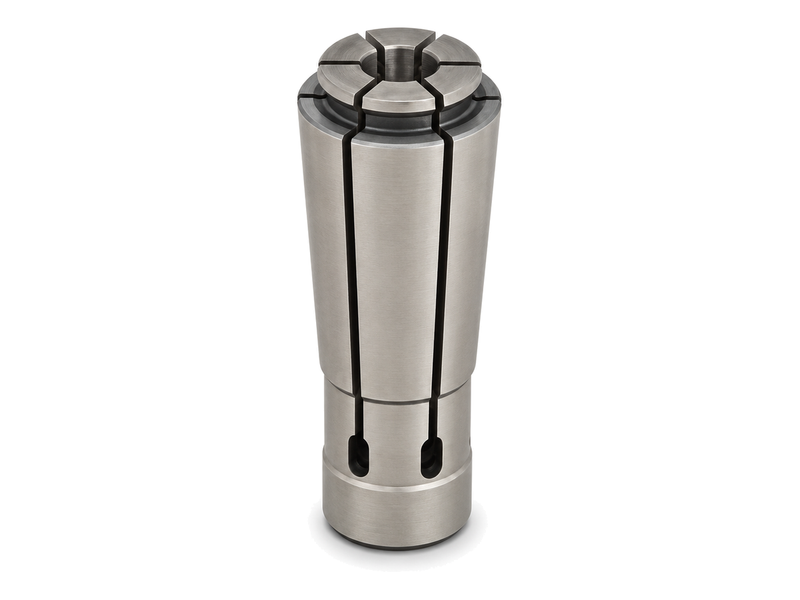

AVC Collets
AVC collets for end mills in AVC06, AVC10 and AVC12 sizes, with d, D, L1, L and weight printed for every size.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
2
3
4
5
6
7
8
9
10
11
12
AVC06
AVC10
AVC12
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

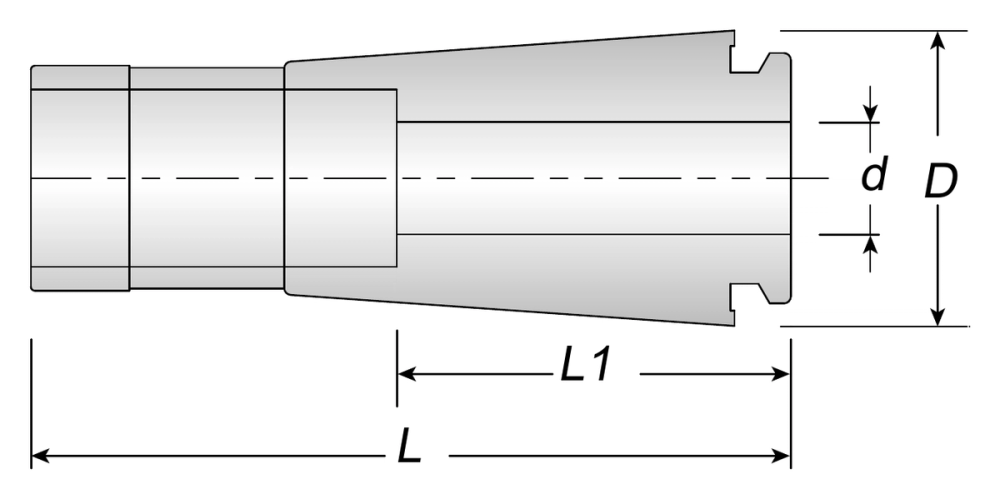

| ORDER NO. | d | D | L1 | L | WEIGHT (kg) |
|---|---|---|---|---|---|
| AVC06-02 | 2 | 14 mm | 14 | 40 | 0.02 |
| AVC06-03 | 3 | 14 mm | 16 | 40 | 0.02 |
| AVC06-04 | 4 | 14 mm | 18 | 40 | 0.02 |
| AVC06-05 | 5 | 14 mm | 20 | 40 | 0.02 |
| AVC06-06 | 6 | 14 mm | 22 | 40 | 0.02 |
| AVC10-03 | 3 | 17 mm | 16 | 45.5 | 0.04 |
| AVC10-04 | 4 | 17 mm | 18 | 45.5 | 0.04 |
| AVC10-05 | 5 | 17 mm | 20 | 45.5 | 0.04 |
| AVC10-06 | 6 | 17 mm | 22 | 45.5 | 0.04 |
| AVC10-08 | 8 | 17 mm | 28 | 45.5 | 0.04 |
| AVC10-10 | 10 | 17 mm | 30 | 45.5 | 0.04 |
| AVC12-03 | 3 | 21 mm | 16 | 54 | 0.06 |
| AVC12-04 | 4 | 21 mm | 18 | 54 | 0.06 |
| AVC12-05 | 5 | 21 mm | 20 | 54 | 0.06 |
| AVC12-06 | 6 | 21 mm | 22 | 54 | 0.06 |
| AVC12-07 | 7 | 21 mm | 25 | 54 | 0.06 |
| AVC12-08 | 8 | 21 mm | 28 | 54 | 0.06 |
| AVC12-09 | 9 | 21 mm | 28 | 54 | 0.06 |
| AVC12-10 | 10 | 21 mm | 30 | 54 | 0.06 |
| AVC12-11 | 11 | 21 mm | 30 | 54 | 0.06 |
| AVC12-12 | 12 | 21 mm | 32 | 54 | 0.06 |
d = shank, bore or clamping diameter
Compatibility
Fits these chucks
AVC06 collet
AVC10 collet
AVC12 collet
