SK Collets
Annway Accessories

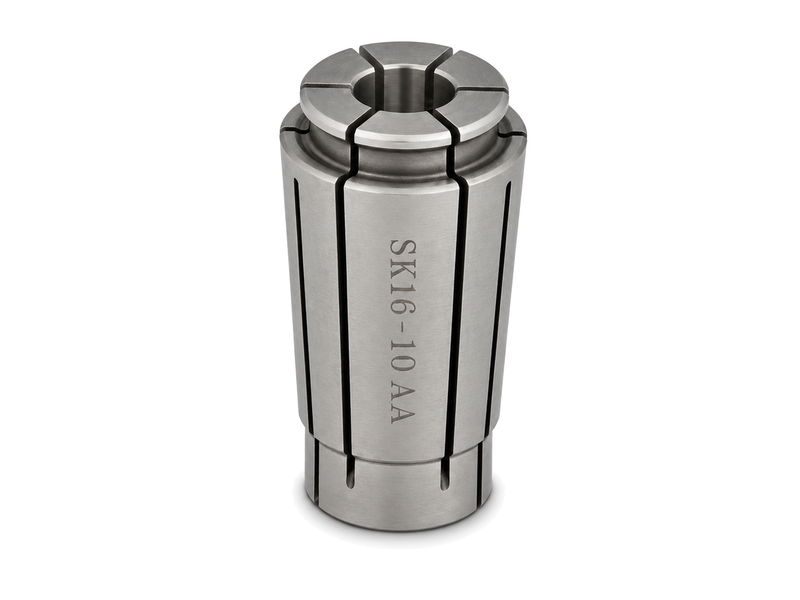

SK Collets

SK collets for SK collet chucks: standard, coolant-through (SK-CL) and end mill (SK-E) types, with printed bore options and dimensions.

Ask on LINE
Specifications

Sizes & part numbers

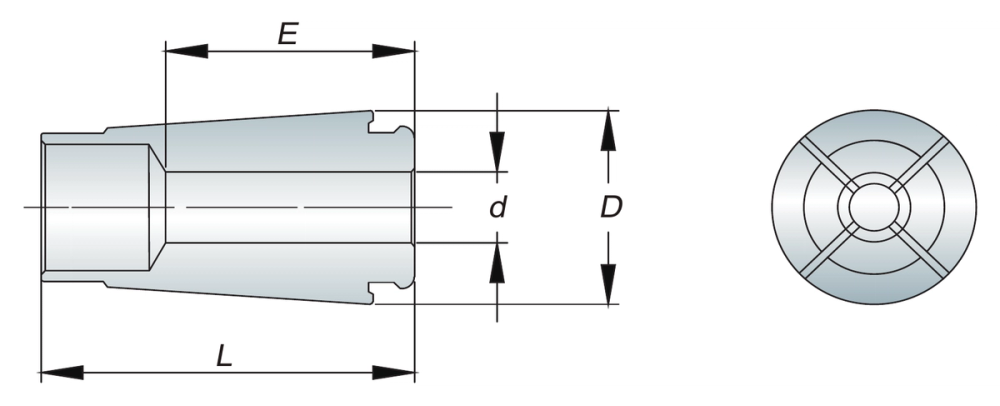

SK Collets dimension diagram 🔍 Click to zoom
SK Collets specifications
ORDER NO.dERANGEDL
SK06-02 2 12 2~1.75 10.4 mm 25
SK06-2.25 2.25 12 2.25~2 10.4 mm 25
SK06-2.5 2.5 12 2.5~2.25 10.4 mm 25
SK06-2.75 2.75 12 2.75~2.5 10.4 mm 25
SK06-03 3 15 3~2.75 10.4 mm 25
SK06-3.175 3.175 15 3.175~2.5 10.4 mm 25
SK06-3.5 3.5 15 3.5~3 10.4 mm 25
SK06-04 4 16 4~3.5 10.4 mm 25
SK06-4.5 4.5 16 4.5~4 10.4 mm 25
SK06-05 5 21 5~4.5 10.4 mm 25
SK06-5.5 5.5 21 5.5~5 10.4 mm 25
SK06-06 6 25 6~5.5 10.4 mm 25
SK10-02 2 15 2~1.75 15.6 mm 31
SK10-2.25 2.25 15 2.25~2 15.6 mm 31
SK10-2.5 2.5 15 2.5~2.25 15.6 mm 31
SK10-2.75 2.75 15 2.75~2.5 15.6 mm 31
SK10-03 3 15 3~2.75 15.6 mm 31
SK10-3.175 3.175 15 3.175~2.7 15.6 mm 31
SK10-3.5 3.5 15 3.5~3 15.6 mm 31
SK10-04 4 20 4~3.5 15.6 mm 31
SK10-4.5 4.5 20 4.5~4 15.6 mm 31
SK10-05 5 20 5~4.5 15.6 mm 31
SK10-5.5 5.5 20 5.5~5 15.6 mm 31
SK10-06 6 24 6~5.5 15.6 mm 31
SK10-6.5 6.5 24 6.5~6 15.6 mm 31
SK10-07 7 24 7~6.5 15.6 mm 31
SK10-7.5 7.5 24 7.5~7 15.6 mm 31
SK10-08 8 24 8~7.5 15.6 mm 31
SK10-8.5 8.5 24 8.5~8 15.6 mm 31
SK10-09 9 24 9~8.5 15.6 mm 31
SK10-9.5 9.5 24 9.5~9 15.6 mm 31
SK10-10 10 30.5 10~9.5 15.6 mm 31
SK13-03 3 18 3~2.75 20 mm 39
SK13-3.175 3.175 18 3.175~2.7 20 mm 39
SK13-3.5 3.5 18 3.5~3 20 mm 39
SK13-04 4 20 4~3.5 20 mm 39
SK13-4.5 4.5 20 4.5~4 20 mm 39
SK13-05 5 20 5~4.5 20 mm 39
SK13-5.5 5.5 20 5.5~5 20 mm 39
SK13-06 6 24 6~5.5 20 mm 39
SK13-6.5 6.5 24 6.5~6 20 mm 39
SK13-07 7 26 7~6.5 20 mm 39
SK13-7.5 7.5 26 7.5~7 20 mm 39
SK13-08 8 28 8~7.5 20 mm 39
SK13-8.5 8.5 28 8.5~8 20 mm 39
SK13-09 9 30 9~8.5 20 mm 39
SK13-9.5 9.5 30 9.5~9 20 mm 39
SK13-10 10 30 10~9.5 20 mm 39
SK13-10.5 10.5 30 10.5~10 20 mm 39
SK13-11 11 30 11~10.5 20 mm 39
SK13-11.5 11.5 30 11.5~11 20 mm 39
SK13-12 12 39 12~11.5 20 mm 39
SK13-12.5 12.5 39 12.5~12 20 mm 39
SK13-13 13 39 13~12.5 20 mm 39
SK16-03 3 18 3~2.75 24.6 mm 45
SK16-3.175 3.175 18 3.175~2.7 24.6 mm 45
SK16-3.5 3.5 18 3.5~3 24.6 mm 45
SK16-04 4 20 4~3.5 24.6 mm 45
SK16-4.5 4.5 20 4.5~4 24.6 mm 45
SK16-05 5 22 5~4.5 24.6 mm 45
SK16-5.5 5.5 22 5.5~5 24.6 mm 45
SK16-06 6 25 6~5.5 24.6 mm 45
SK16-6.5 6.5 25 6.5~6 24.6 mm 45
SK16-07 7 28 7~6.5 24.6 mm 45
SK16-7.5 7.5 28 7.5~7 24.6 mm 45
SK16-08 8 34 8~7.5 24.6 mm 45
SK16-8.5 8.5 34 8.5~8 24.6 mm 45
SK16-09 9 34 9~8.5 24.6 mm 45
SK16-9.5 9.5 34 9.5~9 24.6 mm 45
SK16-10 10 34 10~9.5 24.6 mm 45
SK16-10.5 10.5 34 10.5~10 24.6 mm 45
SK16-11 11 34 11~10.5 24.6 mm 45
SK16-11.5 11.5 34 11.5~11 24.6 mm 45
SK16-12 12 34 12~11.5 24.6 mm 45
SK16-12.5 12.5 34 12.5~12 24.6 mm 45
SK16-13 13 34 13~12.5 24.6 mm 45
SK16-13.5 13.5 34 13.5~13 24.6 mm 45
SK16-14 14 34 14~13.5 24.6 mm 45
SK16-14.5 14.5 34 14.5~14 24.6 mm 45
SK16-15 15 34 15~14.5 24.6 mm 45
SK16-15.5 15.5 34 15.5~15 24.6 mm 45
SK16-16 16 45 16~15.5 24.6 mm 45
SK20-04 4 18 3.5~4 29.1 mm 54.3
SK20-05 5 18 4.5~5 29.1 mm 54.3
SK20-06 6 24 5.5~6 29.1 mm 54.3
SK20-07 7 24 6.5~7 29.1 mm 54.3
SK20-08 8 32 7.5~8 29.1 mm 54.3
SK20-09 9 32 8.5~9 29.1 mm 54.3
SK20-10 10 38 9.5~10 29.1 mm 54.3
SK20-11 11 38 10.5~11 29.1 mm 54.3
SK20-12 12 38 11.5~12 29.1 mm 54.3
SK20-13 13 38 12.5~13 29.1 mm 54.3
SK20-14 14 38 13.5~14 29.1 mm 54.3
SK20-15 15 38 14.5~15 29.1 mm 54.3
SK20-16 16 39 15.5~16 29.1 mm 54.3
SK20-17 17 39 16.5~17 29.1 mm 54.3
SK20-18 18 39 17.5~18 29.1 mm 54.3
SK20-19 19 45 18.5~19 29.1 mm 54.3
SK20-20 20 50 19.5~20 29.1 mm 54.3
SK25-06 6 24 5.5~6 35.7 mm 57
SK25-08 8 32 7.5~8 35.7 mm 57
SK25-10 10 40 9.5~10 35.7 mm 57
SK25-12 12 42 11.5~12 35.7 mm 57
SK25-14 14 42 13.5~14 35.7 mm 57
SK25-16 16 44 15.5~16 35.7 mm 57
SK25-17 17 44 16.5~17 35.7 mm 57
SK25-18 18 44 17.5~18 35.7 mm 57
SK25-19 19 44 18.5~19 35.7 mm 57
SK25-20 20 46 19.5~20 35.7 mm 57
SK25-21 21 46 20.5~21 35.7 mm 57
SK25-22 22 46 21.5~22 35.7 mm 57
SK25-23 23 46 22.5~23 35.7 mm 57
SK25-24 24 46 23.5~24 35.7 mm 57
SK25-25 25 57 24.5~25 35.7 mm 57
SK10-3CL 3 15 - 15.6 mm 31
SK10-4CL 4 20 - 15.6 mm 31
SK10-5CL 5 20 - 15.6 mm 31
SK10-6CL 6 24 - 15.6 mm 31
SK10-8CL 8 24 - 15.6 mm 31
SK10-10CL 10 30.5 - 15.6 mm 31
SK16-3CL 3 18 - 24.6 mm 45
SK16-4CL 4 20 - 24.6 mm 45
SK16-5CL 5 22 - 24.6 mm 45
SK16-6CL 6 25 - 24.6 mm 45
SK16-8CL 8 34 - 24.6 mm 45
SK16-10CL 10 34 - 24.6 mm 45
SK16-12CL 12 34 - 24.6 mm 45
SK16-14CL 14 37 - 24.6 mm 45
SK16-16CL 16 45 - 24.6 mm 45
SK06E-03 3 15 - 10.4 mm 25
SK06E-3.175 3.175 15 - 10.4 mm 25
SK06E-04 4 16 - 10.4 mm 25
SK06E-06 6 21 - 10.4 mm 25
SK10E-03 3 15 - 15.6 mm 31
SK10E-3.175 3.175 15 - 15.6 mm 31
SK10E-04 4 20 - 15.6 mm 31
SK10E-05 5 20 - 15.6 mm 31
SK10E-06 6 24 - 15.6 mm 31
SK10E-08 8 24 - 15.6 mm 31
SK10E-10 10 30.5 - 15.6 mm 31
SK13E-03 3 18 - 20 mm 39
SK13E-3.175 3.175 18 - 20 mm 39
SK13E-04 4 20 - 20 mm 39
SK13E-05 5 20 - 20 mm 39
SK13E-06 6 24 - 20 mm 39
SK13E-08 8 28 - 20 mm 39
SK13E-10 10 30 - 20 mm 39
SK13E-12 12 39 - 20 mm 39
SK16E-03 3 18 - 24.6 mm 45
SK16E-3.175 3.175 18 - 24.6 mm 45
SK16E-04 4 20 - 24.6 mm 45
SK16E-05 5 22 - 24.6 mm 45
SK16E-06 6 25 - 24.6 mm 45
SK16E-08 8 34 - 24.6 mm 45
SK16E-10 10 34 - 24.6 mm 45
SK16E-12 12 34 - 24.6 mm 45
SK16E-16 16 45 - 24.6 mm 45
SK20E-04 4 18 - 29.1 mm 54.3
SK20E-05 5 18 - 29.1 mm 54.3
SK20E-06 6 24 - 29.1 mm 54.3
SK20E-08 8 32 - 29.1 mm 54.3
SK20E-10 10 38 - 29.1 mm 54.3
SK20E-12 12 38 - 29.1 mm 54.3
SK20E-14 14 39 - 29.1 mm 54.3
SK20E-16 16 39 - 29.1 mm 54.3
SK20E-20 20 50 - 29.1 mm 54.3
SK25E-06 6 24 - 35.7 mm 57
SK25E-08 8 32 - 35.7 mm 57
SK25E-10 10 40 - 35.7 mm 57
SK25E-12 12 42 - 35.7 mm 57
SK25E-14 14 42 - 35.7 mm 57
SK25E-16 16 44 - 35.7 mm 57
SK25E-18 18 44 - 35.7 mm 57
SK25E-20 20 46 - 35.7 mm 57
SK25E-22 22 46 - 35.7 mm 57
SK25E-24 24 46 - 35.7 mm 57
SK25E-25 25 57 - 35.7 mm 57
SK25E-25.4 25.4 57 - 35.7 mm 57

d = shank, bore or clamping diameter
