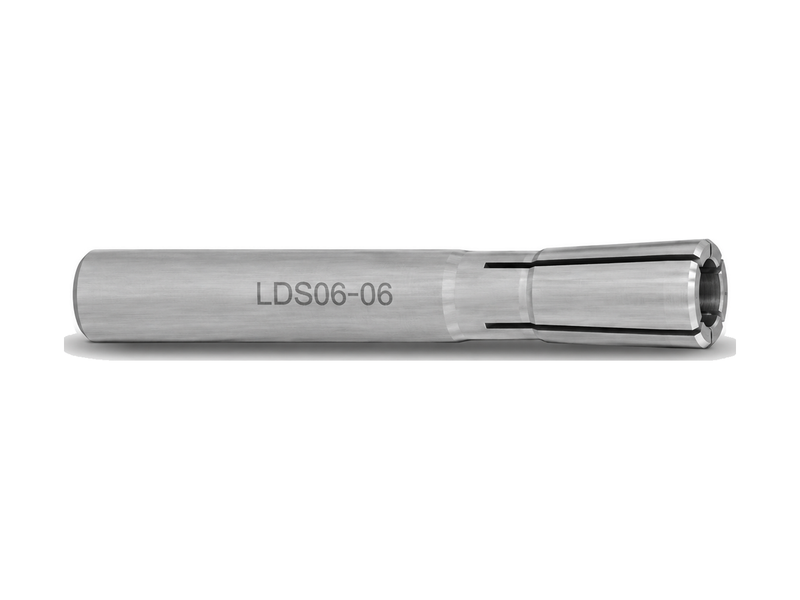

LDS Collets
LDS collets in the LDS06 size, with d, D, L, E, G thread and weight printed for every size.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
2
3
3.175
4
5
6
LDS06
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

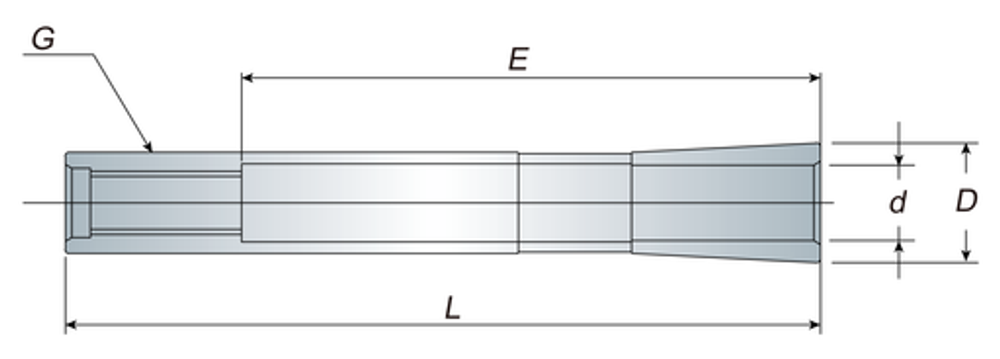

| ORDER NO. | d | D | L | E | G | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| LDS06-02 | 2 | 9.6 mm | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-03 | 3 | 9.6 mm | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-3.175 | 3.175 | 9.6 mm | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-04 | 4 | 9.6 mm | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-05 | 5 | 9.6 mm | 60 | 46 | M5x0.8P | 0.02 |
| LDS06-06 | 6 | 9.6 mm | 60 | 46 | M5x0.8P | 0.02 |
d = shank, bore or clamping diameter
Compatibility
Fits these chucks
LDS06 collet
