Annway Milling Collet Chuck

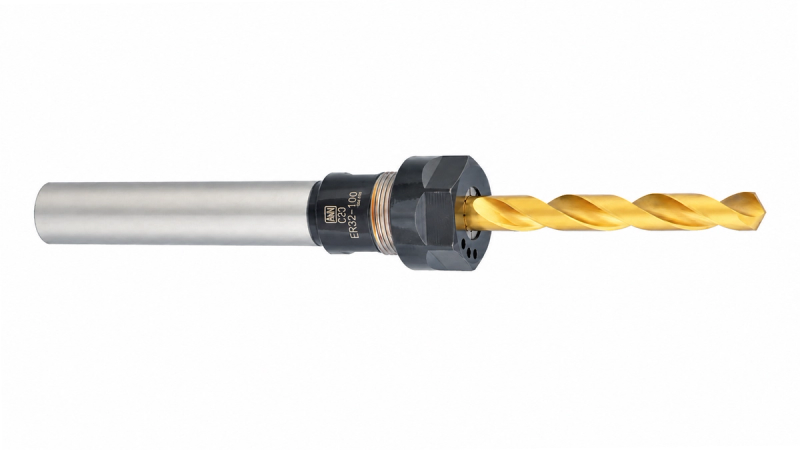

ER Spring Collet Chuck
ER Spring Collet Chuck for BT, C and NT mounts, clamping range d 1–26 mm, ER08–ER40 collets, 111 catalogue items.
Specifications
Sizes & part numbers
BT-series dimensions 🔍 Click to zoom

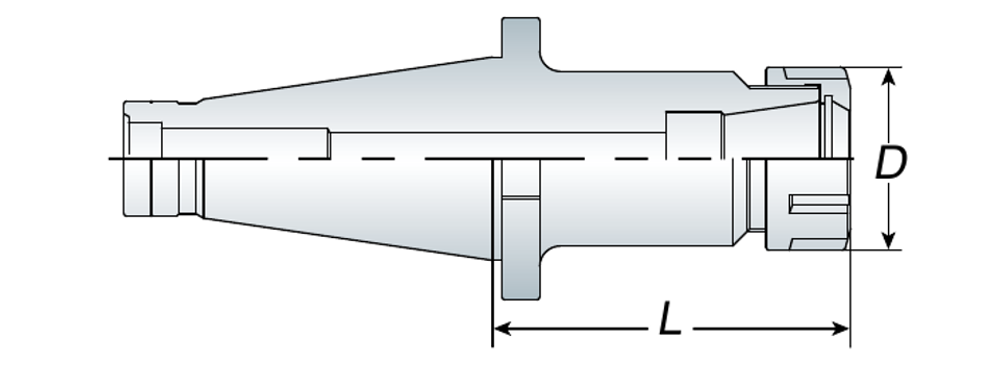

NT-series dimensions 🔍 Click to zoom

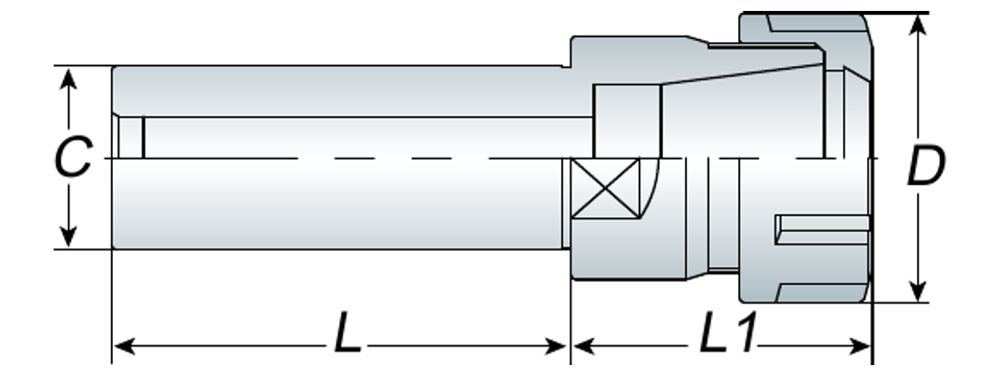

C straight shank dimensions 🔍 Click to zoom

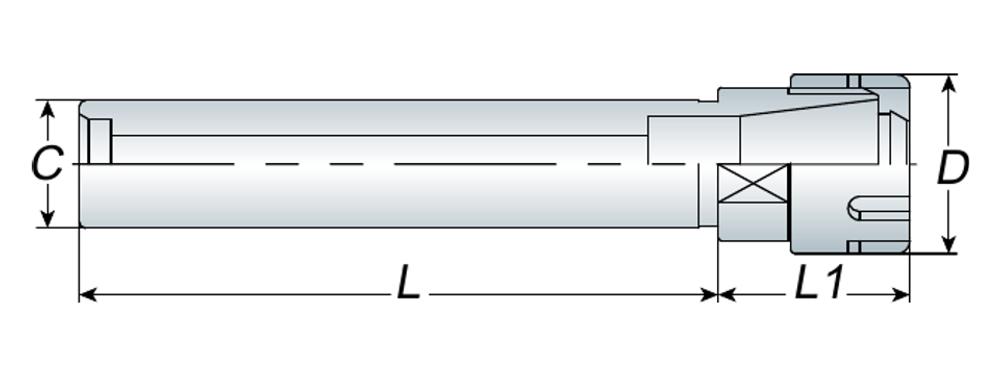

C straight shank (M-type) dimensions 🔍 Click to zoom Filtered from catalog
12
16
19
22
28
34
42
50
63
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | MOUNT | CLAMP RANGE d | COLLET TYPE | D | L1 | L | WEIGHT (kg) | SHANK | SPECS |
|---|---|---|---|---|---|---|---|---|---|
| BT30 ER08-060M | BT30 | 1~5 | ER08 | 12 | - | 60 | 0.50 | - | Machine thread: M6 · Wrench spec: WM08 |
| BT30 ER08-100M | BT30 | 1~5 | ER08 | 12 | - | 100 | 0.60 | - | Machine thread: M6 · Wrench spec: WM08 |
| BT40 ER11-070M | BT40 | 1~7 | ER11 | 16 | - | 70 | 1.15 | - | Machine thread: M8 · Wrench spec: WM11 |
| BT30 ER11-100M | BT30 | 1~7 | ER11 | 16 | - | 100 | 0.60 | - | Machine thread: M8 · Wrench spec: WM11 |
| BT40 ER11-100M | BT40 | 1~7 | ER11 | 16 | - | 100 | 1.20 | - | Machine thread: M8 · Wrench spec: WM11 |
| BT30 ER11-060 | BT30 | 1~7 | ER11 | 19 | - | 60 | 0.60 | - | Machine thread: M8 · Wrench spec: WER11 |
| BT40 ER11-070 | BT40 | 1~7 | ER11 | 19 | - | 70 | 1.20 | - | Machine thread: M8 · Wrench spec: WER11 |
| BT40 ER11-100 | BT40 | 1~7 | ER11 | 19 | - | 100 | 1.25 | - | Machine thread: M8 · Wrench spec: WER11 |
| BT30 ER16-100M | BT30 | 1~10 | ER16 | 22 | - | 100 | 0.70 | - | Machine thread: M12 · Wrench spec: WM16 |
| BT40 ER16-100M | BT40 | 1~10 | ER16 | 22 | - | 100 | 1.25 | - | Machine thread: M12 · Wrench spec: WM16 |
| BT30 ER16-060 | BT30 | 1~10 | ER16 | 28 | - | 60 | 0.60 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT30 ER16-070 | BT30 | 1~10 | ER16 | 28 | - | 70 | 0.70 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT40 ER16-070 | BT40 | 1~10 | ER16 | 28 | - | 70 | 1.20 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT30 ER20-100M | BT30 | 1~13 | ER20 | 28 | - | 100 | 0.80 | - | Machine thread: M14 · Wrench spec: WM20 |
| BT40 ER20-100M | BT40 | 1~13 | ER20 | 28 | - | 100 | 1.30 | - | Machine thread: M14 · Wrench spec: WM20 |
| BT40 ER16-100 | BT40 | 1~10 | ER16 | 28 | - | 100 | 1.40 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT50 ER16-100 | BT50 | 1~10 | ER16 | 28 | - | 100 | 4.10 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT40 ER16-150 | BT40 | 1~10 | ER16 | 28 | - | 150 | 1.60 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT50 ER16-150 | BT50 | 1~10 | ER16 | 28 | - | 150 | 4.30 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT50 ER16-200 | BT50 | 1~10 | ER16 | 28 | - | 200 | 4.60 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT50 ER16-250 | BT50 | 1~10 | ER16 | 28 | - | 250 | 5.10 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT50 ER16-300 | BT50 | 1~10 | ER16 | 28 | - | 300 | 5.40 | - | Machine thread: M12 · Wrench spec: WER16 |
| BT30 ER20-060 | BT30 | 1~13 | ER20 | 34 | - | 60 | 0.60 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT40 ER20-080 | BT40 | 1~13 | ER20 | 34 | - | 80 | 1.30 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT40 ER20-100 | BT40 | 1~13 | ER20 | 34 | - | 100 | 1.50 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT50 ER20-100 | BT50 | 1~13 | ER20 | 34 | - | 100 | 4.20 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT40 ER20-150 | BT40 | 1~13 | ER20 | 34 | - | 150 | 1.80 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT50 ER20-150 | BT50 | 1~13 | ER20 | 34 | - | 150 | 4.50 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT50 ER20-200 | BT50 | 1~13 | ER20 | 34 | - | 200 | 4.90 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT50 ER20-250 | BT50 | 1~13 | ER20 | 34 | - | 250 | 5.50 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT50 ER20-300 | BT50 | 1~13 | ER20 | 34 | - | 300 | 5.90 | - | Machine thread: M14 · Wrench spec: WER20 |
| BT30 ER25-060 | BT30 | 2~16 | ER25 | 42 | - | 60 | 0.70 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT40 ER25-080 | BT40 | 2~16 | ER25 | 42 | - | 80 | 1.50 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT40 ER25-100 | BT40 | 2~16 | ER25 | 42 | - | 100 | 1.70 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT50 ER25-100 | BT50 | 2~16 | ER25 | 42 | - | 100 | 4.20 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT40 ER25-150 | BT40 | 2~16 | ER25 | 42 | - | 150 | 2.10 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT50 ER25-150 | BT50 | 2~16 | ER25 | 42 | - | 150 | 4.80 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT50 ER25-200 | BT50 | 2~16 | ER25 | 42 | - | 200 | 5.30 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT50 ER25-250 | BT50 | 2~16 | ER25 | 42 | - | 250 | 6.10 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT50 ER25-300 | BT50 | 2~16 | ER25 | 42 | - | 300 | 6.80 | - | Machine thread: M18 · Wrench spec: WER25 |
| BT30 ER32-060 | BT30 | 2~20 | ER32 | 50 | - | 60 | 0.75 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT40 ER32-060 | BT40 | 2~20 | ER32 | 50 | - | 60 | 1.30 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT30 ER32-070 | BT30 | 2~20 | ER32 | 50 | - | 70 | 0.80 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT40 ER32-070 | BT40 | 2~20 | ER32 | 50 | - | 70 | 1.40 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT40 ER32-100 | BT40 | 2~20 | ER32 | 50 | - | 100 | 1.80 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT50 ER32-100 | BT50 | 2~20 | ER32 | 50 | - | 100 | 4.40 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT40 ER32-150 | BT40 | 2~20 | ER32 | 50 | - | 150 | 2.60 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT50 ER32-150 | BT50 | 2~20 | ER32 | 50 | - | 150 | 5.20 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT50 ER32-200 | BT50 | 2~20 | ER32 | 50 | - | 200 | 5.90 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT50 ER32-250 | BT50 | 2~20 | ER32 | 50 | - | 250 | 6.60 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT50 ER32-300 | BT50 | 2~20 | ER32 | 50 | - | 300 | 7.50 | - | Machine thread: M24 · Wrench spec: WER32 |
| BT40 ER40-080 | BT40 | 3~26 | ER40 | 63 | - | 80 | 1.70 | - | Machine thread: M28 · Wrench spec: WER40 |
| BT50 ER40-080 | BT50 | 3~26 | ER40 | 63 | - | 80 | 4.30 | - | Machine thread: M28 · Wrench spec: WER40 |
| BT40 ER40-100 | BT40 | 3~26 | ER40 | 63 | - | 100 | 2.20 | - | Machine thread: M28 · Wrench spec: WER40 |
| BT50 ER40-100 | BT50 | 3~26 | ER40 | 63 | - | 100 | 4.70 | - | Machine thread: M28 · Wrench spec: WER40 |
| BT50 ER40-150 | BT50 | 3~26 | ER40 | 63 | - | 150 | 5.90 | - | Machine thread: M28 · Wrench spec: WER40 |
| BT50 ER40-200 | BT50 | 3~26 | ER40 | 63 | - | 200 | 7.10 | - | Machine thread: M28 · Wrench spec: WER40 |
| BT50 ER40-250 | BT50 | 3~26 | ER40 | 63 | - | 250 | 8.20 | - | Machine thread: M28 · Wrench spec: WER40 |
| BT50 ER40-300 | BT50 | 3~26 | ER40 | 63 | - | 300 | 9.30 | - | Machine thread: M28 · Wrench spec: WER40 |
| NT30 ER16-076 | NT30 | - | ER16 | 28 | - | 76 | 0.70 | - | Screw spec: 1/2"-12 / M12x1.75P |
| NT40 ER16-076 | NT40 | - | ER16 | 28 | - | 76 | 1.20 | - | Screw spec: 5/8"-11 / M16x2.0P |
| NT40 ER16-100 | NT40 | - | ER16 | 28 | - | 100 | 1.30 | - | Screw spec: 5/8"-11 / M16x2.0P |
| NT50 ER16-100 | NT50 | - | ER16 | 28 | - | 100 | 3.30 | - | Screw spec: 1"-8 / M24x3.0P |
| NT50 ER16-150 | NT50 | - | ER16 | 28 | - | 150 | 3.50 | - | Screw spec: 1"-8 / M24x3.0P |
| NT40 ER20-076 | NT40 | - | ER20 | 34 | - | 76 | 1.40 | - | Screw spec: 5/8"-11 / M16x2.0P |
| NT40 ER20-100 | NT40 | - | ER20 | 34 | - | 100 | 1.40 | - | Screw spec: 5/8"-11 / M16x2.0P |
| NT50 ER20-100 | NT50 | - | ER20 | 34 | - | 100 | 3.30 | - | Screw spec: 1"-8 / M24x3.0P |
| NT50 ER20-150 | NT50 | - | ER20 | 34 | - | 150 | 3.70 | - | Screw spec: 1"-8 / M24x3.0P |
| NT40 ER32-050 | NT40 | - | ER32 | 50 | - | 50 | 1.10 | - | Screw spec: 5/8"-11 / M16x2.0P |
| NT30 ER32-055 | NT30 | - | ER32 | 50 | - | 55 | 0.80 | - | Screw spec: 1/2"-12 / M12x1.75P |
| NT50 ER32-058 | NT50 | - | ER32 | 50 | - | 58 | 3.20 | - | Screw spec: 1"-8 / M24x3.0P |
| NT40 ER40-055 | NT40 | - | ER40 | 63 | - | 55 | 1.40 | - | Screw spec: 5/8"-11 / M16x2.0P |
| NT50 ER40-058 | NT50 | - | ER40 | 63 | - | 58 | 3.20 | - | Screw spec: 1"-8 / M24x3.0P |
| NT30 ER40-085 | NT30 | - | ER40 | 63 | - | 85 | 1.40 | - | Screw spec: 1/2"-12 / M12x1.75P |
| C20 ER16-050 | C20 | - | ER16 | 28 | 35 | 50 | 0.20 | 20 | - |
| C20 ER16-100 | C20 | - | ER16 | 28 | 35 | 100 | 0.35 | 20 | - |
| C25 ER16-100 | C25 | - | ER16 | 28 | 20 | 100 | 0.40 | 25 | - |
| C20 ER16-150 | C20 | - | ER16 | 28 | 35 | 150 | 0.45 | 20 | - |
| C25 ER16-150 | C25 | - | ER16 | 28 | 20 | 150 | 0.70 | 25 | - |
| C20 ER20-050 | C20 | - | ER20 | 34 | 40 | 50 | 0.25 | 20 | - |
| C20 ER20-100 | C20 | - | ER20 | 34 | 40 | 100 | 0.40 | 20 | - |
| C25 ER20-100 | C25 | - | ER20 | 34 | 38 | 100 | 0.50 | 25 | - |
| C20 ER20-150 | C20 | - | ER20 | 34 | 40 | 150 | 0.50 | 20 | - |
| C25 ER20-150 | C25 | - | ER20 | 34 | 38 | 150 | 0.75 | 25 | - |
| C20 ER25-050 | C20 | - | ER25 | 42 | 46 | 50 | 0.40 | 20 | - |
| C32 ER25-060 | C32 | - | ER25 | 42 | 46 | 60 | 0.70 | 32 | - |
| C20 ER25-100 | C20 | - | ER25 | 42 | 46 | 100 | 0.50 | 20 | - |
| C25 ER25-100 | C25 | - | ER25 | 42 | 42 | 100 | 0.55 | 25 | - |
| C20 ER25-150 | C20 | - | ER25 | 42 | 46 | 150 | 0.70 | 20 | - |
| C25 ER25-150 | C25 | - | ER25 | 42 | 42 | 150 | 0.80 | 25 | - |
| C25 ER32-080 | C25 | - | ER32 | 50 | 58 | 80 | 0.80 | 25 | - |
| C32 ER32-100 | C32 | - | ER32 | 50 | 58 | 100 | 1.10 | 32 | - |
| C40 ER32-100 | C40 | - | ER32 | 50 | 52 | 100 | 1.30 | 40 | - |
| C32 ER32-150 | C32 | - | ER32 | 50 | 58 | 150 | 1.40 | 32 | - |
| C25 ER40-100 | C25 | - | ER40 | 63 | 60 | 100 | 1.10 | 25 | - |
| C32 ER40-100 | C32 | - | ER40 | 63 | 60 | 100 | 1.30 | 32 | - |
| C40 ER40-100 | C40 | - | ER40 | 63 | 60 | 100 | 1.60 | 40 | - |
| C16 ER11-050M | C16 | - | ER11 | 16 | 15 | 50 | 0.10 | 16 | - |
| C16 ER11-100M | C16 | - | ER11 | 16 | 15 | 100 | 0.20 | 16 | - |
| C16 ER16-050M | C16 | - | ER16 | 22 | 32 | 50 | 0.15 | 16 | - |
| C20 ER16-050M | C20 | - | ER16 | 22 | 32 | 50 | 0.20 | 20 | - |
| C16 ER16-100M | C16 | - | ER16 | 22 | 32 | 100 | 0.20 | 16 | - |
| C20 ER16-100M | C20 | - | ER16 | 22 | 32 | 100 | 0.30 | 20 | - |
| C16 ER16-150M | C16 | - | ER16 | 22 | 32 | 150 | 0.30 | 16 | - |
| C20 ER16-150M | C20 | - | ER16 | 22 | 32 | 150 | 0.40 | 20 | - |
| C20 ER20-050M | C20 | - | ER20 | 28 | 40 | 50 | 0.20 | 20 | - |
| C25 ER20-050M | C25 | - | ER20 | 28 | 40 | 50 | 0.30 | 25 | - |
| C20 ER20-100M | C20 | - | ER20 | 28 | 40 | 100 | 0.35 | 20 | - |
| C25 ER20-100M | C25 | - | ER20 | 28 | 40 | 100 | 0.50 | 25 | - |
| C20 ER20-150M | C20 | - | ER20 | 28 | 40 | 150 | 0.50 | 20 | - |
| C25 ER20-150M | C25 | - | ER20 | 28 | 40 | 150 | 0.60 | 25 | - |
