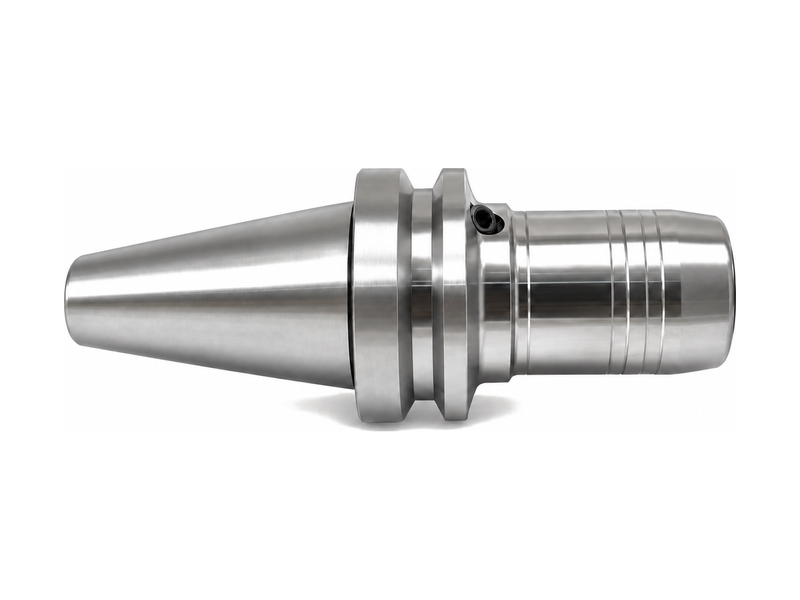

Annway Milling Hydraulic Chuck

AHC Hydraulic Chuck

Name: AHC Hydraulic Chuck
Brand: Annway

AHC Hydraulic Chuck for BT30, BT40 and BT50 mounts, clamping bores d 6–32 mm, 56 catalogue items.

Ask on LINE

Specifications

Sizes & part numbers

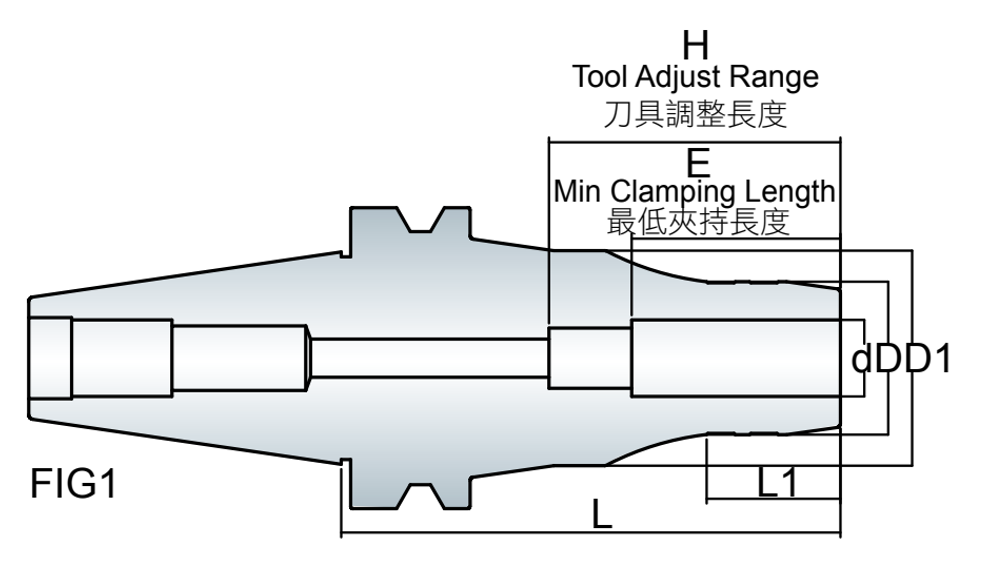

FIG1 🔍 Click to zoom

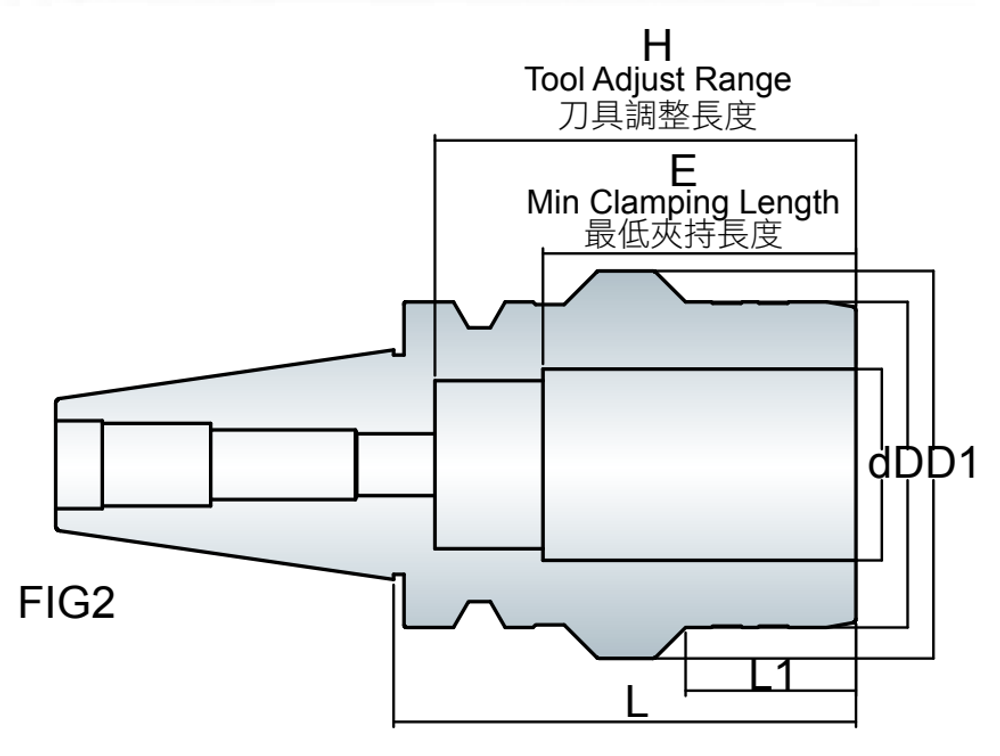

FIG2 🔍 Click to zoom

AHC Hydraulic Chuck specifications
ORDER NO.	MOUNT	CLAMP RANGE d	D	L1	D1	L	Min. clamping length E	Tool adjust range H	WEIGHT (kg)
BT30 AHC06-075	BT30	6	26	19	45	75	28	28-56	0.90
BT30 AHC06-090	BT30	6	26	28	46	90	28	28-56	1.00
BT40 AHC06-090	BT40	6	26	28	45	90	28	28-56	1.50
BT40 AHC06-105	BT40	6	26	28	45	105	28	28-56	1.70
BT50 AHC06-105	BT50	6	26	28	45	105	28	28-56	4.20
BT40 AHC06-135	BT40	6	26	28	45	135	28	28-56	2.20
BT50 AHC06-135	BT50	6	26	28	45	135	28	28-56	4.60
BT50 AHC06-165	BT50	6	26	28	45	165	28	28-56	5.10
BT30 AHC08-075	BT30	8	28	19	45	75	28	28-56	0.90
BT30 AHC08-090	BT30	8	28	28	46	90	28	28-56	1.00
BT40 AHC08-090	BT40	8	28	28	45	90	28	28-56	1.60
BT40 AHC08-105	BT40	8	28	28	45	105	28	28-56	1.80
BT50 AHC08-105	BT50	8	28	28	45	105	28	28-56	4.20
BT40 AHC08-135	BT40	8	28	28	45	135	28	28-56	2.20
BT50 AHC08-135	BT50	8	28	28	45	135	28	28-56	4.60
BT50 AHC08-165	BT50	8	28	28	45	165	28	28-56	5.10
BT30 AHC10-075	BT30	10	30	19	45	75	33	33-56	0.90
BT30 AHC10-090	BT30	10	30	28	46	90	33	33-56	1.00
BT40 AHC10-090	BT40	10	30	28	45	90	33	33-56	1.60
BT40 AHC10-105	BT40	10	30	28	45	105	33	33-56	1.80
BT50 AHC10-105	BT50	10	30	28	45	105	33	33-56	4.20
BT40 AHC10-135	BT40	10	30	28	45	135	33	33-56	2.20
BT50 AHC10-135	BT50	10	30	28	45	135	33	33-56	4.60
BT50 AHC10-165	BT50	10	30	28	45	165	33	33-56	5.10
BT30 AHC12-075	BT30	12	32	19	45	75	38	38-61	0.90
BT30 AHC12-090	BT30	12	32	28	46	90	38	38-61	1.00
BT40 AHC12-090	BT40	12	32	28	45	90	38	38-61	1.60
BT40 AHC12-105	BT40	12	32	28	45	105	38	38-61	1.80
BT50 AHC12-105	BT50	12	32	28	45	105	38	38-61	4.20
BT40 AHC12-135	BT40	12	32	28	45	135	38	38-61	2.20
BT50 AHC12-135	BT50	12	32	28	45	135	38	38-61	4.60
BT50 AHC12-165	BT50	12	32	28	45	165	38	38-61	5.10
BT30 AHC16-090	BT30	16	38	28	46	90	43	43-70	1.10
BT40 AHC16-090	BT40	16	38	28	45	90	43	43-70	1.60
BT40 AHC16-105	BT40	16	38	40	45	105	43	43-70	1.80
BT50 AHC16-105	BT50	16	38	28	47	105	43	43-70	4.20
BT40 AHC16-135	BT40	16	38	40	45	135	43	43-70	2.10
BT50 AHC16-135	BT50	16	38	28	47	135	43	43-70	4.70
BT50 AHC16-165	BT50	16	38	28	47	165	43	43-70	5.20
BT30 AHC20-090	BT30	20	42	37	53	90	43	43-70	1.10
BT40 AHC20-090	BT40	20	42	28	50	90	43	43-70	1.60
BT40 AHC20-105	BT40	20	42	40	50	105	43	43-70	1.90
BT50 AHC20-105	BT50	20	42	46	50	105	43	43-70	4.20
BT40 AHC20-135	BT40	20	42	40	50	135	43	43-70	2.40
BT50 AHC20-135	BT50	20	42	46	50	135	43	43-70	4.80
BT50 AHC20-165	BT50	20	42	46	50	165	43	43-70	5.40
BT40 AHC25-075	BT40	25	55	28	63	75	52	52-79	1.70
BT40 AHC25-090	BT40	25	55	28	63	90	52	52-79	2.00
BT40 AHC32-090	BT40	32	63	33	75	90	56	56-81	2.10
BT50 AHC25-105	BT50	25	63	50	68	105	52	52-79	5.00
BT40 AHC32-110	BT40	32	63	33	75	110	56	56-81	2.60
BT50 AHC25-135	BT50	25	63	50	68	135	52	52-79	5.90
BT50 AHC25-165	BT50	25	63	50	68	165	52	52-79	6.70
BT50 AHC32-105	BT50	32	72	50	78	105	56	56-81	5.30
BT50 AHC32-135	BT50	32	72	50	78	135	56	56-81	6.50
BT50 AHC32-165	BT50	32	72	50	78	165	56	56-81	7.60

You may also need

Product enquiry

Send us the product, size and quantity you need. Our team will respond with the relevant information.

Ask on LINE Select sizes below

AHC Hydraulic Chuck

Sizes & part numbers

No sizes match those filters.

You may also need

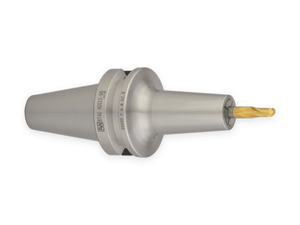

ADS High Speed Collet Chuck
