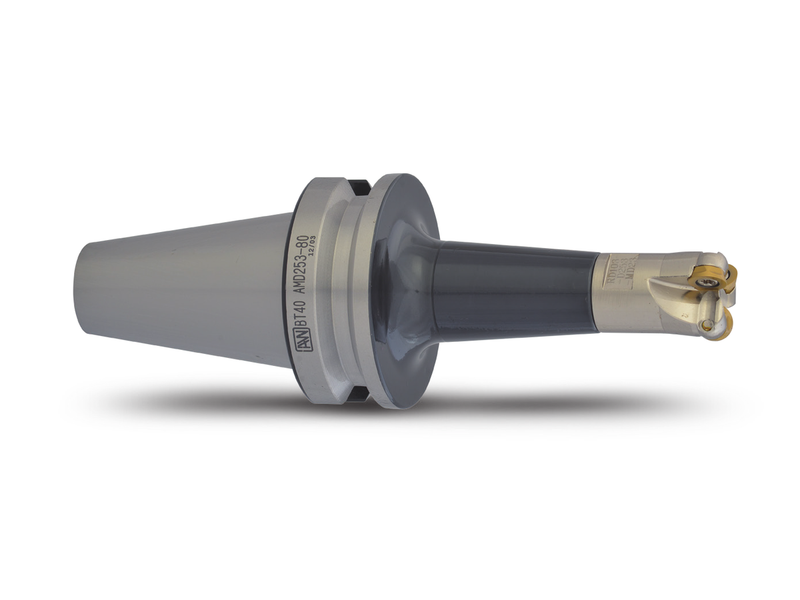

AMD Screw-in Endmill Holder
AMD screw-in endmill holders with BT40 and BT50 mounts for interchangeable milling heads.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
11
13
18
21
29
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

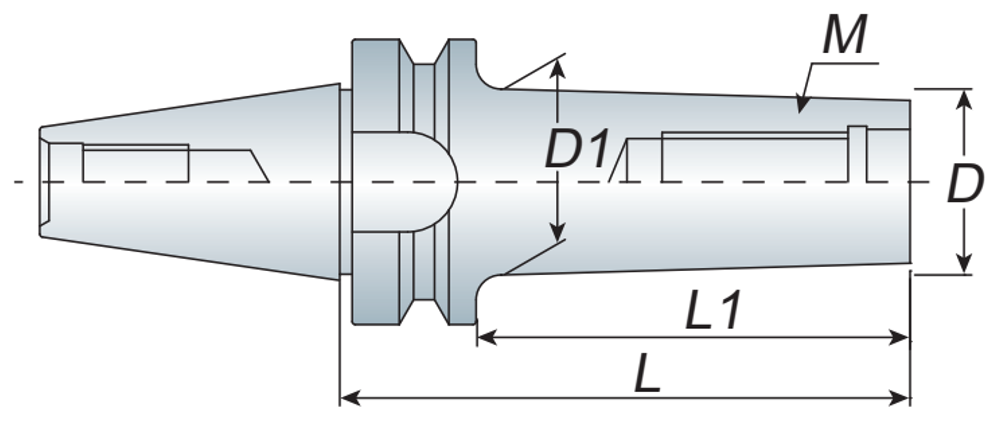

| ORDER NO. | MOUNT | D | L1 | D1 | L | WEIGHT (kg) | SPECS |
|---|---|---|---|---|---|---|---|
| BT40 AMD122-080 | BT40 | 11 | 53 | 12 | 80 | 1.10 | Machine thread: M6 |
| BT40 AMD123-080 | BT40 | 11 | 53 | 12 | 80 | 1.20 | Machine thread: M6 |
| BT40 AMD122-100 | BT40 | 11 | 73 | 12 | 100 | 1.20 | Machine thread: M6 |
| BT50 AMD122-100 | BT50 | 11 | 62 | 12 | 100 | 4.00 | Machine thread: M6 |
| BT50 AMD122-120 | BT50 | 11 | 82 | 12 | 120 | 4.10 | Machine thread: M6 |
| BT40 AMD162-080 | BT40 | 13 | 53 | 16 | 80 | 1.20 | Machine thread: M8 |
| BT40 AMD162-100 | BT40 | 13 | 73 | 16 | 100 | 1.30 | Machine thread: M8 |
| BT50 AMD162-100 | BT50 | 13 | 62 | 16 | 100 | 4.00 | Machine thread: M8 |
| BT50 AMD162-120 | BT50 | 13 | 82 | 16 | 120 | 4.10 | Machine thread: M8 |
| BT40 AMD202-080 | BT40 | 18 | 53 | 20 | 80 | 1.20 | Machine thread: M10 |
| BT40 AMD202-100 | BT40 | 18 | 73 | 20 | 100 | 1.30 | Machine thread: M10 |
| BT50 AMD202-100 | BT50 | 18 | 62 | 20 | 100 | 4.10 | Machine thread: M10 |
| BT50 AMD202-120 | BT50 | 18 | 82 | 20 | 120 | 4.20 | Machine thread: M10 |
| BT40 AMD253-080 | BT40 | 21 | 53 | 25 | 80 | 1.30 | Machine thread: M12 |
| BT40 AMD253-100 | BT40 | 21 | 73 | 25 | 100 | 1.40 | Machine thread: M12 |
| BT50 AMD253-100 | BT50 | 21 | 62 | 25 | 100 | 4.10 | Machine thread: M12 |
| BT50 AMD253-120 | BT50 | 21 | 82 | 25 | 120 | 4.20 | Machine thread: M12 |
| BT40 AMD354-080 | BT40 | 29 | 53 | 35 | 80 | 1.40 | Machine thread: M16 |
| BT40 AMD354-100 | BT40 | 29 | 73 | 35 | 100 | 1.60 | Machine thread: M16 |
| BT50 AMD354-100 | BT50 | 29 | 62 | 35 | 100 | 4.20 | Machine thread: M16 |
| BT50 AMD354-120 | BT50 | 29 | 82 | 35 | 120 | 4.30 | Machine thread: M16 |
