Annway Milling Milling Chuck
SMA Shell Mill Holder

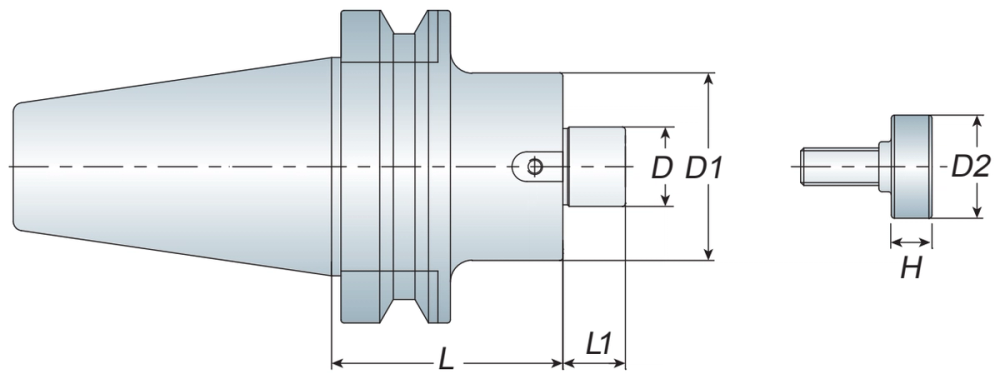

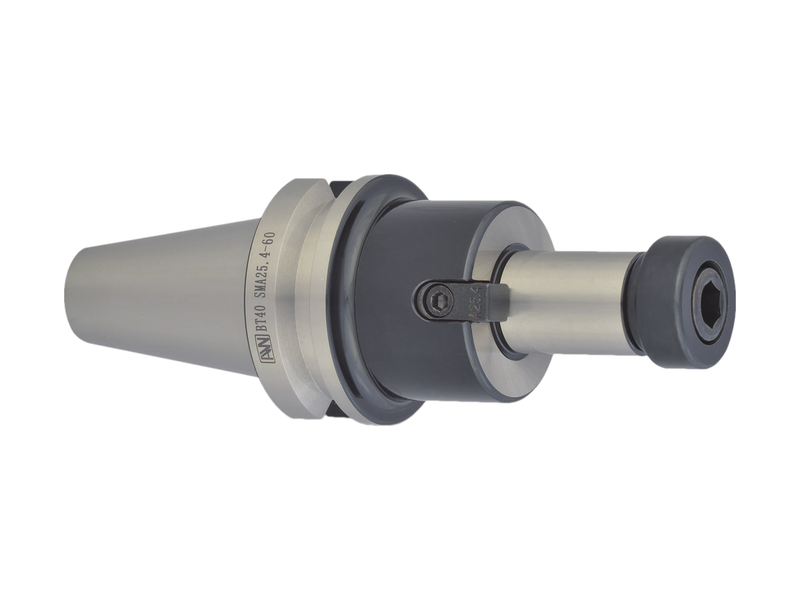

SMA shell mill holders for BT30, BT40 and BT50, with metric and inch-size cutter arbors. Screw and drive keys are included.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
15.875
16
22
22.225
25.4
27
31.75
32
38.1
40
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | MOUNT | D | L1 | D1 | D2 | L | WEIGHT (kg) | SPECS |
|---|---|---|---|---|---|---|---|---|
| BT30 SMA16-045 | BT30 | 16 | 17 | 34 | 20 | 45 | 0.70 | Machine thread: M8 |
| BT40 SMA16-060 | BT40 | 16 | 17 | 34 | 20 | 60 | 1.30 | Machine thread: M8 |
| BT50 SMA16-075 | BT50 | 16 | 17 | 34 | 20 | 75 | 4.00 | Machine thread: M8 |
| BT40 SMA16-120 | BT40 | 16 | 17 | 34 | 20 | 120 | 1.90 | Machine thread: M8 |
| BT50 SMA16-120 | BT50 | 16 | 17 | 34 | 20 | 120 | 4.60 | Machine thread: M8 |
| BT30 SMA22-045 | BT30 | 22 | 27 | 42 | 28 | 45 | 0.80 | Machine thread: M10 |
| BT40 SMA22-060 | BT40 | 22 | 27 | 42 | 28 | 60 | 1.50 | Machine thread: M10 |
| BT50 SMA22-075 | BT50 | 22 | 27 | 42 | 28 | 75 | 4.30 | Machine thread: M10 |
| BT40 SMA22-120 | BT40 | 22 | 27 | 42 | 28 | 120 | 2.10 | Machine thread: M10 |
| BT50 SMA22-120 | BT50 | 22 | 27 | 42 | 28 | 120 | 5.00 | Machine thread: M10 |
| BT40 SMA22-180 | BT40 | 22 | 27 | 42 | 28 | 180 | 2.80 | Machine thread: M10 |
| BT50 SMA22-180 | BT50 | 22 | 27 | 42 | 28 | 180 | 5.50 | Machine thread: M10 |
| BT30 SMA27-045 | BT30 | 27 | 36 | 50 | 33 | 45 | 1.00 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA27-045 | BT40 | 27 | 36 | 50 | 33 | 45 | 1.60 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA27-045 | BT50 | 27 | 36 | 50 | 33 | 45 | 4.30 | Machine thread: M12 · Height H (mm): 13 |
| BT30 SMA27-060 | BT30 | 27 | 36 | 50 | 33 | 60 | 1.30 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA27-060 | BT40 | 27 | 36 | 50 | 33 | 60 | 1.80 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA27-075 | BT50 | 27 | 36 | 50 | 33 | 75 | 4.70 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA27-105 | BT40 | 27 | 36 | 50 | 33 | 105 | 2.60 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA27-105 | BT50 | 27 | 36 | 50 | 33 | 105 | 5.20 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA27-150 | BT40 | 27 | 36 | 50 | 33 | 150 | 3.20 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA27-150 | BT50 | 27 | 36 | 50 | 33 | 150 | 6.00 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA32-045 | BT40 | 32 | 38 | 60 | 40 | 45 | 1.90 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA32-045 | BT50 | 32 | 38 | 60 | 40 | 45 | 4.50 | Machine thread: M12 · Height H (mm): 13.5 |
| BT40 SMA32-060 | BT40 | 32 | 38 | 60 | 40 | 60 | 2.10 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA32-075 | BT50 | 32 | 38 | 60 | 40 | 75 | 5.10 | Machine thread: M12 · Height H (mm): 13.5 |
| BT40 SMA32-090 | BT40 | 32 | 38 | 60 | 40 | 90 | 2.70 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA32-105 | BT50 | 32 | 38 | 60 | 40 | 105 | 5.50 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA40-045 | BT50 | 40 | 38 | 80 | 50 | 45 | 4.50 | Machine thread: M16 · Height H (mm): 15 |
| BT40 SMA40-060 | BT40 | 40 | 38 | 80 | 50 | 60 | 2.60 | Machine thread: M16 · Height H (mm): 15 |
| BT50 SMA40-075 | BT50 | 40 | 38 | 80 | 50 | 75 | 5.60 | Machine thread: M16 · Height H (mm): 15 |
| BT40 SMA40-090 | BT40 | 40 | 38 | 80 | 50 | 90 | 3.20 | Machine thread: M16 · Height H (mm): 15 |
| BT30 SMA15.875-045 | BT30 | 15.875 | 17 | 34 | 20 | 45 | 0.70 | Machine thread: M8 |
| BT40 SMA15.875-060 | BT40 | 15.875 | 17 | 34 | 20 | 60 | 1.30 | Machine thread: M8 |
| BT50 SMA15.875-075 | BT50 | 15.875 | 17 | 34 | 20 | 75 | 4.00 | Machine thread: M8 |
| BT40 SMA15.875-120 | BT40 | 15.875 | 17 | 34 | 20 | 120 | 1.90 | Machine thread: M8 |
| BT50 SMA15.875-120 | BT50 | 15.875 | 17 | 34 | 20 | 120 | 4.60 | Machine thread: M8 |
| BT30 SMA22.225-045 | BT30 | 22.225 | 27 | 42 | 28 | 45 | 0.80 | Machine thread: M10 |
| BT40 SMA22.225-060 | BT40 | 22.225 | 27 | 42 | 28 | 60 | 1.50 | Machine thread: M10 |
| BT50 SMA22.225-075 | BT50 | 22.225 | 27 | 42 | 28 | 75 | 4.30 | Machine thread: M10 |
| BT40 SMA22.225-120 | BT40 | 22.225 | 27 | 42 | 28 | 120 | 2.10 | Machine thread: M10 |
| BT50 SMA22.225-120 | BT50 | 22.225 | 27 | 42 | 28 | 120 | 5.00 | Machine thread: M10 |
| BT40 SMA22.225-180 | BT40 | 22.225 | 27 | 42 | 28 | 180 | 2.80 | Machine thread: M10 |
| BT50 SMA22.225-180 | BT50 | 22.225 | 27 | 42 | 28 | 180 | 5.50 | Machine thread: M10 |
| BT30 SMA25.4-045 | BT30 | 25.4 | 36 | 50 | 33 | 45 | 1.00 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA25.4-045 | BT40 | 25.4 | 36 | 50 | 33 | 45 | 1.60 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA25.4-045 | BT50 | 25.4 | 36 | 50 | 33 | 45 | 4.30 | Machine thread: M12 · Height H (mm): 13 |
| BT30 SMA25.4-060 | BT30 | 25.4 | 36 | 50 | 33 | 60 | 1.30 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA25.4-060 | BT40 | 25.4 | 36 | 50 | 33 | 60 | 1.80 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA25.4-075 | BT50 | 25.4 | 36 | 50 | 33 | 75 | 4.70 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA25.4-105 | BT40 | 25.4 | 36 | 50 | 33 | 105 | 2.60 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA25.4-105 | BT50 | 25.4 | 36 | 50 | 33 | 105 | 5.20 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA25.4-150 | BT40 | 25.4 | 36 | 50 | 33 | 150 | 3.20 | Machine thread: M12 · Height H (mm): 13 |
| BT50 SMA25.4-150 | BT50 | 25.4 | 36 | 50 | 33 | 150 | 6.00 | Machine thread: M12 · Height H (mm): 13 |
| BT40 SMA31.75-045 | BT40 | 31.75 | 38 | 60 | 40 | 45 | 1.90 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA31.75-045 | BT50 | 31.75 | 38 | 60 | 40 | 45 | 4.50 | Machine thread: M12 · Height H (mm): 13.5 |
| BT40 SMA31.75-060 | BT40 | 31.75 | 38 | 60 | 40 | 60 | 2.10 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA31.75-075 | BT50 | 31.75 | 38 | 60 | 40 | 75 | 5.10 | Machine thread: M12 · Height H (mm): 13.5 |
| BT40 SMA31.75-090 | BT40 | 31.75 | 38 | 60 | 40 | 90 | 2.70 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA31.75-105 | BT50 | 31.75 | 38 | 60 | 40 | 105 | 5.50 | Machine thread: M12 · Height H (mm): 13.5 |
| BT50 SMA38.1-045 | BT50 | 38.1 | 38 | 80 | 50 | 45 | 4.50 | Machine thread: M16 · Height H (mm): 15 |
| BT40 SMA38.1-060 | BT40 | 38.1 | 38 | 80 | 50 | 60 | 2.60 | Machine thread: M16 · Height H (mm): 15 |
| BT50 SMA38.1-075 | BT50 | 38.1 | 38 | 80 | 50 | 75 | 5.60 | Machine thread: M16 · Height H (mm): 15 |
| BT40 SMA38.1-090 | BT40 | 38.1 | 38 | 80 | 50 | 90 | 3.20 | Machine thread: M16 · Height H (mm): 15 |
