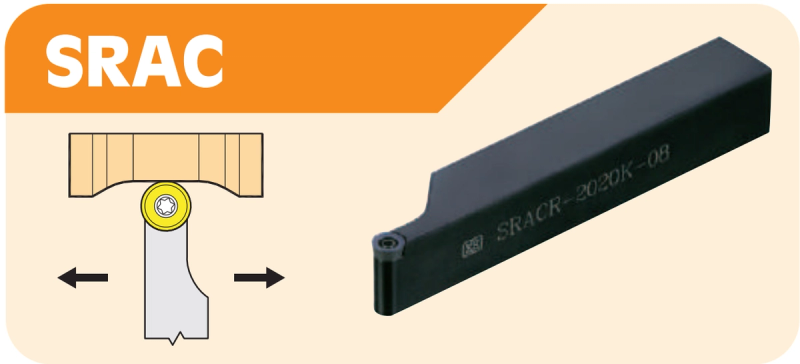

External turning holders for RC.. (RCMT) round inserts
Shangin Turning

External turning holders for RC.. (RCMT) round inserts

Ask on LINE
Specifications

Sizes & part numbers

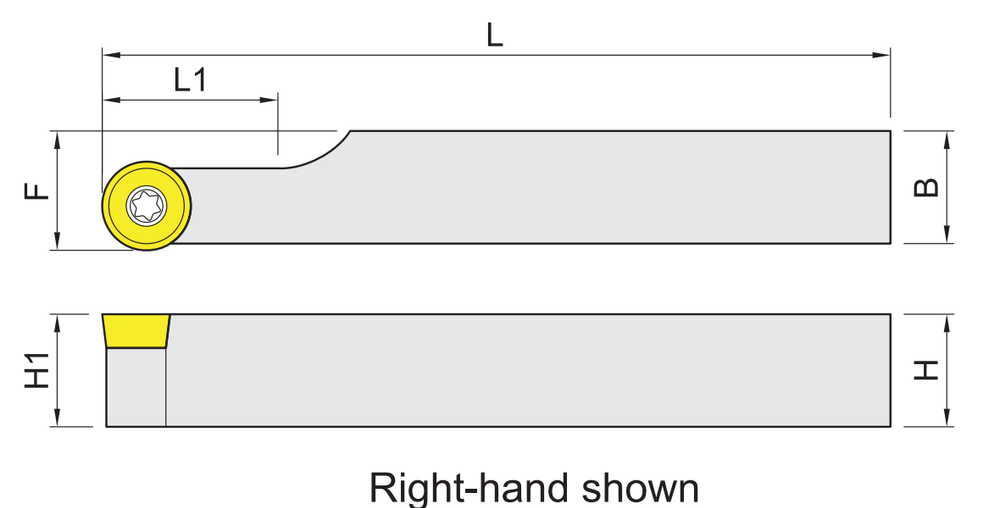

External turning holders for RC.. (RCMT) round inserts dimension diagram 🔍 Click to zoom
ORDER NO.HBOALNECK LACCEPTED INSERT SPECS
SRACR/L-1010H-05 10 10 100 10.5 RC..0502.. Cutting-edge height F: 10.3 · Screw spec: MS2206A · Wrench spec: ETF07
SRACR/L-1212H-05 12 12 100 10.5 RC..0502.. Cutting-edge height F: 12.3 · Screw spec: MS2206A · Wrench spec: ETF07
SRACR/L-1010H-06 10 10 100 11 RC..0602.. Cutting-edge height F: 10.3 · Screw spec: MS2506A · Wrench spec: ETF09
SRACR/L-1212H-06 12 12 100 11 RC..0602.. Cutting-edge height F: 12.3 · Screw spec: MS2506A · Wrench spec: ETF09
SRACR-3.4H-08 9.5 12.7 100 14 RC..0803.. Cutting-edge height F: 13.1 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-1616K-05 16 16 125 10.5 RC..0502.. Cutting-edge height F: 16.3 · Screw spec: MS2206A · Wrench spec: ETF07
SRACR/L-2020K-05 20 20 125 10.5 RC..0502.. Cutting-edge height F: 20.3 · Screw spec: MS2206A · Wrench spec: ETF07
SRACR/L-1616K-06 16 16 125 11 RC..0602.. Cutting-edge height F: 16.3 · Screw spec: MS2506A · Wrench spec: ETF09
SRACR/L-2020K-06 20 20 125 11 RC..0602.. Cutting-edge height F: 20.3 · Screw spec: MS2506A · Wrench spec: ETF09
SRACR/L-1212K-08 12 12 125 14 RC..0803.. Cutting-edge height F: 12.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-1616K-08 16 16 125 14 RC..0803.. Cutting-edge height F: 16.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-2020K-08 20 20 125 15 RC..0803.. Cutting-edge height F: 20.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-1212K-1003 12 12 125 20 RC..1003.. Cutting-edge height F: 12.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-1616K-1003 16 16 125 20 RC..1003.. Cutting-edge height F: 16.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-2020K-1003 20 20 125 20 RC..1003.. Cutting-edge height F: 20.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-2525M-05 25 25 150 10.5 RC..0502.. Cutting-edge height F: 25.3 · Screw spec: MS2206A · Wrench spec: ETF07
SRACR/L-2525M-06 25 25 150 11 RC..0602.. Cutting-edge height F: 25.3 · Screw spec: MS2506A · Wrench spec: ETF09
SRACR/L-2525M-08 25 25 150 15 RC..0803.. Cutting-edge height F: 25.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRACR/L-2525M-1003 25 25 150 20 RC..1003.. Cutting-edge height F: 25.4 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-1010H-05 10 10 100 10.5 RC..0502.. Cutting-edge height F: 5 · Screw spec: MS2206A · Wrench spec: ETF07
SRDCN-3.4H-06 9.5 12.7 100 13 RC..0602.. Cutting-edge height F: 6.35 · Screw spec: MS2506A · Wrench spec: ETF09
SRDCN-1012H-08 10 12 100 12 RC..0803.. Cutting-edge height F: 6 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-1212H-08 12 12 100 12 RC..0803.. Cutting-edge height F: 6 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-1212K-05 12 12 125 10.5 RC..0502.. Cutting-edge height F: 6 · Screw spec: MS2206A · Wrench spec: ETF07
SRDCN-1616K-05 16 16 125 10.5 RC..0502.. Cutting-edge height F: 8 · Screw spec: MS2206A · Wrench spec: ETF07
SRDCN-2020K-05 20 20 125 10.5 RC..0502.. Cutting-edge height F: 10 · Screw spec: MS2206A · Wrench spec: ETF07
SRDCN-1010K-06 10 10 125 12 RC..0602.. Cutting-edge height F: 5 · Screw spec: MS2506A · Wrench spec: ETF09
SRDCN-1212K-06 12 12 125 12 RC..0602.. Cutting-edge height F: 6 · Screw spec: MS2506A · Wrench spec: ETF09
SRDCN-1616K-06 16 16 125 12 RC..0602.. Cutting-edge height F: 8 · Screw spec: MS2506A · Wrench spec: ETF09
SRDCN-2020K-06 20 20 125 12 RC..0602.. Cutting-edge height F: 10 · Screw spec: MS2506A · Wrench spec: ETF09
SRDCN-1212K-08 12 12 125 12 RC..0803.. Cutting-edge height F: 6 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-1616K-08 16 16 125 12 RC..0803.. Cutting-edge height F: 8 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-2020K-08 20 20 125 12 RC..0803.. Cutting-edge height F: 10 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-1212K-1003 12 12 125 20 RC..1003.. Cutting-edge height F: 6 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-1616K-1003 16 16 125 20 RC..1003.. Cutting-edge height F: 8 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-2020K-1003 20 20 125 20 RC..1003.. Cutting-edge height F: 10 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-2525M-05 25 25 150 10.5 RC..0502.. Cutting-edge height F: 12.5 · Screw spec: MS2206A · Wrench spec: ETF07
SRDCN-2525M-06 25 25 150 12 RC..0602.. Cutting-edge height F: 12.5 · Screw spec: MS2506A · Wrench spec: ETF09
SRDCN-2525M-08 25 25 150 12 RC..0803.. Cutting-edge height F: 12.5 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-2525M-1003 25 25 150 20 RC..1003.. Cutting-edge height F: 12.5 · Screw spec: MS3008A · Wrench spec: ETF09
SRDCN-3232P-1003 32 32 170 20 RC..1003.. Cutting-edge height F: 16 · Screw spec: MS3008A · Wrench spec: ETF09
SRGCR-10.4H-08 10 12.7 100 - RC..0803.. Cutting-edge height F: 16 · Screw spec: MS3008A · Wrench spec: ETF09
SRGCR/L-1212K-06 12 12 125 - RC..0602.. Cutting-edge height F: 16 · Screw spec: MS2506A · Wrench spec: ETF09
SRGCR/L-1616K-06 16 16 125 - RC..0602.. Cutting-edge height F: 20 · Screw spec: MS2506A · Wrench spec: ETF09
SRGCR/L-2020K-06 20 20 125 - RC..0602.. Cutting-edge height F: 25 · Screw spec: MS2506A · Wrench spec: ETF09
SRGCR/L-1616K-08 16 16 125 - RC..0803.. Cutting-edge height F: 20 · Screw spec: MS3008A · Wrench spec: ETF09
SRGCR/L-2020K-08 20 20 125 - RC..0803.. Cutting-edge height F: 25 · Screw spec: MS3008A · Wrench spec: ETF09
SRGCR/L-2525M-06 25 25 150 - RC..0602.. Cutting-edge height F: 32 · Screw spec: MS2506A · Wrench spec: ETF09
SRGCR/L-2525M-08 25 25 150 - RC..0803.. Cutting-edge height F: 32 · Screw spec: MS3008A · Wrench spec: ETF09

H = shank height · B = shank width
