Specifications
Sizes & part numbers
🔍 Click to zoom 20
25
32
Dry
Thru-coolant
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →

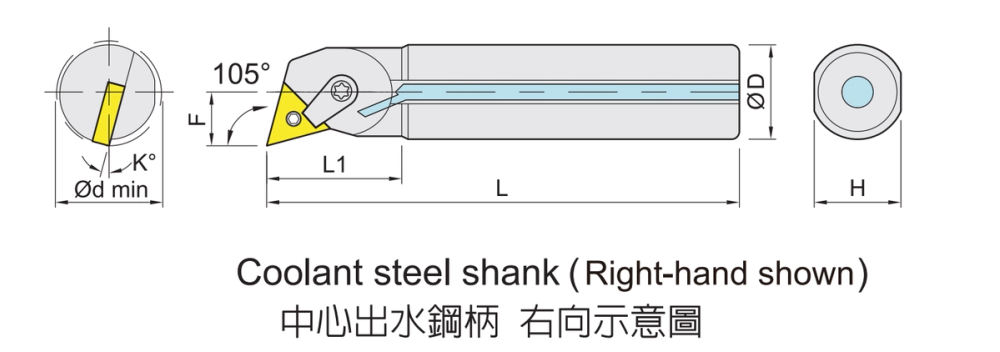

| ORDER NO. | D | OAL | NECK L | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|

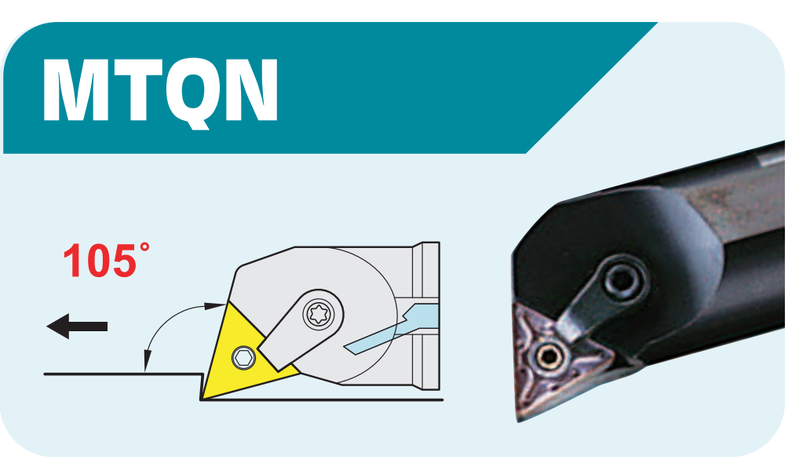

| S20R-MTQNR/L-16 | 20 mm | 200 | 40 | TN..1604.. | Dry · Cutting-edge height F: 13 · Min machinable bore: 25 · Screw spec: MS520TX · Wrench spec: ETL10 |
| A20R-MTQNR/L-16 | 20 mm | 200 | 40 | TN..1604.. | Thru-coolant · Cutting-edge height F: 13 · Min machinable bore: 25 · Screw spec: MS520TX · Wrench spec: ETL10 |
| S25R-MTQNR/L-16 | 25 mm | 200 | 40 | TN..1604.. | Dry · Cutting-edge height F: 15 · Min machinable bore: 30 · Screw spec: MS520TX · Wrench spec: ETL10 |
| A25R-MTQNR/L-16 | 25 mm | 200 | 40 | TN..1604.. | Thru-coolant · Cutting-edge height F: 15 · Min machinable bore: 30 · Screw spec: MS520TX · Wrench spec: ETL10 |
| S32S-MTQNR/L-16 | 32 mm | 250 | 48 | TN..1604.. | Dry · Cutting-edge height F: 20 · Min machinable bore: 40 · Screw spec: MS625TX · Wrench spec: ETL15 |
| A32S-MTQNR/L-16 | 32 mm | 250 | 48 | TN..1604.. | Thru-coolant · Cutting-edge height F: 20 · Min machinable bore: 40 · Screw spec: MS625TX · Wrench spec: ETL15 |
| S20R-MTWNR/L-16 | 20 mm | 200 | 40 | TN..1604.. | Dry · Cutting-edge height F: 13.5 · Min machinable bore: 27 · Screw spec: MS520TX · Wrench spec: ETL10 |
| A20R-MTWNR-16 | 20 mm | 200 | 40 | TN..1604.. | Thru-coolant · Cutting-edge height F: 13.5 · Min machinable bore: 27 · Screw spec: MS520TX · Wrench spec: ETL10 |
| S25R-MTWNR/L-16 | 25 mm | 200 | 40 | TN..1604.. | Dry · Cutting-edge height F: 16 · Min machinable bore: 32 · Screw spec: MS520TX · Wrench spec: ETL10 |
| A25R-MTWNR/L-16 | 25 mm | 200 | 40 | TN..1604.. | Thru-coolant · Cutting-edge height F: 16 · Min machinable bore: 32 · Screw spec: MS520TX · Wrench spec: ETL10 |
| S32S-MTWNR/L-16 | 32 mm | 250 | 48 | TN..1604.. | Dry · Cutting-edge height F: 20 · Min machinable bore: 40 · Screw spec: MS625TX · Wrench spec: ETL15 |
| A32S-MTWNR/L-16 | 32 mm | 250 | 48 | TN..1604.. | Thru-coolant · Cutting-edge height F: 20 · Min machinable bore: 40 · Screw spec: MS625TX · Wrench spec: ETL15 |
