Specifications
Sizes & part numbers
🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | H | B | OAL | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|

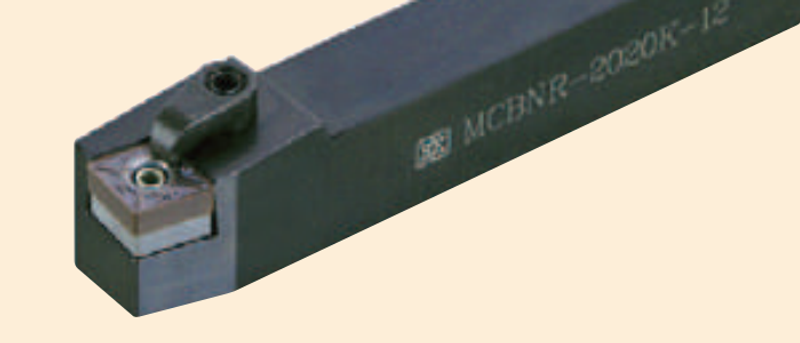

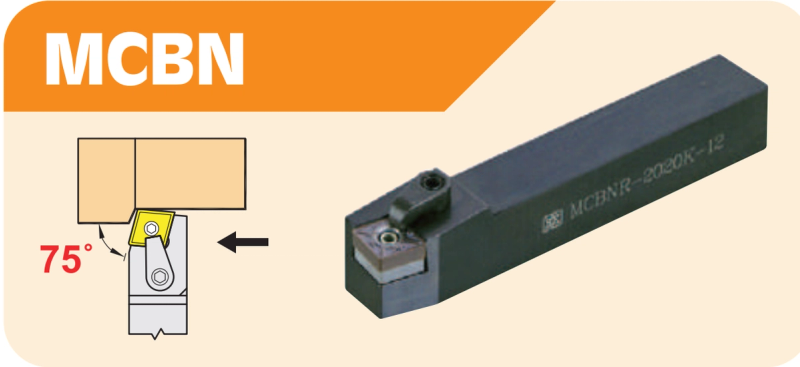

| MCBNR/L-1616K-12 | 16 | 16 | 125 | CN..1204.. | Cutting-edge height F: 13 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCBNR/L-2020K-12 | 20 | 20 | 125 | CN..1204.. | Cutting-edge height F: 17 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCBNR/L-2525M-12 | 25 | 25 | 150 | CN..1204.. | Cutting-edge height F: 22 · Screw spec: MS630TX · Wrench spec: PL25 |
| MCBNR/L-3232P-12 | 32 | 32 | 170 | CN..1204.. | Cutting-edge height F: 29 · Screw spec: MS630TX · Wrench spec: PL25 |
| MCKNR/L-1616K-12 | 16 | 16 | 125 | CN..1204.. | Cutting-edge height F: 20 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCKNR/L-2020K-12 | 20 | 20 | 125 | CN..1204.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCKNR/L-2525M-12 | 25 | 25 | 150 | CN..1204.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL25 |
| MCKNR/L-3232P-12 | 32 | 32 | 170 | CN..1204.. | Cutting-edge height F: 40 · Screw spec: MS630TX · Wrench spec: PL25 |
| DCLNR/L-1616K-12 | 16 | 16 | 125 | CN..1204.. | Cutting-edge height F: 20 · Screw spec: MS6011H |
| DCLNR/L-2020K-12 | 20 | 20 | 125 | CN..1204.. | Cutting-edge height F: 25 · Screw spec: MS6011H |
| DCLNR/L-2525M-12 | 25 | 25 | 150 | CN..1204.. | Cutting-edge height F: 32 · Screw spec: MS6011H |
| DCLNR/L-3232P-12 | 32 | 32 | 170 | CN..1204.. | Cutting-edge height F: 40 · Screw spec: MS6011H |
| MCLNR/L-1616K-12 | 16 | 16 | 125 | CN..1204.. | Cutting-edge height F: 20 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCLNR/L-2020K-12 | 20 | 20 | 125 | CN..1204.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCLNR/L-2525M-12 | 25 | 25 | 150 | CN..1204.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL25 |
| MCLNR/L-3232P-12 | 32 | 32 | 170 | CN..1204.. | Cutting-edge height F: 40 · Screw spec: MS630TX · Wrench spec: PL25 |
| PCLNR/L-2020K-12 | 20 | 20 | 125 | CN..1204.. | Cutting-edge height F: 25 · Screw spec: LCS4 |
| PCLNR/L-2525M-12 | 25 | 25 | 150 | CN..1204.. | Cutting-edge height F: 32 · Screw spec: LCS4 |
| PCLNR/L-3232P-12 | 32 | 32 | 170 | CN..1204.. | Cutting-edge height F: 40 · Screw spec: LCS4 |
| MCNNN-1616K-12 | 16 | 16 | 125 | CN..1204.. | Cutting-edge height F: 8 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCNNN-2020K-12 | 20 | 20 | 125 | CN..1204.. | Cutting-edge height F: 10 · Screw spec: MS625TX · Wrench spec: PL25 |
| MCNNN-2525M-12 | 25 | 25 | 150 | CN..1204.. | Cutting-edge height F: 12.5 · Screw spec: MS630TX · Wrench spec: PL25 |
| MCNNN-3232P-12 | 32 | 32 | 170 | CN..1204.. | Cutting-edge height F: 16 · Screw spec: MS630TX · Wrench spec: PL25 |

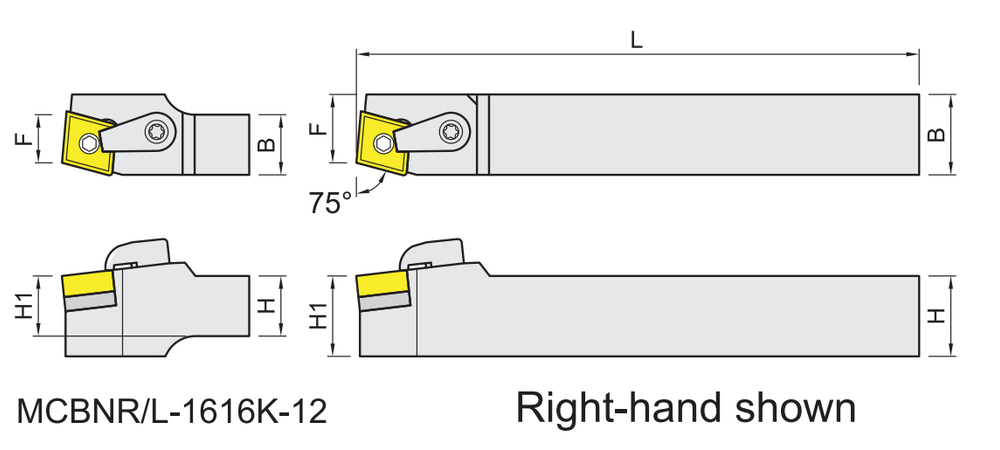

H = shank height · B = shank width
