External turning holders for CC../CP.. (CCMT/CCGT/CPMT/CPGT) inserts
Shangin Turning

External turning holders for CC../CP.. (CCMT/CCGT/CPMT/CPGT) inserts

Ask on LINE
Specifications

Sizes & part numbers

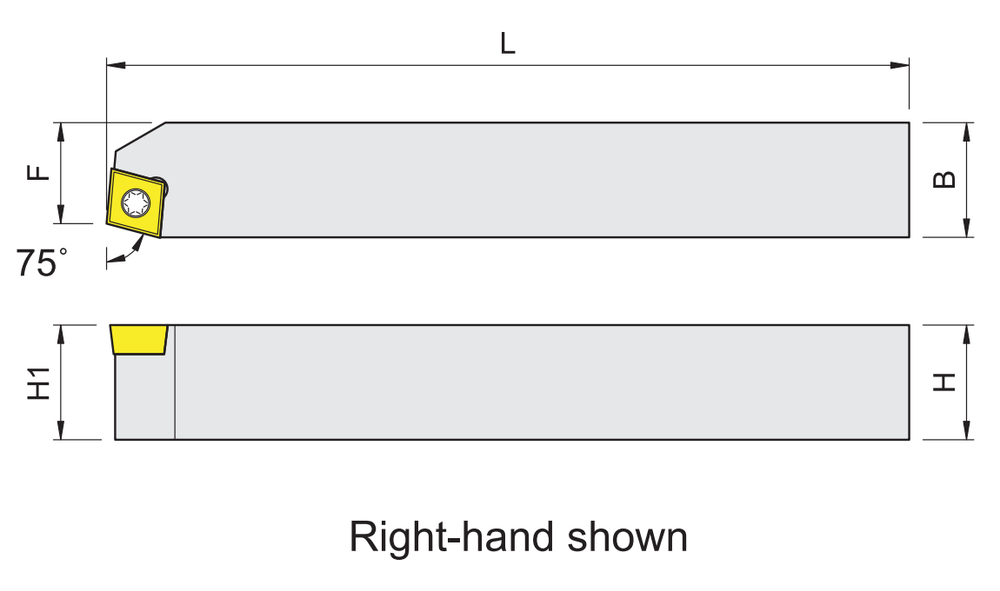

External turning holders for CC../CP.. (CCMT/CCGT/CPMT/CPGT) inserts dimension diagram 🔍 Click to zoom
ORDER NO.HBOALACCEPTED INSERT SPECS
SCBCR/L-1616K-09 16 16 125 CC..09T3.. Cutting-edge height F: 13.5 · Screw spec: MS4011A · Wrench spec: ETF15
SCBCR/L-2020K-09 20 20 125 CC..09T3.. Cutting-edge height F: 17.5 · Screw spec: MS4011A · Wrench spec: ETF15
SCBCR/L-2525M-09 25 25 150 CC..09T3.. Cutting-edge height F: 22.5 · Screw spec: MS4011A · Wrench spec: ETF15
SCKCR/L-1212K-09 12 12 125 CC..09T3.. Cutting-edge height F: 16 · Screw spec: MS4011A · Wrench spec: ETF15
SCKCR/L-1616K-09 16 16 125 CC..09T3.. Cutting-edge height F: 20 · Screw spec: MS4011A · Wrench spec: ETF15
SCKCR/L-2020K-09 20 20 125 CC..09T3.. Cutting-edge height F: 25 · Screw spec: MS4011A · Wrench spec: ETF15
SCKCR/L-2525M-09 25 25 150 CC..09T3.. Cutting-edge height F: 32 · Screw spec: MS4011A · Wrench spec: ETF15
SCLCR/L-1010H-06 10 10 100 CC..0602.. Cutting-edge height F: 12 · Screw spec: MS2506A · Wrench spec: ETF09
SCLCR/L-1212H-09 12 12 100 CC..09T3.. Cutting-edge height F: 16 · Screw spec: MS4011A · Wrench spec: ETF15
SCLCR/L-1010K-06 10 10 125 CC..0602.. Cutting-edge height F: 12 · Screw spec: MS2506A · Wrench spec: ETF09
SCLCR/L-1212K-09 12 12 125 CC..09T3.. Cutting-edge height F: 16 · Screw spec: MS4011A · Wrench spec: ETF15
SCLCR/L-1616K-09 16 16 125 CC..09T3.. Cutting-edge height F: 20 · Screw spec: MS4011A · Wrench spec: ETF15
SCLCR/L-2020K-09 20 20 125 CC..09T3.. Cutting-edge height F: 25 · Screw spec: MS4011A · Wrench spec: ETF15
SCLCR/L-2020K-12 20 20 125 CC..1204.. Cutting-edge height F: 25 · Screw spec: MS5011A · Wrench spec: ETF20
SCLCR/L-2525M-09 25 25 150 CC..09T3.. Cutting-edge height F: 32 · Screw spec: MS4011A · Wrench spec: ETF15
SCLCR/L-2525M-12 25 25 150 CC..1204.. Cutting-edge height F: 32 · Screw spec: MS5011A · Wrench spec: ETF20
SCLCR/L-3232P-12 32 32 170 CC..1204.. Cutting-edge height F: 40 · Screw spec: MS5011A · Wrench spec: ETF20
SCL2CR/L-0808H-06 8 8 100 CC..0602.. Cutting-edge height F: 8 · Screw spec: MS2506A · Wrench spec: ETF09
SCL2CR/L-1010H-06 10 10 100 CC..0602.. Cutting-edge height F: 10 · Screw spec: MS2506A · Wrench spec: ETF09
SCL2CR/L-1212H-09 12 12 100 CC..09T3.. Cutting-edge height F: 12 · Screw spec: MS4011A · Wrench spec: ETF15
SCL2CR/L-1616K-09 16 16 125 CC..09T3.. Cutting-edge height F: 16 · Screw spec: MS4011A · Wrench spec: ETF15
SCL2CR/L-2020K-09 20 20 125 CC..09T3.. Cutting-edge height F: 20 · Screw spec: MS4011A · Wrench spec: ETF15
SCL2CR/L-2525M-09 25 25 150 CC..09T3.. Cutting-edge height F: 25 · Screw spec: MS4011A · Wrench spec: ETF15
SCNCN-1212H-09 12 12 100 CC..09T3.. Cutting-edge height F: 6 · Screw spec: MS4011A · Wrench spec: ETF15
SCNCN-1616K-06 16 16 125 CC..0602.. Cutting-edge height F: 8 · Screw spec: MS2506A · Wrench spec: ETF09
SCNCN-1212K-09 12 12 125 CC..09T3.. Cutting-edge height F: 6 · Screw spec: MS4011A · Wrench spec: ETF15
SCNCN-1616K-09 16 16 125 CC..09T3.. Cutting-edge height F: 8 · Screw spec: MS4011A · Wrench spec: ETF15
SCNCN-2020K-09 20 20 125 CC..09T3.. Cutting-edge height F: 10 · Screw spec: MS4011A · Wrench spec: ETF15
SCNCN-1616K-12 16 16 125 CC..1204.. Cutting-edge height F: 8 · Screw spec: MS5011A · Wrench spec: ETF20
SCNCN-2020K-12 20 20 125 CC..1204.. Cutting-edge height F: 10 · Screw spec: MS5011A · Wrench spec: ETF20
SCNCN-2525M-09 25 25 150 CC..09T3.. Cutting-edge height F: 12.5 · Screw spec: MS4011A · Wrench spec: ETF15
SCNCN-2525M-12 25 25 150 CC..1204.. Cutting-edge height F: 12.5 · Screw spec: MS5011A · Wrench spec: ETF20
SCNPN-1212K-09 12 12 125 CP..0903.. Cutting-edge height F: 6 · Screw spec: MS4011A · Wrench spec: ETF15
SCNPN-1616K-09 16 16 125 CP..0903.. Cutting-edge height F: 8 · Screw spec: MS4011A · Wrench spec: ETF15
SCNPN-2020K-09 20 20 125 CP..0903.. Cutting-edge height F: 10 · Screw spec: MS4011A · Wrench spec: ETF15
SCNPN-2525M-09 25 25 150 CP..0903.. Cutting-edge height F: 12.5 · Screw spec: MS4011A · Wrench spec: ETF15

H = shank height · B = shank width
