Specifications
Sizes & part numbers
🔍 Click to zoom 20
25
32
40
50
60
Dry
Thru-coolant
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →

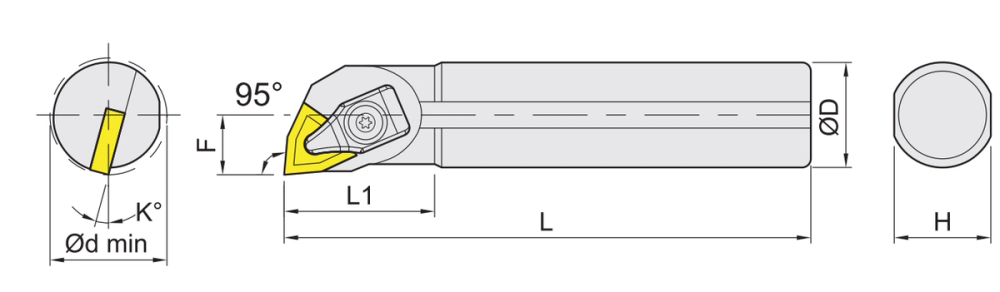

| ORDER NO. | D | OAL | NECK L | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|

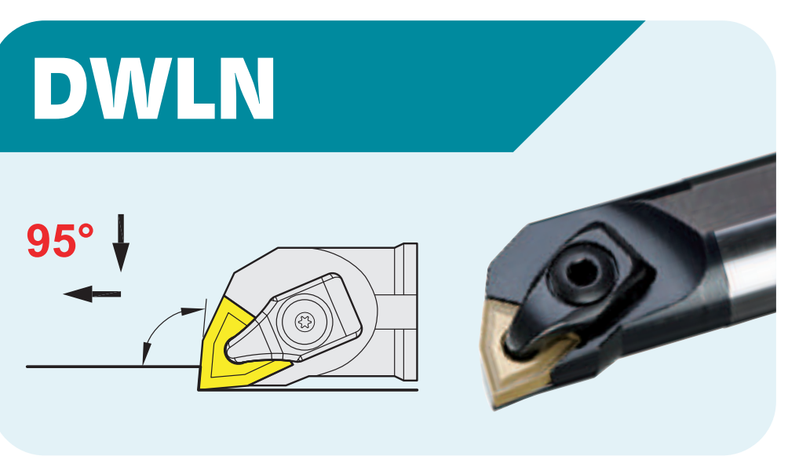

| S20R-DWLNR/L-08 | 20 mm | 200 | 40 | WN..0804.. | Dry · Cutting-edge height F: 14 · Min machinable bore: 28 |
| S25R-DWLNR/L-08 | 25 mm | 200 | 40 | WN..0804.. | Dry · Cutting-edge height F: 15 · Min machinable bore: 30 |
| S32S-DWLNR/L-08 | 32 mm | 250 | 48 | WN..0804.. | Dry · Cutting-edge height F: 19.5 · Min machinable bore: 40 · Screw spec: MS6011H |
| S40T-DWLNR/L-08 | 40 mm | 300 | 55 | WN..0804.. | Dry · Cutting-edge height F: 25.5 · Min machinable bore: 50 · Screw spec: MS6011H |
| S20R-MWLNR/L-08 | 20 mm | 200 | 40 | WN..0804.. | Dry · Cutting-edge height F: 13 · Min machinable bore: 25 · Screw spec: MS520TX · Wrench spec: ETL10 |
| A20R-MWLNR/L-08 | 20 mm | 200 | 40 | WN..0804.. | Thru-coolant · Cutting-edge height F: 13 · Min machinable bore: 25 · Screw spec: MS520TX · Wrench spec: ETL10 |
| S25R-MWLNR/L-08 | 25 mm | 200 | 40 | WN..0804.. | Dry · Cutting-edge height F: 15 · Min machinable bore: 30 · Screw spec: MS520TX · Wrench spec: ETL10 |
| A25R-MWLNR/L-08 | 25 mm | 200 | 40 | WN..0804.. | Thru-coolant · Cutting-edge height F: 15 · Min machinable bore: 30 · Screw spec: MS520TX · Wrench spec: ETL10 |
| S32S-MWLNR/L-08 | 32 mm | 250 | 48 | WN..0804.. | Dry · Cutting-edge height F: 20 · Min machinable bore: 40 · Screw spec: MS520TX · Wrench spec: ETL10 |
| A32S-MWLNR/L-08 | 32 mm | 250 | 48 | WN..0804.. | Thru-coolant · Cutting-edge height F: 20 · Min machinable bore: 40 · Screw spec: MS520TX · Wrench spec: ETL10 |
| S40T-MWLNR/L-08 | 40 mm | 300 | 55 | WN..0804.. | Dry · Cutting-edge height F: 25.5 · Min machinable bore: 50 · Screw spec: MS625TX · Wrench spec: ETL15 |
| A40T-MWLNR/L-08 | 40 mm | 300 | 55 | WN..0804.. | Thru-coolant · Cutting-edge height F: 25.5 · Min machinable bore: 50 · Screw spec: MS625TX · Wrench spec: ETL15 |
| S50U-MWLNR/L-08 | 50 mm | 350 | 60 | WN..0804.. | Dry · Cutting-edge height F: 30.5 · Min machinable bore: 60 · Screw spec: MS625TX · Wrench spec: ETL15 |
| S50V-MWLNR/L-08 | 50 mm | 400 | 60 | WN..0804.. | Dry · Cutting-edge height F: 30.5 · Min machinable bore: 60 · Screw spec: MS625TX · Wrench spec: ETL15 |
| A50V-MWLNR/L-08 | 50 mm | 400 | 60 | WN..0804.. | Thru-coolant · Cutting-edge height F: 30.5 · Min machinable bore: 60 · Screw spec: MS625TX · Wrench spec: ETL15 |
| S60V-MWLNR/L-08 | 60 mm | 400 | 60 | WN..0804.. | Dry · Cutting-edge height F: 35.5 · Min machinable bore: 70 · Screw spec: MS625TX · Wrench spec: ETL15 |
| A60V-MWLNR/L-08 | 60 mm | 400 | 60 | WN..0804.. | Thru-coolant · Cutting-edge height F: 35.5 · Min machinable bore: 70 · Screw spec: MS625TX · Wrench spec: ETL15 |
