SCA Side Cutter Holder
BT, NT, and C straight-shank SCA side cutter holder configurations.
Specifications
Sizes & part numbers

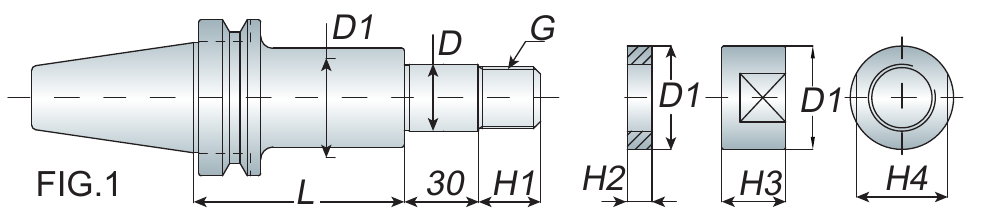

BT FIG.1 🔍 Click to zoom

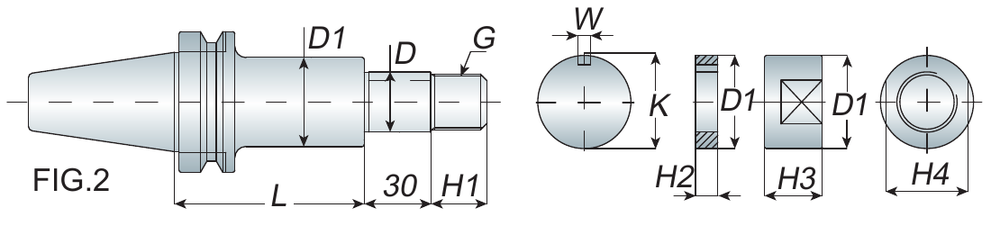

BT FIG.2 🔍 Click to zoom

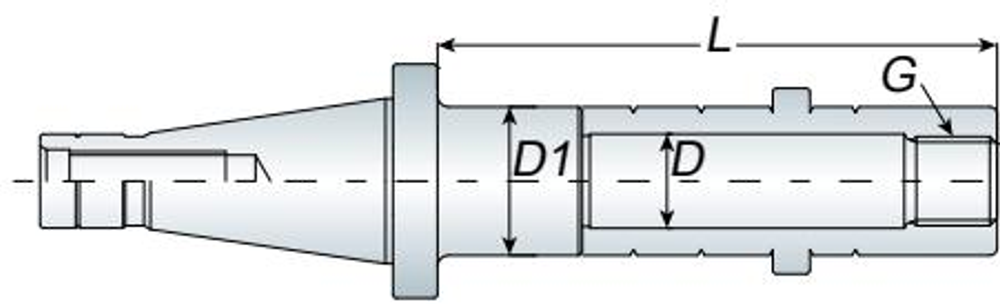

NT 🔍 Click to zoom

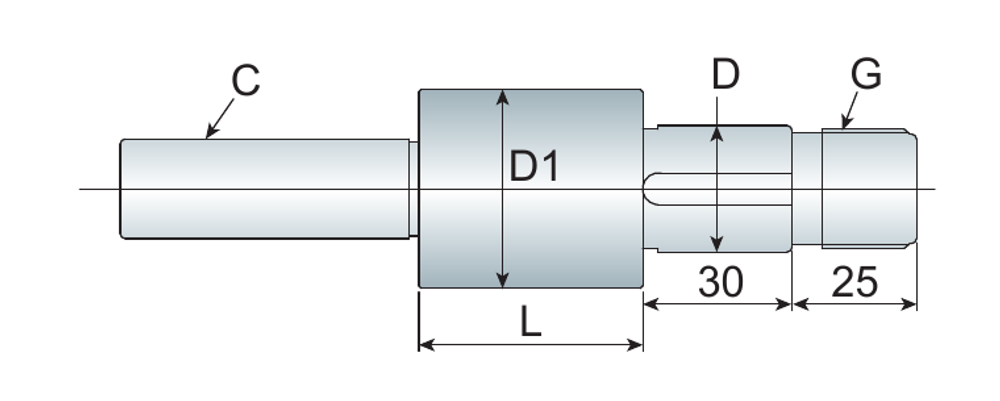

C Straight Shank 🔍 Click to zoom Filtered from catalog
12.7
13
15.875
16
22
22.225
25.4
27
31.75
32
38.1
40
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | MOUNT | D | D1 | L | WEIGHT (kg) | SPECS |
|---|---|---|---|---|---|---|
| BT40 SCA12.7-060 | BT40 | 12.7 | 20 | 60 | 1.10 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT50 SCA12.7-075 | BT50 | 12.7 | 20 | 75 | 4.10 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT40 SCA12.7-090 | BT40 | 12.7 | 20 | 90 | 1.40 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT50 SCA12.7-105 | BT50 | 12.7 | 20 | 105 | 4.30 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT30 SCA13-060 | BT30 | 13 | 20 | 60 | 0.70 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT40 SCA13-060 | BT40 | 13 | 20 | 60 | 1.10 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT50 SCA13-075 | BT50 | 13 | 20 | 75 | 4.10 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT30 SCA13-090 | BT30 | 13 | 20 | 90 | 1.00 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT40 SCA13-090 | BT40 | 13 | 20 | 90 | 1.40 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT50 SCA13-105 | BT50 | 13 | 20 | 105 | 4.30 | Machine thread: M12x1.75P · H1 (mm): 15 · H3 (mm): 12 · H4 (mm): 17 |
| BT40 SCA15.875-075 | BT40 | 15.875 | 26 | 75 | 1.50 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.42 · Width W (mm): 3.18 |
| BT50 SCA15.875-090 | BT50 | 15.875 | 26 | 90 | 4.20 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.42 · Width W (mm): 3.18 |
| BT40 SCA15.875-105 | BT40 | 15.875 | 26 | 105 | 1.60 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.42 · Width W (mm): 3.18 |
| BT50 SCA15.875-120 | BT50 | 15.875 | 26 | 120 | 4.50 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.42 · Width W (mm): 3.18 |
| BT30 SCA16-075 | BT30 | 16 | 26 | 75 | 0.90 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.2 · Width W (mm): 4 |
| BT40 SCA16-075 | BT40 | 16 | 26 | 75 | 1.50 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.2 · Width W (mm): 4 |
| BT50 SCA16-090 | BT50 | 16 | 26 | 90 | 4.10 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.2 · Width W (mm): 4 |
| BT30 SCA16-105 | BT30 | 16 | 26 | 105 | 1.10 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.2 · Width W (mm): 4 |
| BT40 SCA16-105 | BT40 | 16 | 26 | 105 | 1.60 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.2 · Width W (mm): 4 |
| BT50 SCA16-120 | BT50 | 16 | 26 | 120 | 4.40 | Machine thread: M16x1.5P · H1 (mm): 16 · H3 (mm): 13 · H4 (mm): 22 · K (mm): 17.2 · Width W (mm): 4 |
| BT30 SCA22-075 | BT30 | 22 | 34 | 75 | 1.30 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.6 · Width W (mm): 6 |
| BT40 SCA22-075 | BT40 | 22 | 34 | 75 | 1.90 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.6 · Width W (mm): 6 |
| BT50 SCA22-090 | BT50 | 22 | 34 | 90 | 4.60 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.6 · Width W (mm): 6 |
| BT30 SCA22-120 | BT30 | 22 | 34 | 120 | 1.30 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.6 · Width W (mm): 6 |
| BT40 SCA22-120 | BT40 | 22 | 34 | 120 | 2.20 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.6 · Width W (mm): 6 |
| BT50 SCA22-135 | BT50 | 22 | 34 | 135 | 5.00 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.6 · Width W (mm): 6 |
| BT40 SCA22.225-075 | BT40 | 22.225 | 34 | 75 | 1.90 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.82 · Width W (mm): 3.18 |
| BT50 SCA22.225-090 | BT50 | 22.225 | 34 | 90 | 4.60 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.82 · Width W (mm): 3.18 |
| BT40 SCA22.225-120 | BT40 | 22.225 | 34 | 120 | 2.20 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.82 · Width W (mm): 3.18 |
| BT50 SCA22.225-135 | BT50 | 22.225 | 34 | 135 | 5.00 | Machine thread: M22x1.5P · H1 (mm): 21 · H3 (mm): 18 · H4 (mm): 30 · K (mm): 23.82 · Width W (mm): 3.18 |
| BT30 SCA25.4-075 | BT30 | 25.4 | 40 | 75 | 1.30 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 27.78 · Width W (mm): 6.35 |
| BT40 SCA25.4-075 | BT40 | 25.4 | 40 | 75 | 2.00 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 27.78 · Width W (mm): 6.35 |
| BT50 SCA25.4-090 | BT50 | 25.4 | 40 | 90 | 5.00 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 27.78 · Width W (mm): 6.35 |
| BT40 SCA25.4-120 | BT40 | 25.4 | 40 | 120 | 2.50 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 27.78 · Width W (mm): 6.35 |
| BT50 SCA25.4-135 | BT50 | 25.4 | 40 | 135 | 5.50 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 27.78 · Width W (mm): 6.35 |
| BT40 SCA27-075 | BT40 | 27 | 40 | 75 | 2.00 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 29 · Width W (mm): 7 |
| BT50 SCA27-090 | BT50 | 27 | 40 | 90 | 5.00 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 29 · Width W (mm): 7 |
| BT40 SCA27-120 | BT40 | 27 | 40 | 120 | 2.60 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 29 · Width W (mm): 7 |
| BT50 SCA27-135 | BT50 | 27 | 40 | 135 | 5.50 | Machine thread: M25x1.5P · H1 (mm): 25 · H3 (mm): 21 · H4 (mm): 32 · K (mm): 29 · Width W (mm): 7 |
| BT40 SCA31.75-090 | BT40 | 31.75 | 46 | 90 | 2.70 | Machine thread: M31x2.0P · H1 (mm): 30 · H3 (mm): 26 · H4 (mm): 41 · K (mm): 34.92 · Width W (mm): 7.92 |
| BT50 SCA31.75-090 | BT50 | 31.75 | 46 | 90 | 5.40 | Machine thread: M31x2.0P · H1 (mm): 30 · H3 (mm): 26 · H4 (mm): 41 · K (mm): 34.92 · Width W (mm): 7.92 |
| BT50 SCA31.75-135 | BT50 | 31.75 | 46 | 135 | 6.10 | Machine thread: M31x2.0P · H1 (mm): 30 · H3 (mm): 26 · H4 (mm): 41 · K (mm): 34.92 · Width W (mm): 7.92 |
| BT40 SCA32-090 | BT40 | 32 | 46 | 90 | 2.70 | Machine thread: M31x2.0P · H1 (mm): 30 · H3 (mm): 26 · H4 (mm): 41 · K (mm): 34 · Width W (mm): 8 |
| BT50 SCA32-090 | BT50 | 32 | 46 | 90 | 5.40 | Machine thread: M31x2.0P · H1 (mm): 30 · H3 (mm): 26 · H4 (mm): 41 · K (mm): 34 · Width W (mm): 8 |
| BT50 SCA32-135 | BT50 | 32 | 46 | 135 | 6.10 | Machine thread: M31x2.0P · H1 (mm): 30 · H3 (mm): 26 · H4 (mm): 41 · K (mm): 34 · Width W (mm): 8 |
| BT50 SCA38.1-090 | BT50 | 38.1 | 55 | 90 | 6.10 | Machine thread: M36x2.0P · H1 (mm): 36 · H3 (mm): 31 · H4 (mm): 46 · K (mm): 42.06 · Width W (mm): 9.52 |
| BT50 SCA38.1-135 | BT50 | 38.1 | 55 | 135 | 7.00 | Machine thread: M36x2.0P · H1 (mm): 36 · H3 (mm): 31 · H4 (mm): 46 · K (mm): 42.06 · Width W (mm): 9.52 |
| BT50 SCA40-090 | BT50 | 40 | 55 | 90 | 6.10 | Machine thread: M36x2.0P · H1 (mm): 36 · H3 (mm): 31 · H4 (mm): 46 · K (mm): 42.5 · Width W (mm): 10 |
| BT50 SCA40-135 | BT50 | 40 | 55 | 135 | 7.00 | Machine thread: M36x2.0P · H1 (mm): 36 · H3 (mm): 31 · H4 (mm): 46 · K (mm): 42.5 · Width W (mm): 10 |
| NT30 SCA25.4-L | NT30 | 25.4 | 40 | 75/100/125/150 | - | Machine thread: M25x1.5P · Screw spec: 1/2"-12 |
| NT40 SCA25.4-L | NT40 | 25.4 | 40 | 75/100/125/150/175/200 | - | Machine thread: M25x1.5P · Screw spec: 5/8"-11 / M16x2.0P |
| NT50 SCA25.4-L | NT50 | 25.4 | 40 | 75/100/125/150/175/200 | - | Machine thread: M25x1.5P · Screw spec: 1"-8 / M24x3.0P |
| NT30 SCA31.75-L | NT30 | 31.75 | 46 | 75/100/125/150 | - | Machine thread: M31x2.0P · Screw spec: M12x1.75P |
| NT40 SCA31.75-L | NT40 | 31.75 | 46 | 75/100/125/150/175/200 | - | Machine thread: M31x2.0P · Screw spec: 5/8"-11 / M16x2.0P |
| NT50 SCA31.75-L | NT50 | 31.75 | 46 | 75/100/125/150/175/200 | - | Machine thread: M31x2.0P · Screw spec: 1"-8 / M24x3.0P |
| NT50 SCA38.1-L | NT50 | 38.1 | 55 | 75/100/125/150/175/200 | - | Machine thread: M36x2.0P · Screw spec: 1"-8 / M24x3.0P |
| C20 SCA25.4-075 | C20 | 25.4 | 40 | 20 | - | Machine thread: M25x1.5P |
| C25 SCA25.4-075 | C25 | 25.4 | 40 | 20 | - | Machine thread: M25x1.5P |
| C32 SCA25.4-075 | C32 | 25.4 | 40 | 20 | - | Machine thread: M25x1.5P |
| C20 SCA25.4-100 | C20 | 25.4 | 40 | 45 | - | Machine thread: M25x1.5P |
| C25 SCA25.4-100 | C25 | 25.4 | 40 | 45 | - | Machine thread: M25x1.5P |
| C32 SCA25.4-100 | C32 | 25.4 | 40 | 45 | - | Machine thread: M25x1.5P |
| C20 SCA25.4-125 | C20 | 25.4 | 40 | 70 | - | Machine thread: M25x1.5P |
| C25 SCA25.4-125 | C25 | 25.4 | 40 | 70 | - | Machine thread: M25x1.5P |
| C32 SCA25.4-125 | C32 | 25.4 | 40 | 70 | - | Machine thread: M25x1.5P |
| C20 SCA25.4-150 | C20 | 25.4 | 40 | 95 | - | Machine thread: M25x1.5P |
| C32 SCA25.4-150 | C32 | 25.4 | 40 | 95 | - | Machine thread: M25x1.5P |
Compatibility
Compatible cutter heads
Bore compatibility is authored per catalogue bore diameter (e.g. Ø22mm) — see each linked page for the exact keyway and depth dimensions.
