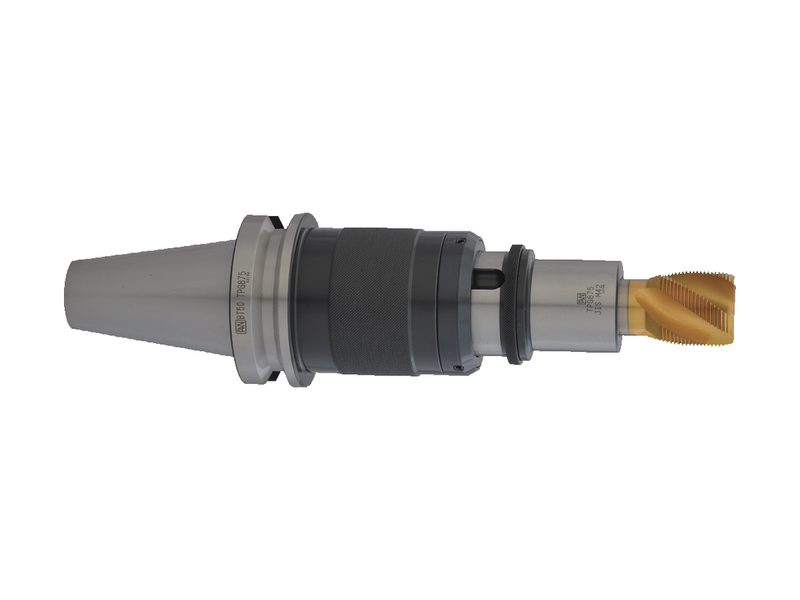

TPG Tension & Compression Tap Holder
BT50 and NT50 TPG830 and TPG875 tension and compression tap holders. TPG830 uses TPC830 tap collets for M8~M30; TPG875 supports M8~M30 and M32~M75 with the corresponding collet arrangement.
Specifications
Sizes & part numbers

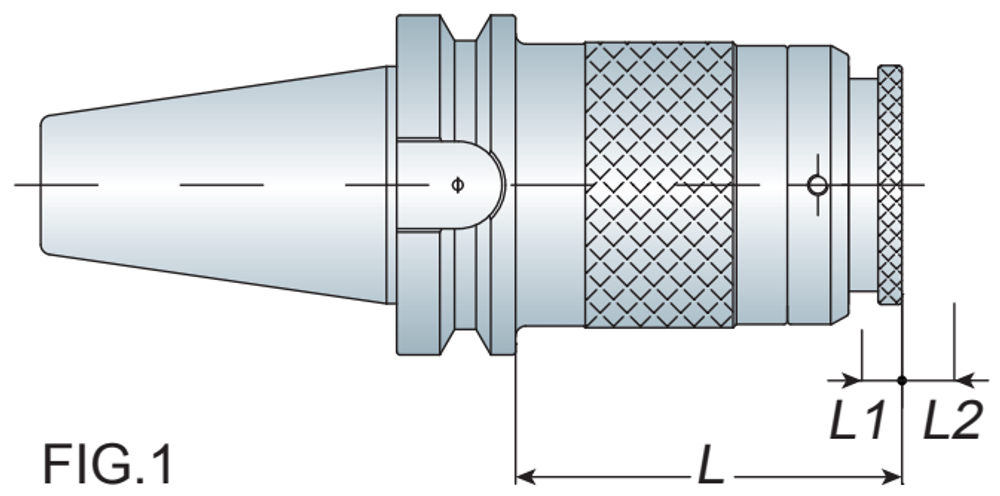

BT TPG875 dimension drawing 🔍 Click to zoom

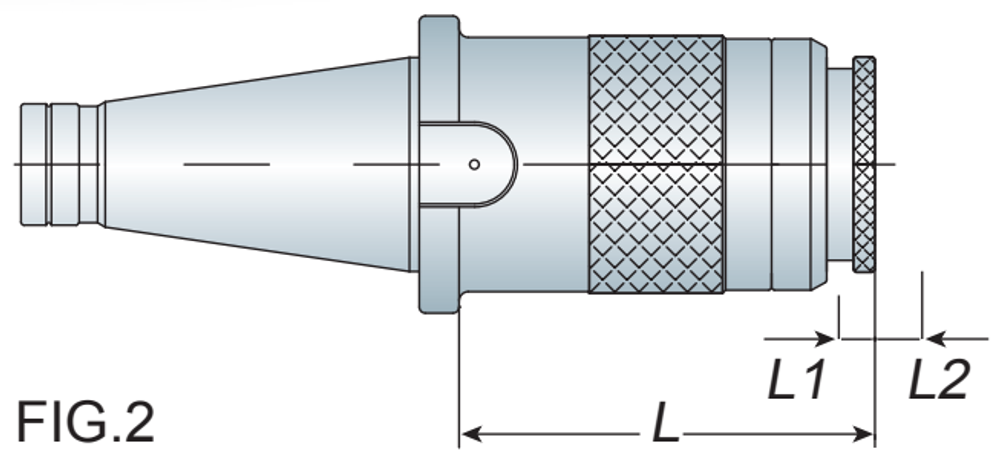

NT TPG875 dimension drawing 🔍 Click to zoom

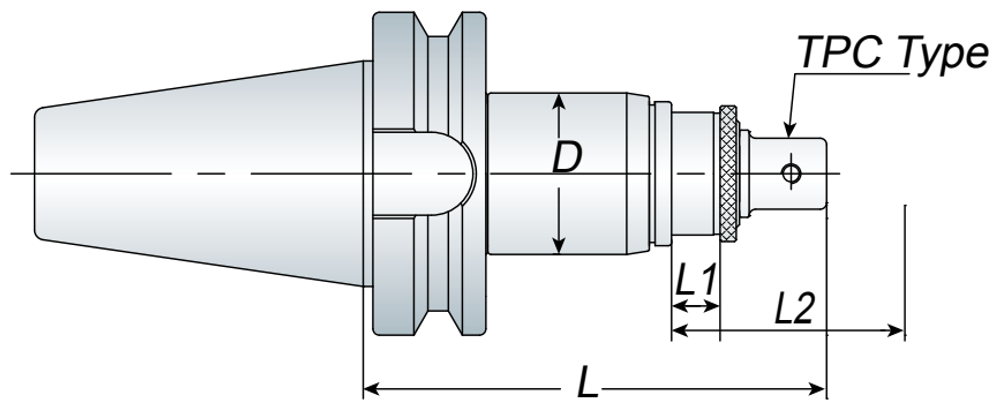

BT TPG830 dimension drawing (P.056) 🔍 Click to zoom

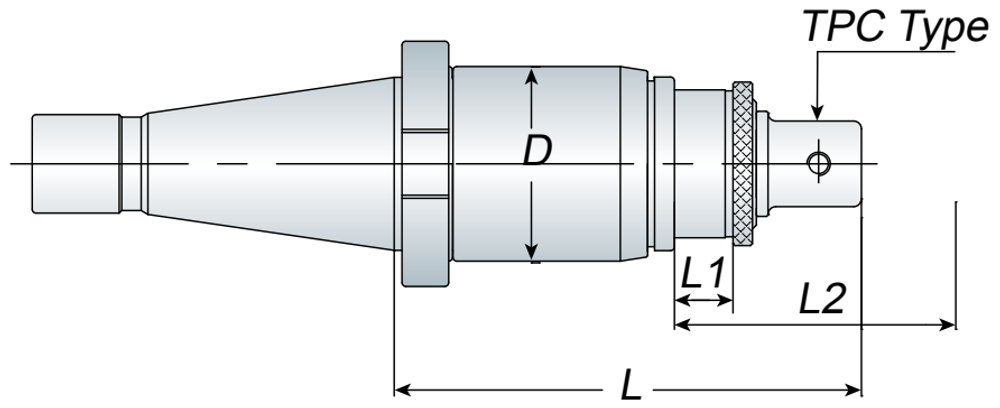

NT TPG830 dimension drawing (P.056) 🔍 Click to zoom Filtered from catalog
75
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | MOUNT | COLLET TYPE | D | L1 | L2 | L | WEIGHT (kg) | SPECS |
|---|---|---|---|---|---|---|---|---|
| BT50 TPG830 | BT50 | TPC830 | 75 | 10 | 80 | 265 | 8.40 | Tapping range: M8~M30 |
| BT50 TPG875 | BT50 | TPC830 / TPG875 | - | 15 | 80 | 115 | 7.30 | Tapping range: M8~M30 / M32~M75 |
| NT50 TPG830 | NT50 | TPC830 | 75 | 10 | 80 | 240 | 7.40 | Tapping range: M8~M30 · Screw spec: 1"-8 M24x3.0P |
| NT50 TPG875 | NT50 | TPC830 / TPG875 | - | 10 | 80 | 140 | 7.30 | Tapping range: M8~M30 / M32~M75 |
