TER Tension & Compression Tap Holder
TER tension and compression tap holders for BT30, BT40, BT50 and metric straight shanks, using ER-GB tap collets.
Specifications
Sizes & part numbers

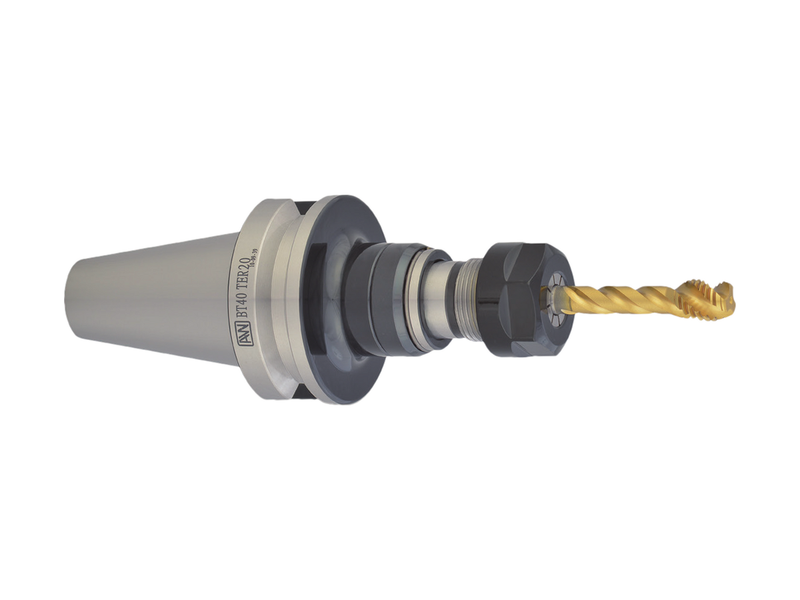

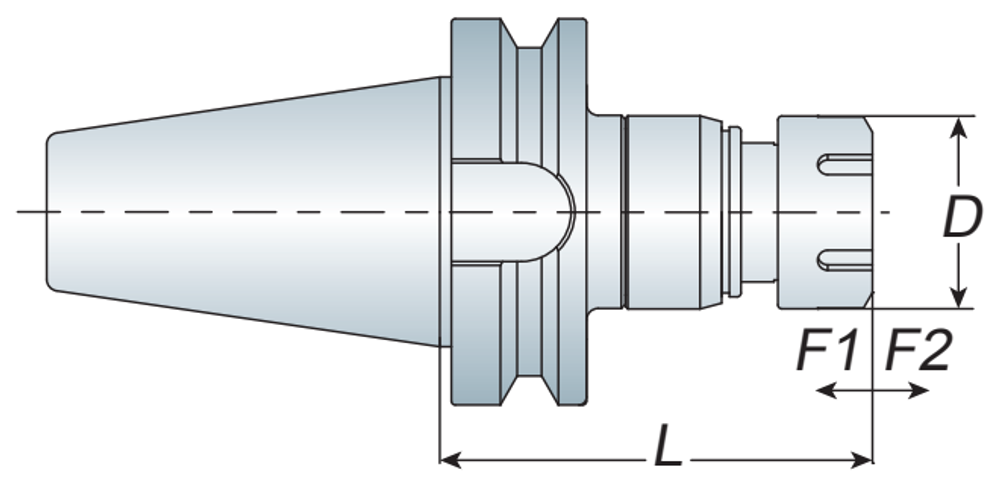

BT 🔍 Click to zoom

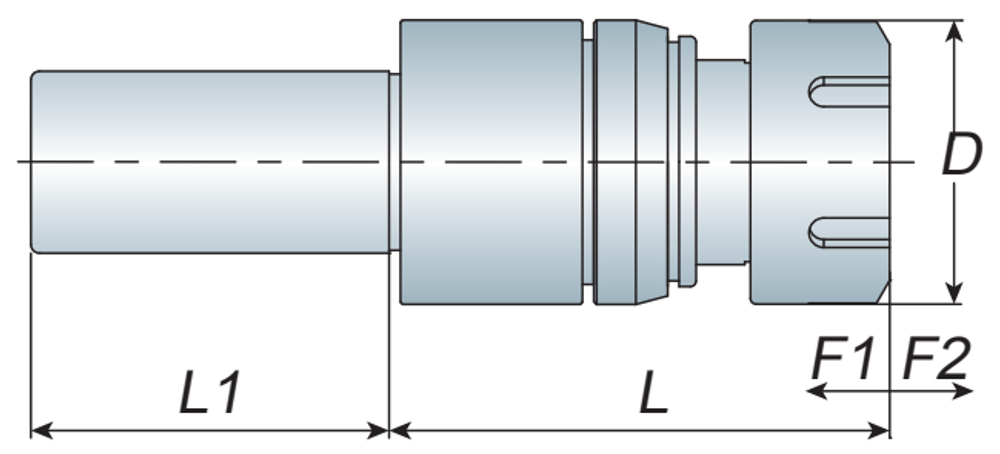

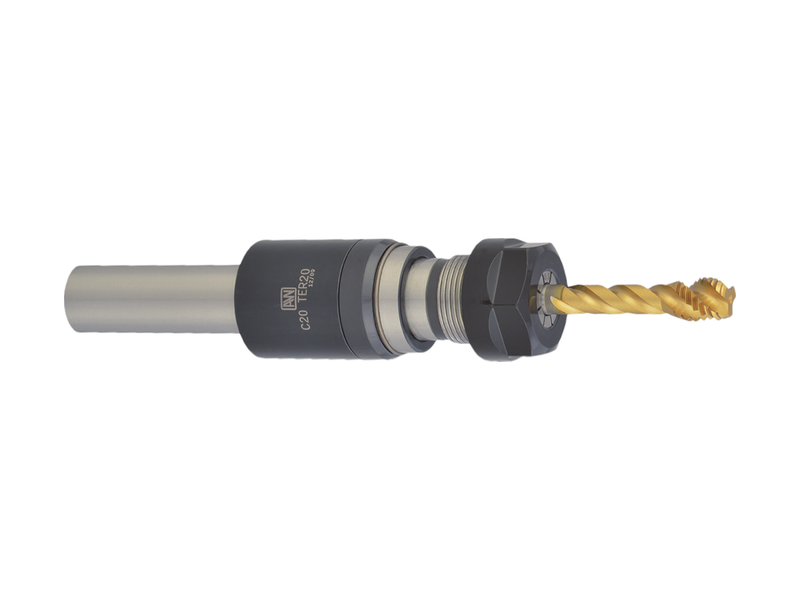

C Straight Shank 🔍 Click to zoom Filtered from catalog
28
34
42
50
63
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | MOUNT | COLLET TYPE | D | L1 | L | F1 | F2 | WEIGHT (kg) | SPECS |
|---|---|---|---|---|---|---|---|---|---|
| BT40 TER16 | BT40 | ER16GB | 28 | - | 85 | 8 | 8 | 1.20 | Tapping range: M3~M10 |
| BT30 TER16 | BT30 | ER16GB | 28 | - | 95 | 8 | 8 | 0.70 | Tapping range: M3~M10 |
| BT50 TER16 | BT50 | ER16GB | 28 | - | 95 | 8 | 8 | 3.90 | Tapping range: M3~M10 |
| BT40 TER20 | BT40 | ER20GB | 34 | - | 90 | 8 | 8 | 1.30 | Tapping range: M3~M12 |
| BT30 TER20 | BT30 | ER20GB | 34 | - | 95 | 8 | 8 | 0.80 | Tapping range: M3~M12 |
| BT50 TER20 | BT50 | ER20GB | 34 | - | 95 | 8 | 8 | 4.00 | Tapping range: M3~M12 |
| BT40 TER25 | BT40 | ER25GB | 42 | - | 100 | 8 | 8 | 1.60 | Tapping range: M4~M16 |
| BT50 TER25 | BT50 | ER25GB | 42 | - | 105 | 8 | 8 | 4.20 | Tapping range: M4~M16 |
| BT40 TER32 | BT40 | ER32GB | 50 | - | 105 | 8 | 8 | 1.70 | Tapping range: M4~M22 |
| BT50 TER32 | BT50 | ER32GB | 50 | - | 105 | 8 | 8 | 4.30 | Tapping range: M4~M22 |
| BT50 TER40 | BT50 | ER40GB | 63 | - | 120 | 8 | 8 | 4.90 | Tapping range: M6~M30 |
| BT40 TER40 | BT40 | ER40GB | 63 | - | 125 | 8 | 8 | 2.60 | Tapping range: M6~M30 |
| C20 TER16 | C20 | ER16GB | 28 | 55 | 75 | 5 | 12 | 0.40 | Tapping range: M3~M10 |
| C25 TER16 | C25 | ER16GB | 28 | 65 | 75 | 5 | 12 | 0.50 | Tapping range: M3~M10 |
| C32 TER16 | C32 | ER16GB | 28 | 70 | 75 | 5 | 12 | 0.70 | Tapping range: M3~M10 |
| C40 TER16 | C40 | ER16GB | 28 | 70 | 75 | 5 | 12 | 1.00 | Tapping range: M3~M10 |
| C20 TER20 | C20 | ER20GB | 34 | 55 | 80 | 5 | 12 | 0.50 | Tapping range: M3~M12 |
| C25 TER20 | C25 | ER20GB | 34 | 65 | 80 | 5 | 12 | 0.60 | Tapping range: M3~M12 |
| C32 TER20 | C32 | ER20GB | 34 | 70 | 80 | 5 | 12 | 0.80 | Tapping range: M3~M12 |
| C40 TER20 | C40 | ER20GB | 34 | 70 | 80 | 5 | 12 | 1.00 | Tapping range: M3~M12 |
| C20 TER25 | C20 | ER25GB | 42 | 55 | 80 | 5 | 12 | 0.80 | Tapping range: M4~M16 |
| C25 TER25 | C25 | ER25GB | 42 | 65 | 80 | 5 | 12 | 0.90 | Tapping range: M4~M16 |
| C32 TER25 | C32 | ER25GB | 42 | 70 | 80 | 5 | 12 | 1.00 | Tapping range: M4~M16 |
| C40 TER25 | C40 | ER25GB | 42 | 70 | 80 | 5 | 12 | 1.20 | Tapping range: M4~M16 |
| C25 TER32 | C25 | ER32GB | 50 | 65 | 80 | 5 | 8 | 1.10 | Tapping range: M4~M22 |
| C32 TER32 | C32 | ER32GB | 50 | 70 | 80 | 5 | 8 | 1.20 | Tapping range: M4~M22 |
| C40 TER32 | C40 | ER32GB | 50 | 70 | 80 | 5 | 8 | 1.50 | Tapping range: M4~M22 |
Compatibility
Compatible collets
ER16GB collet
ER20GB collet
ER25GB collet
ER32GB collet
ER40GB collet
