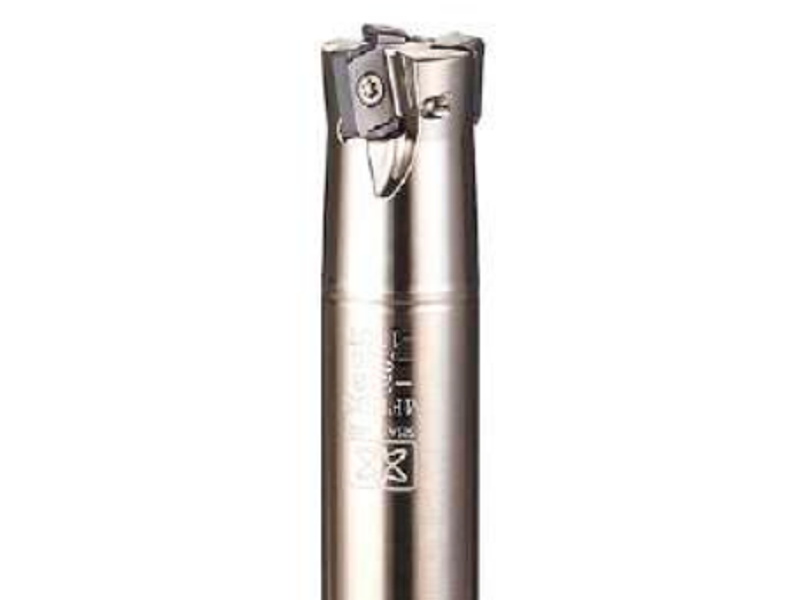

Shangin MFH High-Feed Milling Cutter (Holder)

Name: Shangin MFH High-Feed Milling Cutter (Holder)
Brand: Shangin

MFH high-feed radius-head (ball-nose) milling cutter — straight-shank (Shank), threaded-stud modular (Modular), and bore-plus-keyway (Shell) mount types share one LOGU030310ER indexable insert family for curved-surface, inclined and face milling.

Ask on LINE

Features & uses

Engineered for performance

Three Machining Operations in One Tool

Rated for curved-surface, inclined and face milling (the three application icons printed on every MFH catalogue page) from a single cutter body.

Three Mount Types, One Insert Family

Straight-shank bodies (Shank) mount via a set screw, threaded-stud bodies (Modular) thread onto a modular stub arbor, and bore-plus-keyway bodies (Shell) mount on a keyed flange arbor — all three share the same LOGU030310ER insert.

Two Coated Grade Options

Rated for steel, stainless steel and cast iron (P/M/K), running coated PR1525/PR1510/QV330/MW913 grade insert options.

Radius-Head Programming for High-Feed Roughing

Programmed in CAM as a radius-head (圓弧頭) cutter with an approximate cutting-edge radius of RE ≈ 1.6 mm, suited to efficient high-feed roughing passes.

Specifications

Sizes & part numbers

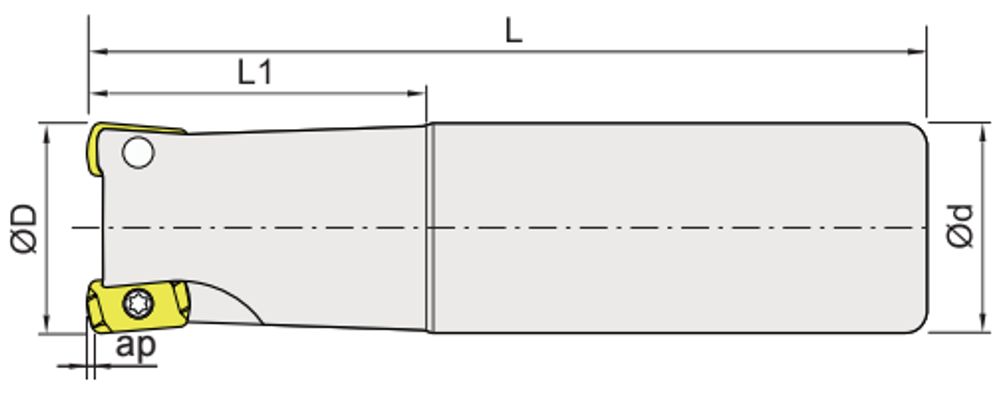

Shangin MFH High-Feed Milling Cutter (Holder) dimension diagram

🔍 Click to zoom

ORDER NO.	D	OAL	SHANK	NECK L	TEETH	ACCEPTED INSERT	SPECS
MFH03-162-S16-150T	16 mm	150	16	30	2	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-172-S16-150T	17 mm	150	16	25	2	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-203-S20-150T	20 mm	150	20	35	3	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-204-S20-150T	20 mm	150	20	35	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-213-S20-150T	21 mm	150	20	30	3	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-214-S20-150T	21 mm	150	20	30	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-254-S25-150T	25 mm	150	25	40	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-254-S25-200T	25 mm	200	25	40	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-264-S25-150T	26 mm	150	25	35	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-264-S25-200T	26 mm	200	25	35	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-325-S32-150T	32 mm	150	32	50	5	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-325-S32-200T	32 mm	200	32	50	5	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-335-S32-150T	33 mm	150	32	40	5	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-335-S32-200T	33 mm	200	32	40	5	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-162-MD14	16 mm	25	-	-	2	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-172-MD14	17 mm	25	-	-	2	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-203-MD18	20 mm	30	-	-	3	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-204-MD18	20 mm	30	-	-	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-213-MD18	21 mm	30	-	-	3	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-214-MD18	21 mm	30	-	-	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-254-MD23	25 mm	35	-	-	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-264-MD23	26 mm	35	-	-	4	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-325-MD30	32 mm	40	-	-	5	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-335-MD30	33 mm	40	-	-	5	LOGU03..	Dry · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-04006-16.0T	40 mm	40	-	-	6	LOGU03..	Dry · Bore d: 16.0 · Screw spec: MS3007K · Wrench spec: ETF08
MFH03-05008-22.0T	50 mm	50	-	-	8	LOGU03..	Dry · Bore d: 22.0 · Screw spec: MS3007K · Wrench spec: ETF08

Compatibility

Compatible inserts

LOGU03 series

LOGU Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
