Shangin AHU Shoulder Mill (Holder)

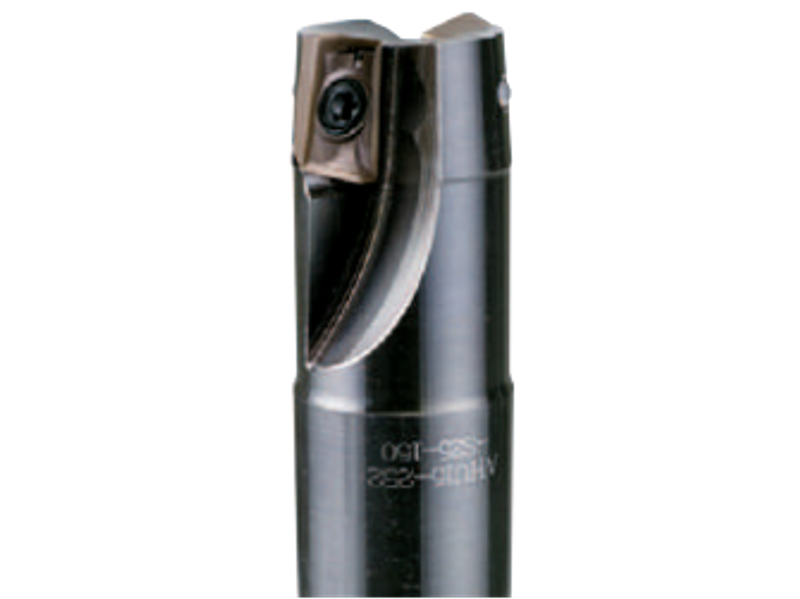

AHU 90° shoulder / square-shoulder end milling cutter family — straight-shank with set-screw (S), threaded-stud modular (MD), and bore-plus-keyway (Metric) mount types. Uses JDMT1003 / JDMT1505 indexable inserts across Ø16–80 mm bodies, in coated (PTH30E) and uncoated (WH10) carbide grades for steel, stainless and non-ferrous milling.
Features & uses
Engineered for performance
1
Three Machining Operations in One Tool
Rated for grooving/slotting, side milling and face milling (the three application icons printed on every AHU catalogue page) from a single cutter body.
2
Three Mount Types for Every Setup
Straight-shank bodies (S) mount directly in a collet or side-lock holder via a single set screw; threaded-stud bodies (MD) thread onto a modular stub arbor; bore-plus-keyway bodies (Metric) mount on a keyed flange arbor — three interfaces sharing the same insert-and-diameter lineup.
3
Two JDMT Insert Sizes, Ø16–80 mm
Runs JDMT1003 inserts on AHU10 bodies and JDMT1505 inserts on AHU15 bodies, spanning body diameters from Ø16 mm up to Ø80 mm with 2 to 7 teeth per body.
4
Coolant and Non-Coolant Versions
Non-coolant and coolant-through (A/AMD-suffix) item codes are catalogued side by side on the same body sizes across all three mount types.
5
Coated and Uncoated Carbide Grades
Inserts are available in coated PTH30E carbide (for steel and stainless) and uncoated WH10 carbide (for non-ferrous metal), matching insert grade to workpiece material.
Specifications
Sizes & part numbers
🔍 Click to zoom 16
17
18
20
21
22
25
26
30
32
33
35
40
50
63
80
JDMT1003..R
JDMT1505..R
Dry
Thru-coolant
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →

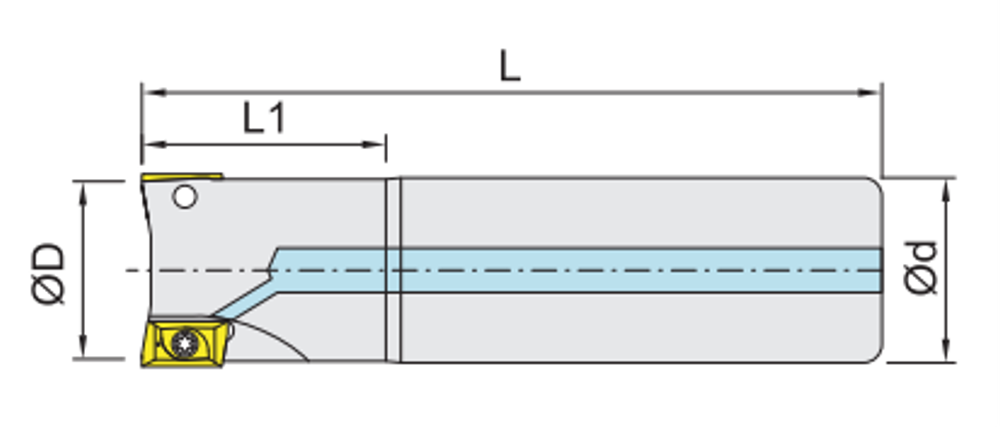

| ORDER NO. | D | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|---|---|
| AHU10-162-S16-100 | 16 mm | 100 | 16 | 30 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-162-A16-100 | 16 mm | 100 | 16 | 30 | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-162-S16-150 | 16 mm | 150 | 16 | 30 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-162-A16-150 | 16 mm | 150 | 16 | 30 | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-162-S16-200 | 16 mm | 200 | 16 | 30 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-162-A16-200 | 16 mm | 200 | 16 | 30 | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-172-S16-150 | 17 mm | 150 | 16 | 25 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-172-A16-150 | 17 mm | 150 | 16 | 25 | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-172-S16-200 | 17 mm | 200 | 16 | 25 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-172-A16-200 | 17 mm | 200 | 16 | 25 | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-182-S16-150 | 18 mm | 150 | 16 | 25 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-182-A16-150 | 18 mm | 150 | 16 | 25 | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-182-S16-200 | 18 mm | 200 | 16 | 25 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-182-A16-200 | 18 mm | 200 | 16 | 25 | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-S20-110 | 20 mm | 110 | 20 | 30 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-A20-110 | 20 mm | 110 | 20 | 30 | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-S20-150 | 20 mm | 150 | 20 | 30 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-A20-150 | 20 mm | 150 | 20 | 30 | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-S20-200 | 20 mm | 200 | 20 | 30 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-A20-200 | 20 mm | 200 | 20 | 30 | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-213-S20-150 | 21 mm | 150 | 20 | 30 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-213-A20-150 | 21 mm | 150 | 20 | 30 | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-213-S20-200 | 21 mm | 200 | 20 | 30 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-213-A20-200 | 21 mm | 200 | 20 | 30 | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-222-S20-150 | 22 mm | 150 | 20 | 30 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-222-S20-200 | 22 mm | 200 | 20 | 30 | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-253-S25-125 | 25 mm | 125 | 25 | 35 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-254-S25-125 | 25 mm | 125 | 25 | 35 | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-252-S25-125 | 25 mm | 125 | 25 | 40 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-252-A25-125 | 25 mm | 125 | 25 | 40 | 2 | JDMT1505..R | Thru-coolant · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-253-S25-150 | 25 mm | 150 | 25 | 35 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-253-A25-150 | 25 mm | 150 | 25 | 35 | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-254-S25-150 | 25 mm | 150 | 25 | 35 | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-254-A25-150 | 25 mm | 150 | 25 | 35 | 4 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-252-S25-150 | 25 mm | 150 | 25 | 40 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-253-S25-200 | 25 mm | 200 | 25 | 35 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-254-S25-200 | 25 mm | 200 | 25 | 35 | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-252-S25-200 | 25 mm | 200 | 25 | 40 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-254-S25-250 | 25 mm | 250 | 25 | 35 | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-252-S25-250 | 25 mm | 250 | 25 | 40 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-263-S25-150 | 26 mm | 150 | 25 | 30 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-264-S25-150 | 26 mm | 150 | 25 | 30 | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-264-A25-150 | 26 mm | 150 | 25 | 30 | 4 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-262-S25-150 | 26 mm | 150 | 25 | 40 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-263-S25-200 | 26 mm | 200 | 25 | 30 | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-264-S25-200 | 26 mm | 200 | 25 | 30 | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-262-S25-200 | 26 mm | 200 | 25 | 40 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-302-S25-125 | 30 mm | 125 | 25 | 35 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-302-S25-150 | 30 mm | 150 | 25 | 35 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-302-S25-200 | 30 mm | 200 | 25 | 35 | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-325-S32-150 | 32 mm | 150 | 32 | 40 | 5 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-323-S32-150 | 32 mm | 150 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-323-A32-150 | 32 mm | 150 | 32 | 45 | 3 | JDMT1505..R | Thru-coolant · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-325-S32-200 | 32 mm | 200 | 32 | 40 | 5 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-323-S32-200 | 32 mm | 200 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-323-S32-250 | 32 mm | 250 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-323-S32-300 | 32 mm | 300 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-333-S32-150 | 33 mm | 150 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-335-S32-200 | 33 mm | 200 | 32 | 35 | 5 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-333-S32-200 | 33 mm | 200 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-333-S32-250 | 33 mm | 250 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-333-S32-300 | 33 mm | 300 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-353-S32-150 | 35 mm | 150 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-353-S32-200 | 35 mm | 200 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-355-S32-250 | 35 mm | 250 | 32 | 40 | 5 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-353-S32-250 | 35 mm | 250 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-353-S32-300 | 35 mm | 300 | 32 | 45 | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-162-MD14 | 16 mm | 25 | - | - | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-162-AMD14 | 16 mm | 25 | - | - | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-172-MD14 | 17 mm | 25 | - | - | 2 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-172-AMD14 | 17 mm | 25 | - | - | 2 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-MD18 | 20 mm | 30 | - | - | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-203-AMD18 | 20 mm | 30 | - | - | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-213-MD18 | 21 mm | 30 | - | - | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-213-AMD18 | 21 mm | 30 | - | - | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-253-MD23 | 25 mm | 32 | - | - | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-253-AMD23 | 25 mm | 32 | - | - | 3 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-254-MD23 | 25 mm | 32 | - | - | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-254-AMD23 | 25 mm | 32 | - | - | 4 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-252-MD23 | 25 mm | 35 | - | - | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-263-MD23 | 26 mm | 32 | - | - | 3 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-264-MD23 | 26 mm | 32 | - | - | 4 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-262-MD23 | 26 mm | 35 | - | - | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-325-MD29 | 32 mm | 43 | - | - | 5 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-325-AMD29 | 32 mm | 43 | - | - | 5 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-323-MD29 | 32 mm | 43 | - | - | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-323-AMD29 | 32 mm | 43 | - | - | 3 | JDMT1505..R | Thru-coolant · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-332-MD29 | 33 mm | 43 | - | - | 2 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-355-MD29 | 35 mm | 43 | - | - | 5 | JDMT1003..R | Dry · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU10-355-AMD29 | 35 mm | 43 | - | - | 5 | JDMT1003..R | Thru-coolant · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-353-MD29 | 35 mm | 43 | - | - | 3 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-404-MD29 | 40 mm | 43 | - | - | 4 | JDMT1505..R | Dry · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU10-406-A16.0 | 40 mm | 40 | - | - | 6 | JDMT1003..R | Thru-coolant · Bore d: 16 · Screw spec: MS2506A · Wrench spec: ETF09 |
| AHU15-404-16.0 | 40 mm | 45 | - | - | 4 | JDMT1505..R | Dry · Bore d: 16 · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-404-A16.0 | 40 mm | 45 | - | - | 4 | JDMT1505..R | Thru-coolant · Bore d: 16 · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-505-22.0 | 50 mm | 40 | - | - | 5 | JDMT1505..R | Dry · Bore d: 22 · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-505-A22.0 | 50 mm | 40 | - | - | 5 | JDMT1505..R | Thru-coolant · Bore d: 22 · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-505-27.0 | 50 mm | 50 | - | - | 5 | JDMT1505..R | Dry · Bore d: 27 · Screw spec: MS4009A · Wrench spec: ETF15 |
| AHU15-635-27.0 | 63 mm | 50 | - | - | 5 | JDMT1505..R | Dry · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
| AHU15-635-A27.0 | 63 mm | 50 | - | - | 5 | JDMT1505..R | Thru-coolant · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
| AHU15-636-27.0 | 63 mm | 50 | - | - | 6 | JDMT1505..R | Dry · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
| AHU15-636-A27.0 | 63 mm | 50 | - | - | 6 | JDMT1505..R | Thru-coolant · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
| AHU15-805-27.0 | 80 mm | 50 | - | - | 5 | JDMT1505..R | Dry · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
| AHU15-805-A27.0 | 80 mm | 50 | - | - | 5 | JDMT1505..R | Thru-coolant · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
| AHU15-807-27.0 | 80 mm | 50 | - | - | 7 | JDMT1505..R | Dry · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
| AHU15-807-A27.0 | 80 mm | 50 | - | - | 7 | JDMT1505..R | Thru-coolant · Bore d: 27 · Screw spec: MS4011A · Wrench spec: ETF15 |
Compatibility
Compatible inserts
JDMT1003 series
JDMT1505 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
