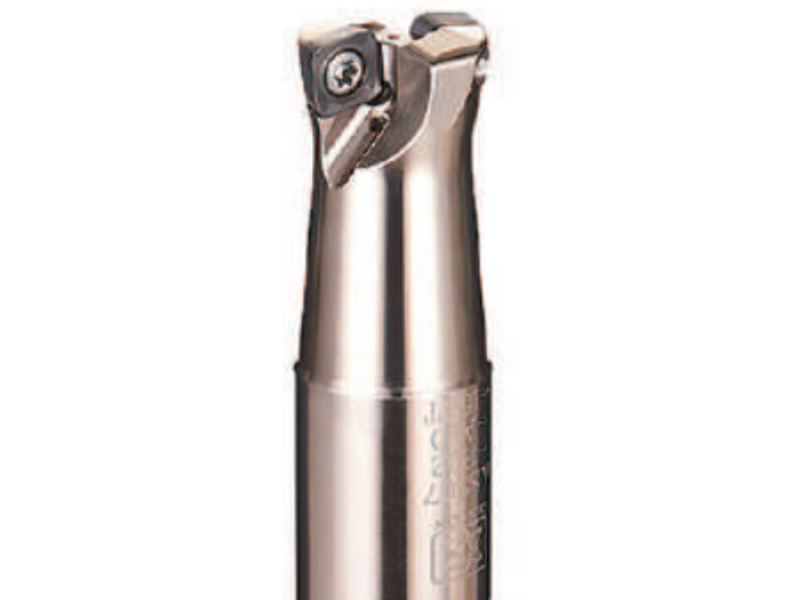

Shangin ASS High-Feed Milling Cutter (Holder)
ASS high-feed radius-head (ball-nose) milling cutter — straight-shank (Shank), threaded-stud modular (Modular), and bore-plus-keyway (Shell) mount types share one SP07T2 indexable insert family for curved-surface, inclined and face milling.
Features & uses
Engineered for performance
1
Three Machining Operations in One Tool
Rated for curved-surface, inclined and face milling (the three application icons printed on every ASS catalogue page) from a single cutter body.
2
Three Mount Types, One Insert Family
Straight-shank bodies (Shank) mount via a set screw, threaded-stud bodies (Modular) thread onto a modular stub arbor, and bore-plus-keyway bodies (Shell) mount on a keyed flange arbor — all three share the same SP07T2 insert.
3
Two Coated Grade Options
Rated for steel, stainless steel, cast iron and hardened steel (P/M/K/H), running coated JS4045/JM4160/JP4105 grade insert options.
4
Radius-Head Programming for High-Feed Roughing
Programmed in CAM as a radius-head (圓弧頭) cutter with an approximate cutting-edge radius of RE ≈ 2.0 mm, suited to efficient high-feed roughing passes.
Specifications
Sizes & part numbers

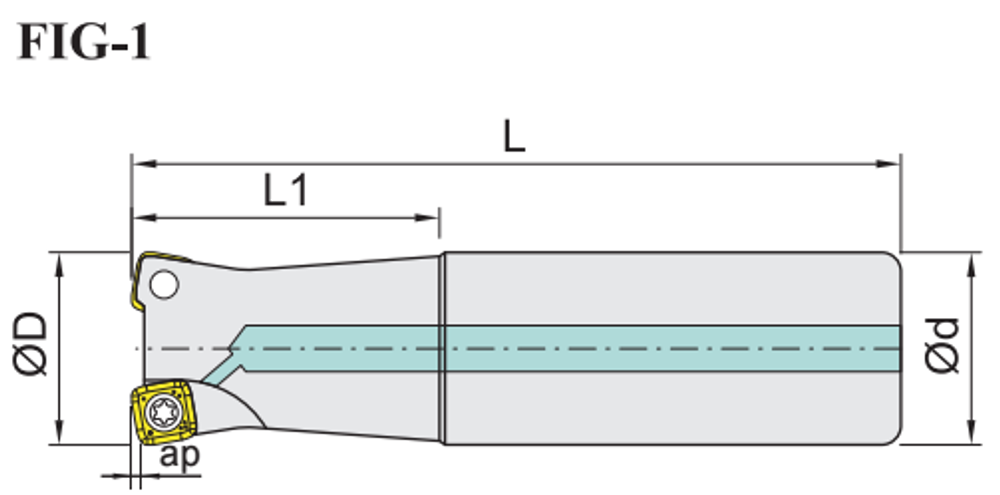

🔍 Click to zoom 20
25
32
35
40
42
50
52
63
Dry
Thru-coolant
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | D | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|---|---|
| ASS07-202-S20-150T | 20 mm | 150 | 20 | 35 | 2 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-202-A20-150T | 20 mm | 150 | 20 | 35 | 2 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-203-S20-150T | 20 mm | 150 | 20 | 35 | 3 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-203-A20-150T | 20 mm | 150 | 20 | 35 | 3 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-253-S25-150T | 25 mm | 150 | 25 | 40 | 3 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-253-A25-150T | 25 mm | 150 | 25 | 40 | 3 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-254-S25-150T | 25 mm | 150 | 25 | 40 | 4 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-254-A25-150T | 25 mm | 150 | 25 | 40 | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-253-S25-200T | 25 mm | 200 | 25 | 40 | 3 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-253-A25-200T | 25 mm | 200 | 25 | 40 | 3 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-254-S25-200T | 25 mm | 200 | 25 | 40 | 4 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-254-A25-200T | 25 mm | 200 | 25 | 40 | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-324-S32-150T | 32 mm | 150 | 32 | 45 | 4 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-324-A32-150T | 32 mm | 150 | 32 | 45 | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-325-S32-150T | 32 mm | 150 | 32 | 45 | 5 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-325-A32-150T | 32 mm | 150 | 32 | 45 | 5 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-324-S32-200T | 32 mm | 200 | 32 | 45 | 4 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-324-A32-200T | 32 mm | 200 | 32 | 45 | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-325-S32-200T | 32 mm | 200 | 32 | 45 | 5 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-325-A32-200T | 32 mm | 200 | 32 | 45 | 5 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-354-S32-150T | 35 mm | 150 | 32 | 45 | 4 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-354-A32-150T | 35 mm | 150 | 32 | 45 | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-355-S32-150T | 35 mm | 150 | 32 | 45 | 5 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-355-A32-150T | 35 mm | 150 | 32 | 45 | 5 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-202-MD18 | 20 mm | 30 | - | - | 2 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-202-AMD18 | 20 mm | 30 | - | - | 2 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-203-MD18 | 20 mm | 30 | - | - | 3 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-203-AMD18 | 20 mm | 30 | - | - | 3 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-253-MD23 | 25 mm | 35 | - | - | 3 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-253-AMD23 | 25 mm | 35 | - | - | 3 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-254-MD23 | 25 mm | 35 | - | - | 4 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-254-AMD23 | 25 mm | 35 | - | - | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-324-MD29 | 32 mm | 40 | - | - | 4 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-324-AMD29 | 32 mm | 40 | - | - | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-325-MD29 | 32 mm | 40 | - | - | 5 | SP..07T2 | Dry · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-325-AMD29 | 32 mm | 40 | - | - | 5 | SP..07T2 | Thru-coolant · Screw spec: MS3007C · Wrench spec: ETF10 |
| ASS07-354-MD29 | 35 mm | 40 | - | - | 4 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-354-AMD29 | 35 mm | 40 | - | - | 4 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-355-MD29 | 35 mm | 40 | - | - | 5 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-355-AMD29 | 35 mm | 40 | - | - | 5 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-426-MD29 | 42 mm | 40 | - | - | 6 | SP..07T2 | Dry · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-426-AMD29 | 42 mm | 40 | - | - | 6 | SP..07T2 | Thru-coolant · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04005-16.0T | 40 mm | 40 | - | - | 5 | SP..07T2 | Dry · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04005-A16.0T | 40 mm | 40 | - | - | 5 | SP..07T2 | Thru-coolant · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04006-16.0T | 40 mm | 40 | - | - | 6 | SP..07T2 | Dry · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04006-A16.0T | 40 mm | 40 | - | - | 6 | SP..07T2 | Thru-coolant · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04205-16.0T | 42 mm | 40 | - | - | 5 | SP..07T2 | Dry · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04205-A16.0T | 42 mm | 40 | - | - | 5 | SP..07T2 | Thru-coolant · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04206-16.0T | 42 mm | 40 | - | - | 6 | SP..07T2 | Dry · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-04206-A16.0T | 42 mm | 40 | - | - | 6 | SP..07T2 | Thru-coolant · Bore d: 16.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-05007-22.0T | 50 mm | 50 | - | - | 7 | SP..07T2 | Dry · Bore d: 22.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-05007-A22.0T | 50 mm | 50 | - | - | 7 | SP..07T2 | Thru-coolant · Bore d: 22.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-05207-22.0T | 52 mm | 50 | - | - | 7 | SP..07T2 | Dry · Bore d: 22.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-05207-A22.0T | 52 mm | 50 | - | - | 7 | SP..07T2 | Thru-coolant · Bore d: 22.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-06308-22.0T | 63 mm | 50 | - | - | 8 | SP..07T2 | Dry · Bore d: 22.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
| ASS07-06308-A22.0T | 63 mm | 50 | - | - | 8 | SP..07T2 | Thru-coolant · Bore d: 22.0 · Screw spec: MS3008C · Wrench spec: ETF10 |
Compatibility
Compatible inserts
SP07T2 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
