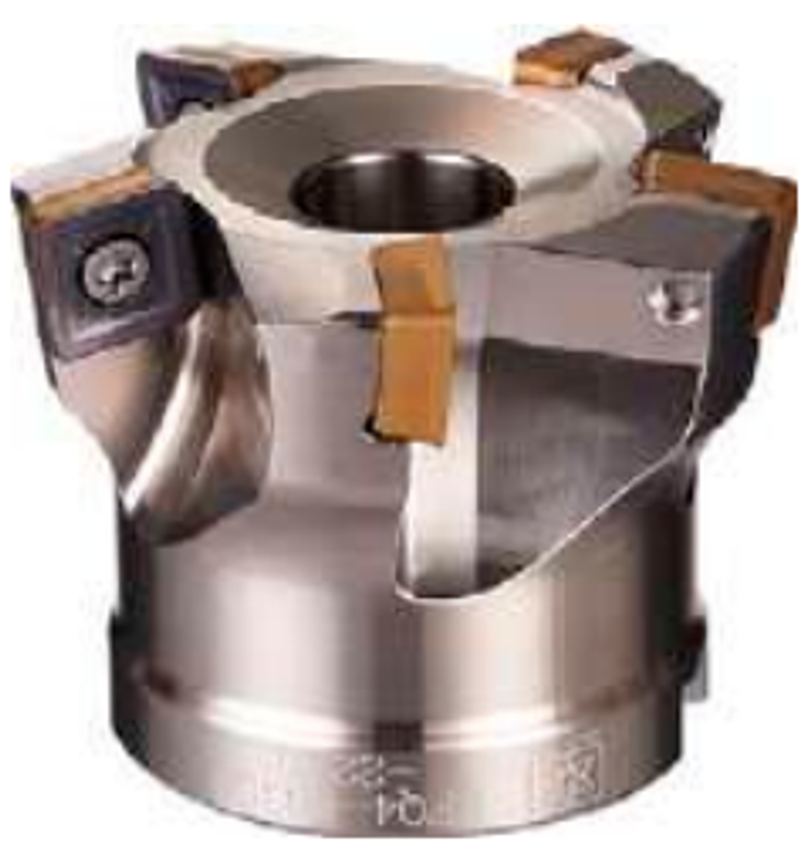

Shangin FFQ High-Feed Milling Cutter (Holder)
FFQ high-feed radius-head (ball-nose) milling cutter — a single bore-mount body (Ø50-63 mm) running the SOMT1205 indexable insert family for curved-surface, inclined and face milling.
Engineered for performance
Three Machining Operations in One Tool
Rated for inclined, curved-surface and face milling (the three application icons printed on every FFQ catalogue page) from a single cutter body.
Bore-Mount Body, Ø50-63 mm
A single keyed bore-and-flange mount design spans three body diameters (50/63 mm) with 4 to 6 teeth, running one shared SOMT1205 insert family.
Two Coated Grade Options
Available in two coated grades — IC808 (SOMT120516T) and IC810 (SOMT120516T20) — rated for steel and stainless steel workpieces.
Radius-Head Programming for High-Feed Roughing
Programmed in CAM as a radius-head (圓弧頭) cutter with an approximate cutting-edge radius of RE ≈ 3.0 mm, suited to efficient high-feed roughing passes.
Sizes & part numbers
🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →

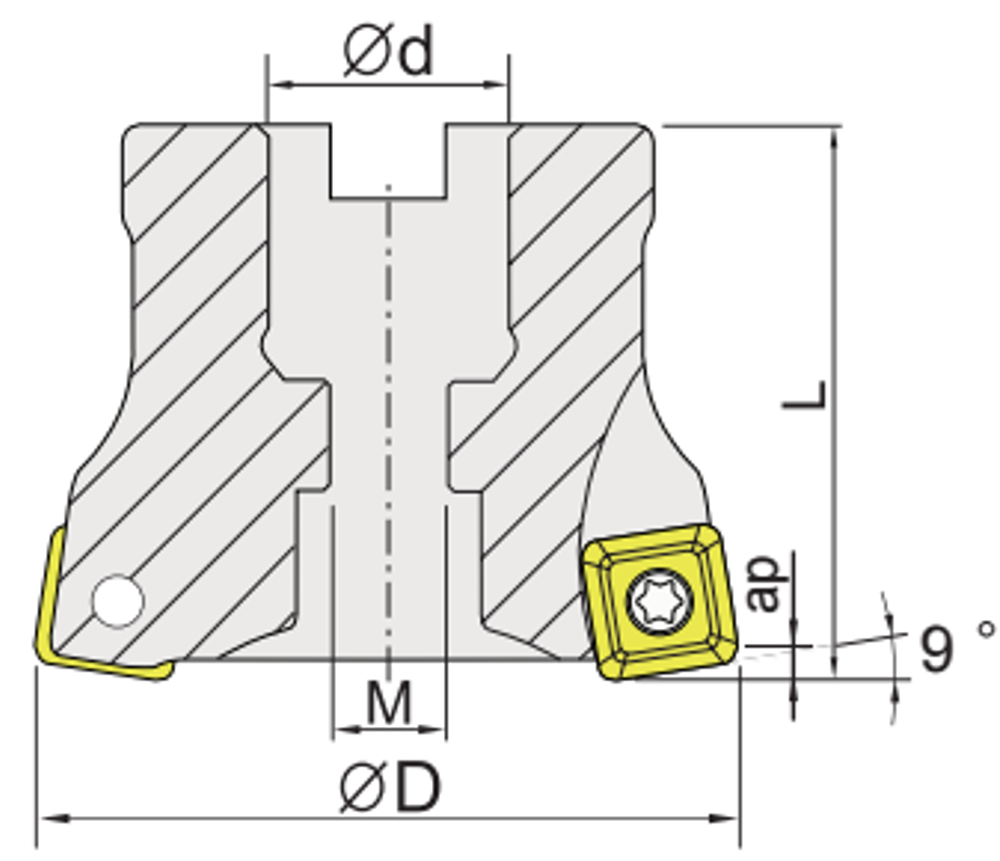

| ORDER NO. | D | OAL | TEETH | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|
| FFQ4-05004-22.0T | 50 mm | 50 | 4 | SOMT1205.. | Dry · Bore d: 22.0 · Screw spec: MS4011A · Wrench spec: ETF15 |
| FFQ4-06304-22.0T | 63 mm | 50 | 4 | SOMT1205.. | Dry · Bore d: 22.0 · Screw spec: MS4011A · Wrench spec: ETF15 |
| FFQ4-06305-22.0T | 63 mm | 50 | 5 | SOMT1205.. | Dry · Bore d: 22.0 · Screw spec: MS4011A · Wrench spec: ETF15 |
| FFQ4-06306-22.0T | 63 mm | 50 | 6 | SOMT1205.. | Dry · Bore d: 22.0 · Screw spec: MS4011A · Wrench spec: ETF15 |
Compatible inserts
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
