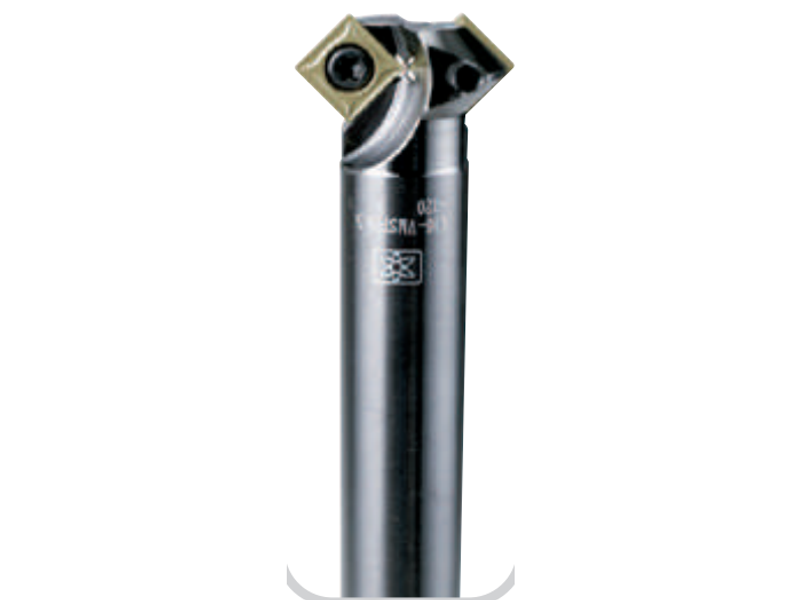

Shangin VMSP Chamfer Mill (Holder)
Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron
Workpiece material
Material applicability
P · SteelM · StainlessK · Cast iron
Specifications
Sizes & part numbers
🔍 Click to zoom Dimension key
Shank type
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
45° Chamfer angle — Fixed 45° geometry — encoded in the product name/order code.
L Overall length
ØD Cutting diameter
Ød Shank diameter — Not currently stored per-row — see the spec sheet PDF or order code for the exact shank size.
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
45° Chamfer angle — Fixed 45° geometry — encoded in the product name/order code.
17
22
26.5
35
50
SP..0502
SP..0903
SP..0903..
SP..1203
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | D | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|---|---|
| VMSP05R-173-S16-120 | 17 mm | 120 | 16 | 20 | 3 | SP..0502 | Screw spec: MS2005A · Wrench spec: ETF06 |
| C20-VMSP22-120 | 22 mm | 120 | 20 | 30 | 1 | SP..0903 | Screw spec: MS4009A · Wrench spec: ETF15 |
| C16-VMSP26.5-120 | 26.5 mm | 120 | 16 | 17 | 2 | SP..0903.. | Screw spec: MS4011A · Wrench spec: ETF15 |
| C20-VMSP35-120 | 35 mm | 120 | 20 | 17 | 2 | SP..0903 | Screw spec: MS4011A · Wrench spec: ETF15 |
| VMSP12R-503-S32-150 | 50 mm | 150 | 32 | 40 | 3 | SP..1203 | Screw spec: MS5011A · Wrench spec: ETF20 |
| VMSP09R-353-MD23 | 35 mm | 35 | - | - | 3 | SP..0903.. | Screw spec: MS4011A · Wrench spec: ETF15 |
Compatibility
Compatible inserts
SP0502 series
SP0903 series
SP1203 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
