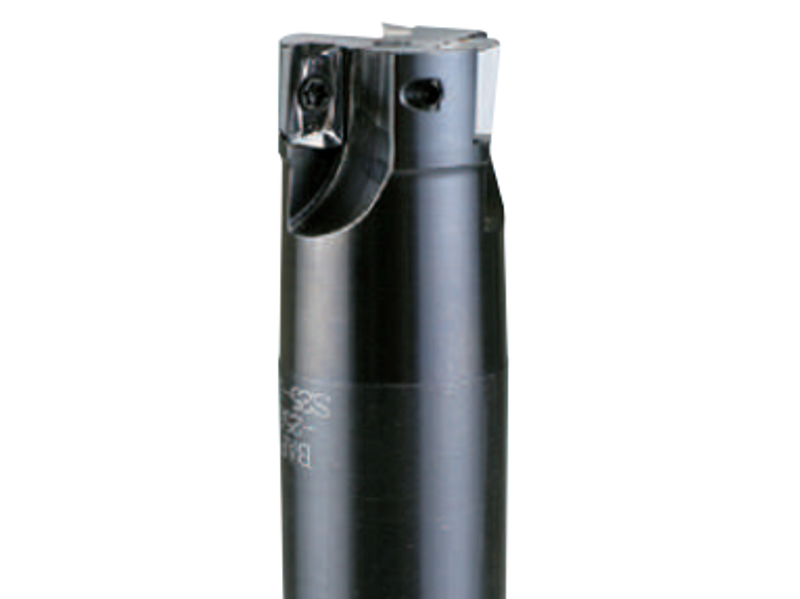

Shangin BAP 90° Shoulder Mill (Holder)
Shangin Milling

Shangin BAP 90° Shoulder Mill (Holder)

Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron

BAP 90° square-shoulder milling cutter family — shank, modular and shell types. Uses standard APMT1135 / APMT1604 inserts (Mitsubishi BAP compatible); an economical alternative to OEM cutter bodies. The line spans Ø11–125 mm across 192 catalogue sizes, with 1 to 10 indexable inserts per body.

Ask on LINE
Features & uses

Engineered for performance

1

Three Mounting Types for Every Setup

Shank bodies (Ø14.2–40 mm, 100 sizes) mount directly in a collet or side-lock holder; Modular heads (Ø11–36 mm, 50 sizes) thread onto a shared shank to cut tool inventory; Shell bodies (Ø40–125 mm, 42 sizes) arbor-mount for the largest diameters and heaviest depth of cut.

2

Standard APMT/APGT Insert Sizes

Runs standard APMT1135 and APMT1604 indexable inserts (Mitsubishi BAP compatible) — the same size codes as the sibling Shangin BAP insert line.

3

1 to 10 Indexable Inserts per Body

Insert count scales from 1 up to 10 per cutter body across the 192 catalogue sizes, matching insert count to diameter at each size.

4

Coolant and Non-Coolant Versions

Both coolant and non-coolant body versions are catalogued across the size range, to match the setup to the machine’s coolant delivery.

Workpiece material

Material applicability

P · SteelM · StainlessK · Cast iron
Specifications

Sizes & part numbers

Ø11–125 mm · OAL 21–250 mm · 1–10 teeth · shank / modular / shell · non-coolant & coolant · inserts APMT1135 / APMT1604

Shangin BAP 90° Shoulder Mill (Holder) dimension diagram 🔍 Click to zoom
Dimension key
Shank type
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
ORDER NO.DOALSHANKNECK LTEETHACCEPTED INSERT SPECS
BAP3-14.22-S16-100 14.2 mm 100 16 20 2 APMT1135.. Dry
BAP3-15.5-S16-100 15.5 mm 100 16 25 2 APMT1135.. Dry
BAP3-162-S16-100 16 mm 100 16 28 2 APMT1135.. Dry
BAP3-162-A16-100 16 mm 100 16 28 2 APMT1135.. Thru-coolant
BAP3-162-S16-150 16 mm 150 16 28 2 APMT1135.. Dry
BAP3-162-A16-150 16 mm 150 16 28 2 APMT1135.. Thru-coolant
BAP3-162-S16-200 16 mm 200 16 28 2 APMT1135.. Dry
BAP3-172-S16-150 17 mm 150 16 20 2 APMT1135.. Dry
BAP3-172-A16-150 17 mm 150 16 20 2 APMT1135.. Thru-coolant
BAP3-172-S16-200 17 mm 200 16 20 2 APMT1135.. Dry
BAP3-182-S20-110 18 mm 110 20 28 2 APMT1135.. Dry
BAP3-182-S20-150 18 mm 150 20 28 2 APMT1135.. Dry
BAP3-202-S20-110 20 mm 110 20 28 2 APMT1135.. Dry
BAP3-202-A20-110 20 mm 110 20 28 2 APMT1135.. Thru-coolant
BAP3-203-S20-110 20 mm 110 20 28 3 APMT1135.. Dry
BAP3-203-A20-110 20 mm 110 20 28 3 APMT1135.. Thru-coolant
BAP3-203-S20-125 20 mm 125 20 28 3 APMT1135.. Dry
BAP3-202-S20-150 20 mm 150 20 28 2 APMT1135.. Dry
BAP3-202-A20-150 20 mm 150 20 28 2 APMT1135.. Thru-coolant
BAP3-203-S20-150 20 mm 150 20 28 3 APMT1135.. Dry
BAP3-203-A20-150 20 mm 150 20 28 3 APMT1135.. Thru-coolant
BAP3-202-S20-200 20 mm 200 20 28 2 APMT1135.. Dry
BAP3-202-A20-200 20 mm 200 20 28 2 APMT1135.. Thru-coolant
BAP3-203-S20-200 20 mm 200 20 28 3 APMT1135.. Dry
BAP3-203-A20-200 20 mm 200 20 28 3 APMT1135.. Thru-coolant
BAP3-212-S20-150 21 mm 150 20 25 2 APMT1135.. Dry
BAP3-212-A20-150 21 mm 150 20 25 2 APMT1135.. Thru-coolant
BAP3-213-S20-150 21 mm 150 20 25 3 APMT1135.. Dry
BAP3-213-A20-150 21 mm 150 20 25 3 APMT1135.. Thru-coolant
BAP3-212-S20-200 21 mm 200 20 25 2 APMT1135.. Dry
BAP3-212-A20-200 21 mm 200 20 25 2 APMT1135.. Thru-coolant
BAP3-213-S20-200 21 mm 200 20 25 3 APMT1135.. Dry
BAP3-213-A20-200 21 mm 200 20 25 3 APMT1135.. Thru-coolant
BAP3-21.3-S20-150 21.3 mm 150 20 25 3 APMT1135.. Dry
BAP3-222-S20-150 22 mm 150 20 25 2 APMT1135.. Dry
BAP3-223-S20-150 22 mm 150 20 25 3 APMT1135.. Dry
BAP3-222-S20-200 22 mm 200 20 25 2 APMT1135.. Dry
BAP3-243-S25-120 24 mm 120 25 35 3 APMT1135.. Dry
BAP3-243-S25-150 24 mm 150 25 35 3 APMT1135.. Dry
BAP3-253-S25-100 25 mm 100 25 35 3 APMT1135.. Dry
BAP3-254-S25-100 25 mm 100 25 35 4 APMT1135.. Dry
BAP3-253-S25-120 25 mm 120 25 35 3 APMT1135.. Dry
BAP3-253-A25-120 25 mm 120 25 35 3 APMT1135.. Thru-coolant
BAP3-254-S25-120 25 mm 120 25 35 4 APMT1135.. Dry
BAP3-254-A25-120 25 mm 120 25 35 4 APMT1135.. Thru-coolant
BAP4-252-S25-120 25 mm 120 25 40 2 APMT1604.. Dry
BAP4-252-A25-120 25 mm 120 25 40 2 APMT1604.. Thru-coolant
BAP4-252-S25-125 25 mm 125 25 40 2 APMT1604.. Dry
BAP3-253-S25-150 25 mm 150 25 35 3 APMT1135.. Dry
BAP3-253-A25-150 25 mm 150 25 35 3 APMT1135.. Thru-coolant
BAP3-254-S25-150 25 mm 150 25 35 4 APMT1135.. Dry
BAP3-254-A25-150 25 mm 150 25 35 4 APMT1135.. Thru-coolant
BAP4-252-S25-150 25 mm 150 25 40 2 APMT1604.. Dry
BAP3-253-S25-200 25 mm 200 25 35 3 APMT1135.. Dry
BAP3-254-S25-200 25 mm 200 25 35 4 APMT1135.. Dry
BAP4-252-S25-200 25 mm 200 25 40 2 APMT1604.. Dry
BAP3-263-S25-150 26 mm 150 25 35 3 APMT1135.. Dry
BAP3-263-A25-150 26 mm 150 25 35 3 APMT1135.. Thru-coolant
BAP3-264-S25-150 26 mm 150 25 35 4 APMT1135.. Dry
BAP3-264-A25-150 26 mm 150 25 35 4 APMT1135.. Thru-coolant
BAP4-262-S25-150 26 mm 150 25 40 2 APMT1604.. Dry
BAP3-263-S25-200 26 mm 200 25 35 3 APMT1135.. Dry
BAP3-264-S25-200 26 mm 200 25 35 4 APMT1135.. Dry
BAP4-262-S25-200 26 mm 200 25 40 2 APMT1604.. Dry
BAP4-292-S32-150 29 mm 150 32 40 2 APMT1604.. Dry
BAP4-303-S25-150 30 mm 150 25 35 3 APMT1604.. Dry
BAP3-324-S32-130 32 mm 130 32 35 4 APMT1135.. Dry
BAP3-324-A32-130 32 mm 130 32 35 4 APMT1135.. Thru-coolant
BAP3-325-S32-130 32 mm 130 32 35 5 APMT1135.. Dry
BAP3-325-A32-130 32 mm 130 32 35 5 APMT1135.. Thru-coolant
BAP4-323-S32-130 32 mm 130 32 45 3 APMT1604.. Dry
BAP4-323-A32-130 32 mm 130 32 45 3 APMT1604.. Thru-coolant
BAP3-323-S32-150 32 mm 150 32 35 3 APMT1135.. Dry
BAP3-323-A32-150 32 mm 150 32 35 3 APMT1135.. Thru-coolant
BAP3-324-S32-150 32 mm 150 32 35 4 APMT1135.. Dry
BAP3-324-A32-150 32 mm 150 32 35 4 APMT1135.. Thru-coolant
BAP4-322-S32-150 32 mm 150 32 45 2 APMT1604.. Dry
BAP4-323-S32-150 32 mm 150 32 45 3 APMT1604.. Dry
BAP3-323-S32-200 32 mm 200 32 35 3 APMT1135.. Dry
BAP3-323-A32-200 32 mm 200 32 35 3 APMT1135.. Thru-coolant
BAP3-324-S32-200 32 mm 200 32 35 4 APMT1135.. Dry
BAP3-324-A32-200 32 mm 200 32 35 4 APMT1135.. Thru-coolant
BAP4-322-S32-200 32 mm 200 32 45 2 APMT1604.. Dry
BAP4-323-S32-200 32 mm 200 32 45 3 APMT1604.. Dry
BAP4-322-S32-250 32 mm 250 32 45 2 APMT1604.. Dry
BAP4-323-S32-250 32 mm 250 32 45 3 APMT1604.. Dry
BAP3-334-S32-150 33 mm 150 32 35 4 APMT1135.. Dry
BAP3-334-A32-150 33 mm 150 32 35 4 APMT1135.. Thru-coolant
BAP4-332-S32-150 33 mm 150 32 40 2 APMT1604.. Dry
BAP4-333-S32-150 33 mm 150 32 40 3 APMT1604.. Dry
BAP3-334-S32-200 33 mm 200 32 35 4 APMT1135.. Dry
BAP3-334-A32-200 33 mm 200 32 35 4 APMT1135.. Thru-coolant
BAP4-332-S32-200 33 mm 200 32 40 2 APMT1604.. Dry
BAP4-333-S32-200 33 mm 200 32 40 3 APMT1604.. Dry
BAP4-332-S32-250 33 mm 250 32 40 2 APMT1604.. Dry
BAP4-333-S32-250 33 mm 250 32 40 3 APMT1604.. Dry
BAP4-353-S32-150 35 mm 150 32 35 3 APMT1604.. Dry
BAP4-353-S32-200 35 mm 200 32 35 3 APMT1604.. Dry
BAP4-353-S32-250 35 mm 250 32 35 3 APMT1604.. Dry
BAP4-404-S32-150 40 mm 150 32 40 4 APMT1604.. Dry
BAP3-111-MD10 11 mm 21 - - 1 APMT1135.. Dry
BAP3-131-MD11 13 mm 23 - - 1 APMT1135.. Dry
BAP3-162-MD14 16 mm 25 - - 2 APMT1135.. Dry
BAP3-162-AMD14 16 mm 25 - - 2 APMT1135.. Thru-coolant
BAP3-172-MD14 17 mm 25 - - 2 APMT1135.. Dry
BAP3-172-AMD14 17 mm 25 - - 2 APMT1135.. Thru-coolant
BAP3-202-MD18 20 mm 30 - - 2 APMT1135.. Dry
BAP3-202-AMD18 20 mm 30 - - 2 APMT1135.. Thru-coolant
BAP3-203-MD18 20 mm 30 - - 3 APMT1135.. Dry
BAP3-203-AMD18 20 mm 30 - - 3 APMT1135.. Thru-coolant
BAP3-212-MD18 21 mm 30 - - 2 APMT1135.. Dry
BAP3-212-AMD18 21 mm 30 - - 2 APMT1135.. Thru-coolant
BAP3-213-MD18 21 mm 30 - - 3 APMT1135.. Dry
BAP3-213-AMD18 21 mm 30 - - 3 APMT1135.. Thru-coolant
BAP3-222-MD18 22 mm 30 - - 2 APMT1135.. Dry
BAP3-222-AMD18 22 mm 30 - - 2 APMT1135.. Thru-coolant
BAP3-223-MD18 22 mm 30 - - 3 APMT1135.. Dry
BAP3-223-AMD18 22 mm 30 - - 3 APMT1135.. Thru-coolant
BAP3-253-MD23 25 mm 35 - - 3 APMT1135.. Dry
BAP3-253-AMD23 25 mm 35 - - 3 APMT1135.. Thru-coolant
BAP3-254-MD23 25 mm 35 - - 4 APMT1135.. Dry
BAP3-254-AMD23 25 mm 35 - - 4 APMT1135.. Thru-coolant
BAP4-252-MD23 25 mm 38 - - 2 APMT1604.. Dry
BAP4-252-AMD23 25 mm 38 - - 2 APMT1604.. Thru-coolant
BAP3-263-MD23 26 mm 35 - - 3 APMT1135.. Dry
BAP3-263-AMD23 26 mm 35 - - 3 APMT1135.. Thru-coolant
BAP3-264-MD23 26 mm 35 - - 4 APMT1135.. Dry
BAP3-264-AMD23 26 mm 35 - - 4 APMT1135.. Thru-coolant
BAP4-262-MD23 26 mm 38 - - 2 APMT1604.. Dry
BAP4-262-AMD23 26 mm 38 - - 2 APMT1604.. Thru-coolant
BAP3-324-MD29 32 mm 43 - - 4 APMT1135.. Dry
BAP3-324-AMD29 32 mm 43 - - 4 APMT1135.. Thru-coolant
BAP3-325-MD29 32 mm 43 - - 5 APMT1135.. Dry
BAP3-325-AMD29 32 mm 43 - - 5 APMT1135.. Thru-coolant
BAP4-322-MD29 32 mm 43 - - 2 APMT1604.. Dry
BAP4-323-MD29 32 mm 43 - - 3 APMT1604.. Dry
BAP3-334-MD29 33 mm 43 - - 4 APMT1135.. Dry
BAP3-334-AMD29 33 mm 43 - - 4 APMT1135.. Thru-coolant
BAP3-335-MD29 33 mm 43 - - 5 APMT1135.. Dry
BAP3-335-AMD29 33 mm 43 - - 5 APMT1135.. Thru-coolant
BAP4-332-MD29 33 mm 43 - - 2 APMT1604.. Dry
BAP4-333-MD29 33 mm 43 - - 3 APMT1604.. Dry
BAP4-333-AMD29 33 mm 43 - - 3 APMT1604.. Thru-coolant
BAP3-354-MD29 35 mm 43 - - 4 APMT1135.. Dry
BAP3-354-AMD29 35 mm 43 - - 4 APMT1135.. Thru-coolant
BAP3-355-MD29 35 mm 43 - - 5 APMT1135.. Dry
BAP3-355-AMD29 35 mm 43 - - 5 APMT1135.. Thru-coolant
BAP4-353-MD29 35 mm 43 - - 3 APMT1604.. Dry
BAP3-365-MD29 36 mm 43 - - 5 APMT1135.. Dry
BAP3-365-AMD29 36 mm 43 - - 5 APMT1135.. Thru-coolant
BAP3-405-16.0 40 mm 40 - - 5 APMT1135.. Dry
BAP3-405-A16.0 40 mm 40 - - 5 APMT1135.. Thru-coolant
BAP3-406-A16.0 40 mm 40 - - 6 APMT1135.. Thru-coolant
BAP4-404-16.0 40 mm 40 - - 4 APMT1604.. Dry
BAP4-404-A16.0 40 mm 40 - - 4 APMT1604.. Thru-coolant
BAP3-505-22.0 50 mm 40 - - 5 APMT1135.. Dry
BAP3-505-A22.0 50 mm 40 - - 5 APMT1135.. Thru-coolant
BAP3-507-22.0 50 mm 40 - - 7 APMT1135.. Dry
BAP3-507-A22.0 50 mm 40 - - 7 APMT1135.. Thru-coolant
BAP4-504-22.0 50 mm 50 - - 4 APMT1604.. Dry
BAP4-504-A22.0 50 mm 50 - - 4 APMT1604.. Thru-coolant
BAP4-505-22.0 50 mm 50 - - 5 APMT1604.. Dry
BAP4-505-A22.0 50 mm 50 - - 5 APMT1604.. Thru-coolant
BAP3-505-25.4 50 mm 50 - - 5 APMT1135.. Dry
BAP4-504-25.4 50 mm 50 - - 4 APMT1604.. Dry
BAP4-605-25.4 60 mm 50 - - 5 APMT1604.. Dry
BAP3-636-A22.0 63 mm 40 - - 6 APMT1135.. Thru-coolant
BAP3-638-22.0 63 mm 40 - - 8 APMT1135.. Dry
BAP3-638-A22.0 63 mm 40 - - 8 APMT1135.. Thru-coolant
BAP4-635-22.0 63 mm 50 - - 5 APMT1604.. Dry
BAP4-635-A22.0 63 mm 50 - - 5 APMT1604.. Thru-coolant
BAP4-636-22.0 63 mm 50 - - 6 APMT1604.. Dry
BAP4-636-A22.0 63 mm 50 - - 6 APMT1604.. Thru-coolant
BAP3-638-25.4 63 mm 50 - - 8 APMT1135.. Dry
BAP4-635-25.4 63 mm 50 - - 5 APMT1604.. Dry
BAP4-664-25.4 66 mm 50 - - 4 APMT1604.. Dry
BAP4-665-25.4 66 mm 50 - - 5 APMT1604.. Dry
BAP3-809-27.0 80 mm 50 - - 9 APMT1135.. Dry
BAP3-8010-A27.0 80 mm 50 - - 10 APMT1135.. Thru-coolant
BAP4-806-27.0 80 mm 50 - - 6 APMT1604.. Dry
BAP4-806-A27.0 80 mm 50 - - 6 APMT1604.. Thru-coolant
BAP4-808-27.0 80 mm 50 - - 8 APMT1604.. Dry
BAP4-808-A27.0 80 mm 50 - - 8 APMT1604.. Thru-coolant
BAP3-809-25.4 80 mm 50 - - 9 APMT1135.. Dry
BAP4-806-25.4 80 mm 50 - - 6 APMT1604.. Dry
BAP4-1008-32.0 100 mm 50 - - 8 APMT1604.. Dry
BAP4-1008-A32.0 100 mm 50 - - 8 APMT1604.. Thru-coolant
BAP4-1008-31.75 100 mm 50 - - 8 APMT1604.. Dry
BAP4-1108-31.75 110 mm 50 - - 8 APMT1604.. Dry
BAP4-1259-38.1 125 mm 50 - - 9 APMT1604.. Dry
BAP4-1259-40.0 125 mm 63 - - 9 APMT1604.. Dry
BAP4-1259-A40.0 125 mm 63 - - 9 APMT1604.. Thru-coolant
Compatibility

Compatible inserts

APMT1135 series
APMT Indexable Milling Insert →
APMT1604 series
APMT Indexable Milling Insert →

Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.

Related products

You may also need

Shangin AJX High-Feed Milling Cutter (Holder)

Shangin AJX High-Feed Milling Cutter (Holder)

Milling
Shangin APM Shoulder / Cutting End Mill (Holder)

Shangin APM Shoulder / Cutting End Mill (Holder)

Milling
Shangin BXD Shoulder / Cutting End Mill (Holder)

Shangin BXD Shoulder / Cutting End Mill (Holder)

Milling
Shangin GWV Radius Precision Cutter (Holder)

Shangin GWV Radius Precision Cutter (Holder)

Milling
Shangin HD Extension Adapter (Shank)

Shangin HD Extension Adapter (Shank)

Milling
Shangin MD Extension Adapter (Shank)

Shangin MD Extension Adapter (Shank)

Milling

Product enquiry

Send us the product, size and quantity you need. Our team will respond with the relevant information.

Ask on LINE Contact us
