Shangin VAX Shoulder Mill (Holder)
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
VAX toolholders and inserts use the Sandvik R390-series naming and seat geometry (order codes R390-11T3.. / R390-1704..) — this indicates dimensional compatibility with R390-standard components. Always verify the exact mounting dimensions on this page before ordering.
Workpiece material
Material applicability
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Specifications
Sizes & part numbers

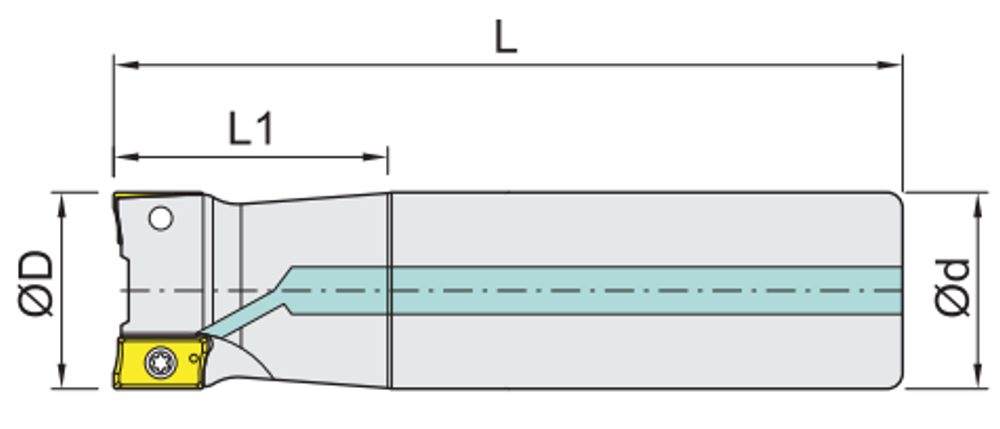

🔍 Click to zoom Dimension key
Shank / Imperial
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
L Overall length
ØD Cutting diameter
Ød Shank diameter — Not currently stored per-row — see the spec sheet PDF or order code for the exact shank size.
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
0.625
0.75
1
16
17
18
20
21
22
25
26
30
32
33
35
40
50
52
62
63
80
100
R390-11T3..
R390-1704..
Dry
Thru-coolant
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | D | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|---|---|
| VAX11-162-S16-150 | 16 mm | 150 | 16 | 28 | 2 | R390-11T3.. | Dry |
| VAX11-162-A16-150 | 16 mm | 150 | 16 | 28 | 2 | R390-11T3.. | Thru-coolant |
| VAX11-162-S16-200 | 16 mm | 200 | 16 | 28 | 2 | R390-11T3.. | Dry |
| VAX11-172-S16-150 | 17 mm | 150 | 16 | 25 | 2 | R390-11T3.. | Dry |
| VAX11-172-A16-150 | 17 mm | 150 | 16 | 25 | 2 | R390-11T3.. | Thru-coolant |
| VAX11-172-S16-200 | 17 mm | 200 | 16 | 25 | 2 | R390-11T3.. | Dry |
| VAX11-182-S16-150 | 18 mm | 150 | 16 | 25 | 2 | R390-11T3.. | Dry |
| VAX11-182-S16-200 | 18 mm | 200 | 16 | 25 | 2 | R390-11T3.. | Dry |
| VAX11-202-S20-150 | 20 mm | 150 | 20 | 30 | 2 | R390-11T3.. | Dry |
| VAX11-203-S20-150 | 20 mm | 150 | 20 | 30 | 3 | R390-11T3.. | Dry |
| VAX11-203-A20-150 | 20 mm | 150 | 20 | 30 | 3 | R390-11T3.. | Thru-coolant |
| VAX11-202-S20-200 | 20 mm | 200 | 20 | 30 | 2 | R390-11T3.. | Dry |
| VAX11-203-S20-200 | 20 mm | 200 | 20 | 30 | 3 | R390-11T3.. | Dry |
| VAX11-203-A20-200 | 20 mm | 200 | 20 | 30 | 3 | R390-11T3.. | Thru-coolant |
| VAX11-212-S20-150 | 21 mm | 150 | 20 | 25 | 2 | R390-11T3.. | Dry |
| VAX11-213-S20-150 | 21 mm | 150 | 20 | 25 | 3 | R390-11T3.. | Dry |
| VAX11-213-A20-150 | 21 mm | 150 | 20 | 25 | 3 | R390-11T3.. | Thru-coolant |
| VAX11-212-S20-200 | 21 mm | 200 | 20 | 25 | 2 | R390-11T3.. | Dry |
| VAX11-213-S20-200 | 21 mm | 200 | 20 | 25 | 3 | R390-11T3.. | Dry |
| VAX11-222-S20-150 | 22 mm | 150 | 20 | 30 | 2 | R390-11T3.. | Dry |
| VAX11-223-S20-150 | 22 mm | 150 | 20 | 30 | 3 | R390-11T3.. | Dry |
| VAX11-222-S20-200 | 22 mm | 200 | 20 | 30 | 2 | R390-11T3.. | Dry |
| VAX11-253-S25-150 | 25 mm | 150 | 25 | 35 | 3 | R390-11T3.. | Dry |
| VAX11-254-S25-150 | 25 mm | 150 | 25 | 35 | 4 | R390-11T3.. | Dry |
| VAX11-254-A25-150 | 25 mm | 150 | 25 | 35 | 4 | R390-11T3.. | Thru-coolant |
| VAX17-252-S25-150 | 25 mm | 150 | 25 | 32 | 2 | R390-1704.. | Dry |
| VAX11-253-S25-200 | 25 mm | 200 | 25 | 35 | 3 | R390-11T3.. | Dry |
| VAX11-253-A25-200 | 25 mm | 200 | 25 | 35 | 3 | R390-11T3.. | Thru-coolant |
| VAX11-254-S25-200 | 25 mm | 200 | 25 | 35 | 4 | R390-11T3.. | Dry |
| VAX17-252-S25-200 | 25 mm | 200 | 25 | 32 | 2 | R390-1704.. | Dry |
| VAX11-263-S25-150 | 26 mm | 150 | 25 | 25 | 3 | R390-11T3.. | Dry |
| VAX11-264-S25-150 | 26 mm | 150 | 25 | 25 | 4 | R390-11T3.. | Dry |
| VAX17-262-S25-150 | 26 mm | 150 | 25 | 32 | 2 | R390-1704.. | Dry |
| VAX11-263-S25-200 | 26 mm | 200 | 25 | 25 | 3 | R390-11T3.. | Dry |
| VAX11-264-S25-200 | 26 mm | 200 | 25 | 25 | 4 | R390-11T3.. | Dry |
| VAX11-264-A25-200 | 26 mm | 200 | 25 | 25 | 4 | R390-11T3.. | Thru-coolant |
| VAX17-262-S25-200 | 26 mm | 200 | 25 | 32 | 2 | R390-1704.. | Dry |
| VAX17-262-S25-250 | 26 mm | 250 | 25 | 32 | 2 | R390-1704.. | Dry |
| VAX11-304-S32-150 | 30 mm | 150 | 32 | 40 | 4 | R390-11T3.. | Dry |
| VAX11-304-S32-200 | 30 mm | 200 | 32 | 40 | 4 | R390-11T3.. | Dry |
| VAX11-304-S32-250 | 30 mm | 250 | 32 | 40 | 4 | R390-11T3.. | Dry |
| VAX11-324-S32-150 | 32 mm | 150 | 32 | 40 | 4 | R390-11T3.. | Dry |
| VAX17-323-S32-150 | 32 mm | 150 | 32 | 35 | 3 | R390-1704.. | Dry |
| VAX11-324-S32-200 | 32 mm | 200 | 32 | 40 | 4 | R390-11T3.. | Dry |
| VAX17-323-S32-200 | 32 mm | 200 | 32 | 35 | 3 | R390-1704.. | Dry |
| VAX11-324-S32-250 | 32 mm | 250 | 32 | 40 | 4 | R390-11T3.. | Dry |
| VAX11-334-S32-150 | 33 mm | 150 | 32 | 32 | 4 | R390-11T3.. | Dry |
| VAX17-333-S32-150 | 33 mm | 150 | 32 | 35 | 3 | R390-1704.. | Dry |
| VAX11-334-S32-200 | 33 mm | 200 | 32 | 32 | 4 | R390-11T3.. | Dry |
| VAX11-334-A32-200 | 33 mm | 200 | 32 | 32 | 4 | R390-11T3.. | Thru-coolant |
| VAX17-333-S32-200 | 33 mm | 200 | 32 | 35 | 3 | R390-1704.. | Dry |
| VAX11-334-S32-250 | 33 mm | 250 | 32 | 32 | 4 | R390-11T3.. | Dry |
| VAX17-333-S32-250 | 33 mm | 250 | 32 | 35 | 3 | R390-1704.. | Dry |
| VAX11-354-S32-150 | 35 mm | 150 | 32 | 32 | 4 | R390-11T3.. | Dry |
| VAX11-354-S32-200 | 35 mm | 200 | 32 | 32 | 4 | R390-11T3.. | Dry |
| VAX11-354-S32-250 | 35 mm | 250 | 32 | 32 | 4 | R390-11T3.. | Dry |
| VAX11-162-MD14 | 16 mm | 26 | - | - | 2 | R390-11T3.. | Dry |
| VAX11-172-MD14 | 17 mm | 26 | - | - | 2 | R390-11T3.. | Dry |
| VAX11-202-MD18 | 20 mm | 30 | - | - | 2 | R390-11T3.. | Dry |
| VAX11-203-MD18 | 20 mm | 30 | - | - | 3 | R390-11T3.. | Dry |
| VAX11-212-MD18 | 21 mm | 30 | - | - | 2 | R390-11T3.. | Dry |
| VAX11-213-MD18 | 21 mm | 30 | - | - | 3 | R390-11T3.. | Dry |
| VAX11-253-MD23 | 25 mm | 35 | - | - | 3 | R390-11T3.. | Dry |
| VAX11-253-AMD23 | 25 mm | 35 | - | - | 3 | R390-11T3.. | Thru-coolant |
| VAX11-254-MD23 | 25 mm | 35 | - | - | 4 | R390-11T3.. | Dry |
| VAX17-252-MD23 | 25 mm | 35 | - | - | 2 | R390-1704.. | Dry |
| VAX11-263-MD23 | 26 mm | 35 | - | - | 3 | R390-11T3.. | Dry |
| VAX11-263-AMD23 | 26 mm | 35 | - | - | 3 | R390-11T3.. | Thru-coolant |
| VAX11-264-MD23 | 26 mm | 35 | - | - | 4 | R390-11T3.. | Dry |
| VAX17-262-MD23 | 26 mm | 35 | - | - | 2 | R390-1704.. | Dry |
| VAX11-324-MD29 | 32 mm | 43 | - | - | 4 | R390-11T3.. | Dry |
| VAX11-325-MD29 | 32 mm | 43 | - | - | 5 | R390-11T3.. | Dry |
| VAX17-323-MD29 | 32 mm | 43 | - | - | 3 | R390-1704.. | Dry |
| VAX11-334-MD29 | 33 mm | 43 | - | - | 4 | R390-11T3.. | Dry |
| VAX11-335-MD29 | 33 mm | 43 | - | - | 5 | R390-11T3.. | Dry |
| VAX17-333-MD29 | 33 mm | 43 | - | - | 3 | R390-1704.. | Dry |
| VAX11-354-MD29 | 35 mm | 43 | - | - | 4 | R390-11T3.. | Dry |
| VAX11-355-MD29 | 35 mm | 43 | - | - | 5 | R390-11T3.. | Dry |
| VAX11-04006-16.0 | 40 mm | 40 | - | - | 6 | R390-11T3.. | Dry |
| VAX11-05005-22.0 | 50 mm | 40 | - | - | 5 | R390-11T3.. | Dry |
| VAX11-05007-22.0 | 50 mm | 40 | - | - | 7 | R390-11T3.. | Dry |
| VAX17-05004-22.0 | 50 mm | 50 | - | - | 4 | R390-1704.. | Dry |
| VAX11-05005-25.4 | 50 mm | 50 | - | - | 5 | R390-11T3.. | Dry |
| VAX11-05007-25.4 | 50 mm | 50 | - | - | 7 | R390-11T3.. | Dry |
| VAX17-05004-25.4 | 50 mm | 50 | - | - | 4 | R390-1704.. | Dry |
| VAX17-05005-25.4 | 50 mm | 50 | - | - | 5 | R390-1704.. | Dry |
| VAX17-05205-25.4 | 52 mm | 50 | - | - | 5 | R390-1704.. | Dry |
| VAX17-06206-25.4 | 62 mm | 50 | - | - | 6 | R390-1704.. | Dry |
| VAX11-06308-22.0 | 63 mm | 40 | - | - | 8 | R390-11T3.. | Dry |
| VAX11-06308-A22.0 | 63 mm | 40 | - | - | 8 | R390-11T3.. | Thru-coolant |
| VAX11-06308-25.4 | 63 mm | 50 | - | - | 8 | R390-11T3.. | Dry |
| VAX17-06306-25.4 | 63 mm | 50 | - | - | 6 | R390-1704.. | Dry |
| VAX11-08009-25.4 | 80 mm | 50 | - | - | 9 | R390-11T3.. | Dry |
| VAX17-08006-25.4 | 80 mm | 50 | - | - | 6 | R390-1704.. | Dry |
| VAX11-10011-31.75 | 100 mm | 50 | - | - | 11 | R390-11T3.. | Dry |
| VAX11-I052-U05-28T | 0.625″ | 3.54 | 0.625 | 1.25 | 2 | R390-11T3.. | Dry |
| VAX11-I063-S06-48T | 0.75″ | 6 | 0.75 | 2 | 3 | R390-11T3.. | Dry |
| VAX17-I082-S08-48T | 1″ | 6 | 1 | 1.75 | 2 | R390-1704.. | Dry |
Compatibility
Compatible inserts
R39011T3 series
R3901704 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
