Shangin Milling

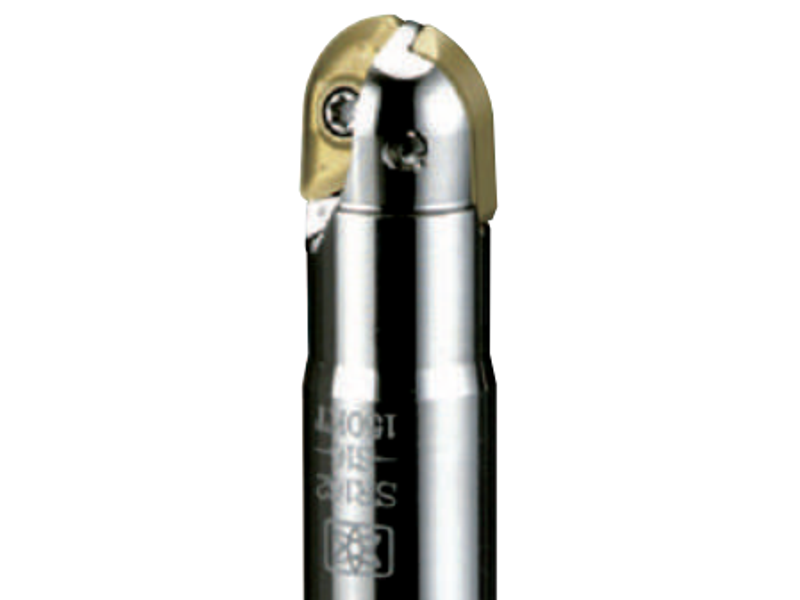

Shangin SR Ball End Mill (Holder)
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Workpiece material
Material applicability
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Specifications
Sizes & part numbers
🔍 Click to zoom Dimension key
Shank
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
L Overall length
ØD Cutting diameter
Ød Shank diameter — Not currently stored per-row — see the spec sheet PDF or order code for the exact shank size.
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
12
16
20
25
ZP 1200 ER-..
ZP 1600 ER-..
ZP 2000 ER-..
ZP 2500 ER-..
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
| ORDER NO. | D | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT |
|---|---|---|---|---|---|---|
| SR122-S12-150 | 12 mm | 150 | 12 | 25 | 2 | ZP 1200 ER-.. |
| SR122-S12-200 | 12 mm | 200 | 12 | 25 | 2 | ZP 1200 ER-.. |
| SR162-S16-150 | 16 mm | 150 | 16 | 30 | 2 | ZP 1600 ER-.. |
| SR162-S16-200 | 16 mm | 200 | 16 | 30 | 2 | ZP 1600 ER-.. |
| SR162-S20-200 | 16 mm | 200 | 20 | 35 | 2 | ZP 1600 ER-.. |
| SR202-S20-150 | 20 mm | 150 | 20 | 35 | 2 | ZP 2000 ER-.. |
| SR202-S25-150 | 20 mm | 150 | 25 | 50 | 2 | ZP 2000 ER-.. |
| SR202-S20-200 | 20 mm | 200 | 20 | 35 | 2 | ZP 2000 ER-.. |
| SR202-S25-200 | 20 mm | 200 | 25 | 50 | 2 | ZP 2000 ER-.. |
| SR252-S25-150 | 25 mm | 150 | 25 | 40 | 2 | ZP 2500 ER-.. |
| SR252-S25-200 | 25 mm | 200 | 25 | 40 | 2 | ZP 2500 ER-.. |
| SR252-S25-250 | 25 mm | 250 | 25 | 40 | 2 | ZP 2500 ER-.. |
| SR122-MD11 | 12 mm | 23 | - | - | 2 | ZP 1200 ER-.. |
| SR162-MD14 | 16 mm | 30 | - | - | 2 | ZP 1600 ER-.. |
| SR202-MD18 | 20 mm | 35 | - | - | 2 | ZP 2000 ER-.. |
| SR252-MD23 | 25 mm | 40 | - | - | 2 | ZP 2500 ER-.. |
Compatibility
Compatible inserts
ZP1200 series
ZP1600 series
ZP2000 series
ZP2500 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
