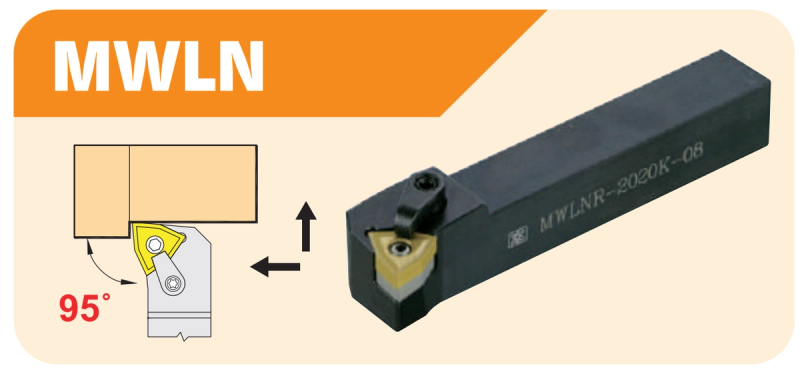

External turning holders for WN.. (WNMG) inserts
External turning holders for WN.. (WNMG) inserts: shank height 16–32 mm, overall length 125–170 mm, 11 catalogue items.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
SUB-SERIES
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

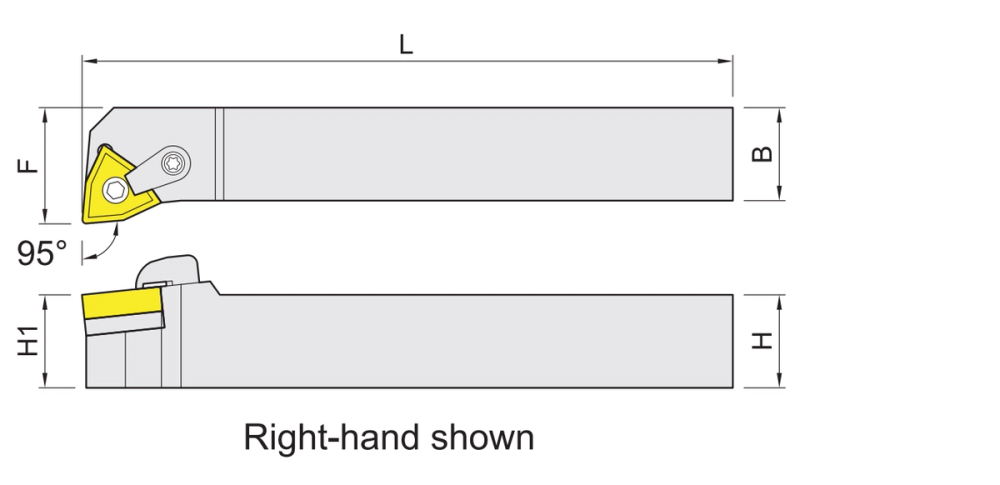

| ORDER NO. | H | B | OAL | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|
| MWLNR/L-2020K-08 | 20 | 20 | 125 | WN..0804.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: WMS432 |
| MWLNR/L-2525M-08 | 25 | 25 | 150 | WN..0804.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: WMS432 |
| MWLNR/L-3232P-08 | 32 | 32 | 170 | WN..0804.. | Cutting-edge height F: 40 · Screw spec: MS630TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: WMS432 |
| MWLNR/L-2020K-08N | 20 | 20 | 125 | WN..0804.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: WMS432 |
| MWLNR/L-2525M-08N | 25 | 25 | 150 | WN..0804.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: WMS432 |
| DWLNR/L-2020K-08N | 20 | 20 | 125 | WN..0804.. | Cutting-edge height F: 25 · Screw spec: MS6011H · Clamp: MCD425 · Shim: WMS432 |
| DWLNR/L-2525M-08 | 25 | 25 | 150 | WN..0804.. | Cutting-edge height F: 32 · Screw spec: MS6011H · Clamp: MCD425 · Shim: WMS432 |
| DWLNR/L-3232P-08 | 32 | 32 | 170 | WN..0804.. | Cutting-edge height F: 40 · Screw spec: MS6011H · Clamp: MCD425 · Shim: WMS432 |
| WWLNR/L-1620K-08 | 16 | 20 | 125 | WN..0804.. | Cutting-edge height F: 25 · Screw spec: MCS3S-09 · Wrench spec: PL30 · Clamp: WCW6-P4 · Pin: MCP4 · Shim: WMS432 |
| WWLNR/L-2020K-08 | 20 | 20 | 125 | WN..0804.. | Cutting-edge height F: 25 · Screw spec: MCS3S-09 · Wrench spec: PL30 · Clamp: WCW6-P4 · Pin: MCP4 · Shim: WMS432 |
| WWLNR/L-2525M-08 | 25 | 25 | 150 | WN..0804.. | Cutting-edge height F: 32 · Screw spec: MCS3S-09 · Wrench spec: PL30 · Clamp: WCW6-P4 · Pin: MCP4 · Shim: WMS432 |
H = shank height · B = shank width
