External turning holders for TN.. (TNMG) inserts
External turning holders for TN.. (TNMG) inserts: shank height 12–32 mm, overall length 125–170 mm, 28 catalogue items.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
SUB-SERIES
TN..1604..
TN..2204..
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | H | B | OAL | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|

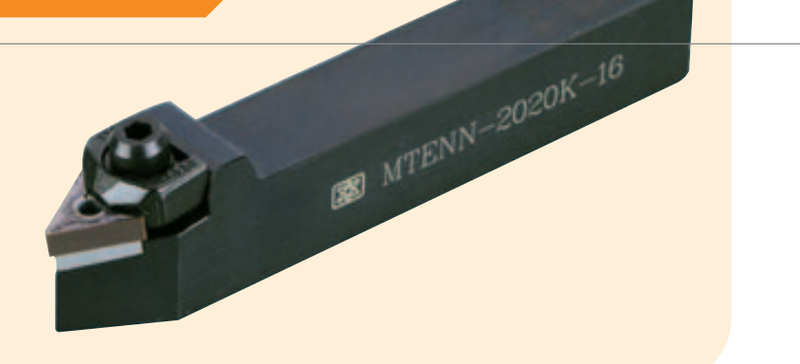

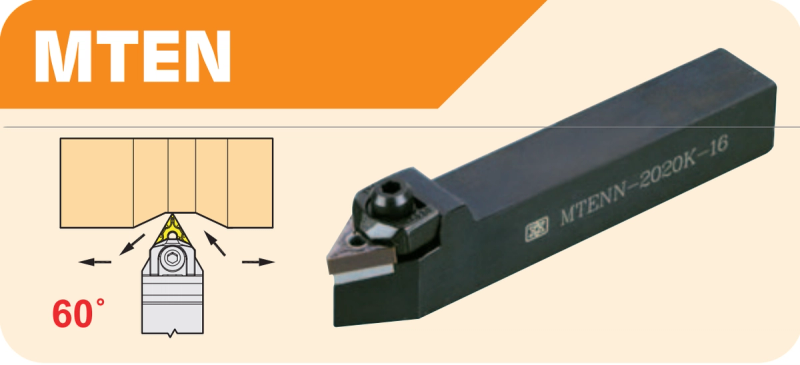

| MTENN-1216K-16 | 12 | 16 | 125 | TN..1604.. | Cutting-edge height F: 8 · Screw spec: MCS3S-09 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTENN-1616K-16 | 16 | 16 | 125 | TN..1604.. | Cutting-edge height F: 8 · Screw spec: MCS3S-09 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTENN-2020K-16 | 20 | 20 | 125 | TN..1604.. | Cutting-edge height F: 10 · Screw spec: MCS3S-09 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTENN-2525M-16 | 25 | 25 | 150 | TN..1604.. | Cutting-edge height F: 12.5 · Screw spec: MCS3S-09 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTENN-2525M-22 | 25 | 25 | 150 | TN..2204.. | Cutting-edge height F: 12.5 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW4-P40 · Pin: MCP4-A · Shim: TWS432 |
| MTENN-3232P-22 | 32 | 32 | 170 | TN..2204.. | Cutting-edge height F: 16 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW4-P40 · Pin: MCP4-A · Shim: TWS432 |
| DTFNR/L-1616K-16 | 16 | 16 | 125 | TN..1604.. | Cutting-edge height F: 20 · Screw spec: MS4008H · Wrench spec: PL25 |
| DTFNR/L-2020K-16 | 20 | 20 | 125 | TN..1604.. | Cutting-edge height F: 25 · Screw spec: MS4008H · Wrench spec: PL25 |
| DTFNR/L-2525M-16 | 25 | 25 | 150 | TN..1604.. | Cutting-edge height F: 32 · Screw spec: MS4008H · Wrench spec: PL25 |
| DTFNR/L-3232P-16 | 32 | 32 | 170 | TN..1604.. | Cutting-edge height F: 40 · Screw spec: MS4008H · Wrench spec: PL25 |
| MTFNR/L-1616K-16 | 16 | 16 | 125 | TN..1604.. | Cutting-edge height F: 20 · Screw spec: MS625TX · Wrench spec: PL20 · Clamp: MC620 · Pin: MLP34L-A · Shim: TMS322 |
| MTFNR/L-2020K-16 | 20 | 20 | 125 | TN..1604.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL20 · Clamp: MC620 · Pin: MLP34L-A · Shim: TMS322 |
| MTFNR/L-2525M-16 | 25 | 25 | 150 | TN..1604.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL20 · Clamp: MC620 · Pin: MLP34L-A · Shim: TMS322 |
| PTFNR/L-2020K-16 | 20 | 20 | 125 | TN..1604.. | Cutting-edge height F: 25 · Screw spec: LCS3 · Wrench spec: PL25 |
| PTFNR/L-2525M-16 | 25 | 25 | 150 | TN..1604.. | Cutting-edge height F: 32 · Screw spec: LCS3 · Wrench spec: PL25 |
| DTJNR/L-2020K-16 | 20 | 20 | 125 | TN..1604.. | Cutting-edge height F: 25 · Screw spec: MS4008H · Wrench spec: PL25 |
| DTJNR/L-2525M-16 | 25 | 25 | 150 | TN..1604.. | Cutting-edge height F: 32 · Screw spec: MS4008H · Wrench spec: PL25 |
| DTJNR/L-3232P-16 | 32 | 32 | 170 | TN..1604.. | Cutting-edge height F: 40 · Screw spec: MS4008H · Wrench spec: PL25 |
| MTJNR/L-1216K-16 | 12 | 16 | 125 | TN..1604.. | Cutting-edge height F: 21 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTJNR/L-1616K-16 | 16 | 16 | 125 | TN..1604.. | Cutting-edge height F: 21 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTJNR/L-2020K-16 | 20 | 20 | 125 | TN..1604.. | Cutting-edge height F: 25 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTJNR/L-2525M-16 | 25 | 25 | 150 | TN..1604.. | Cutting-edge height F: 32 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTJNR/L-2525M-22 | 25 | 25 | 150 | TN..2204.. | Cutting-edge height F: 32 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW4A-P40 · Pin: MCP4-A · Shim: TWS432 |
| MTJNR/L-3232P-16 | 32 | 32 | 170 | TN..1604.. | Cutting-edge height F: 40 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTJNR/L-3232P-22 | 32 | 32 | 170 | TN..2204.. | Cutting-edge height F: 40 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW4A-P40 · Pin: MCP4-A · Shim: TWS432 |
| MTQNR/L-2020K-16 | 20 | 20 | 125 | TN..1604.. | Cutting-edge height F: 25 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTQNR/L-2525M-16 | 25 | 25 | 150 | TN..1604.. | Cutting-edge height F: 32 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |
| MTQNR/L-3232P-16 | 32 | 32 | 170 | TN..1604.. | Cutting-edge height F: 40 · Screw spec: MCS3S-11 · Wrench spec: PL30 · Clamp: MCW3-P40 · Pin: MCP3 · Shim: TWS322 |

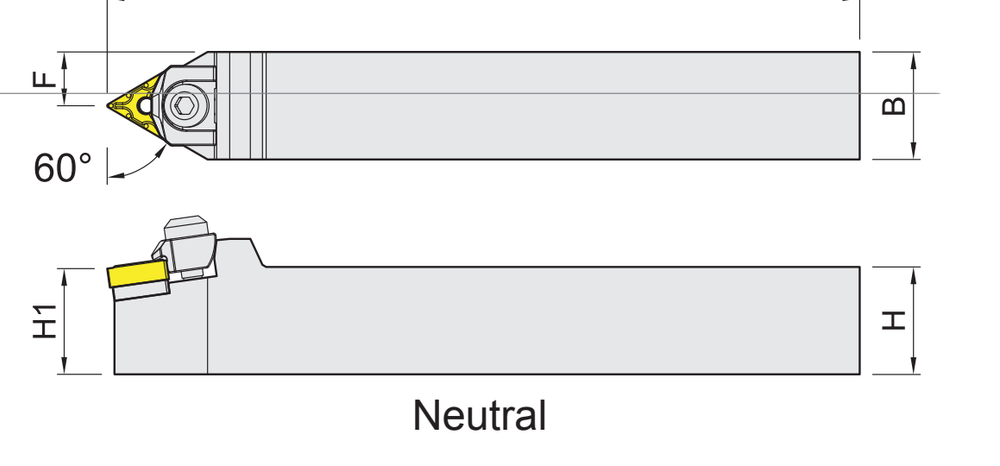

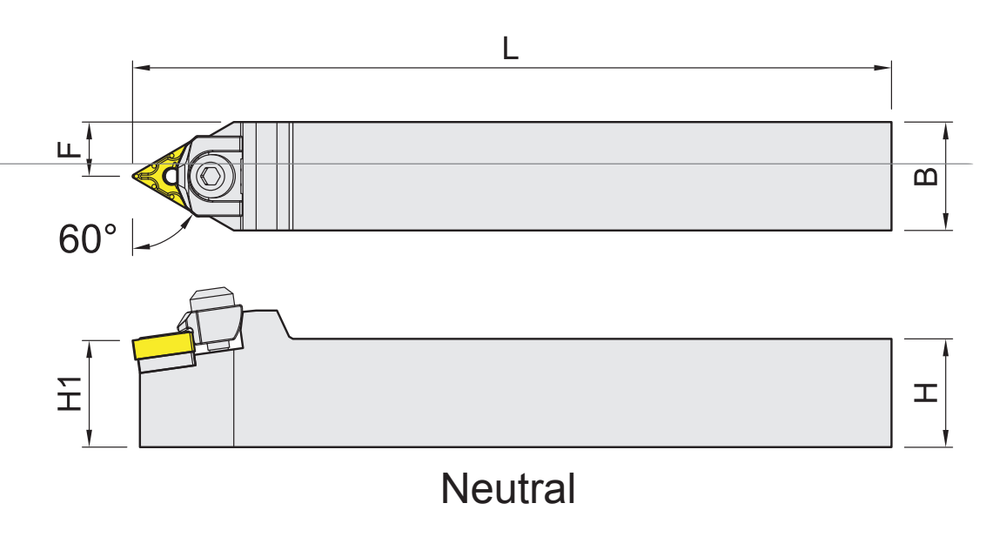

H = shank height · B = shank width
