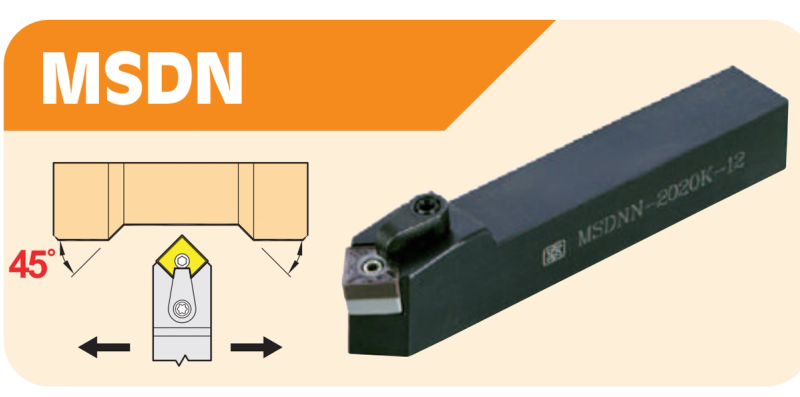

External turning holders for SN.. (SNMG) inserts
External turning holders for SN.. (SNMG) inserts: shank height 16–25 mm, overall length 125–150 mm, 6 catalogue items.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
SUB-SERIES
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | H | B | OAL | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|
| MSDNN-1616K-12 | 16 | 16 | 125 | SN..1204.. | Cutting-edge height F: 8 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: SMS432 |
| MSDNN-2020K-12 | 20 | 20 | 125 | SN..1204.. | Cutting-edge height F: 10 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: SMS432 |
| MSDNN-2525M-12 | 25 | 25 | 150 | SN..1204.. | Cutting-edge height F: 12.5 · Screw spec: MS630TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: SMS432 |
| MSSNR/L-1616K-12 | 16 | 16 | 125 | SN..1204.. | Cutting-edge height F: 20 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: SMS432 |
| MSSNR/L-2020K-12 | 20 | 20 | 125 | SN..1204.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: SMS432 |
| MSSNR/L-2525M-12 | 25 | 25 | 150 | SN..1204.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL25 · Clamp: MC620 · Pin: MLP46-A · Shim: SMS432 |

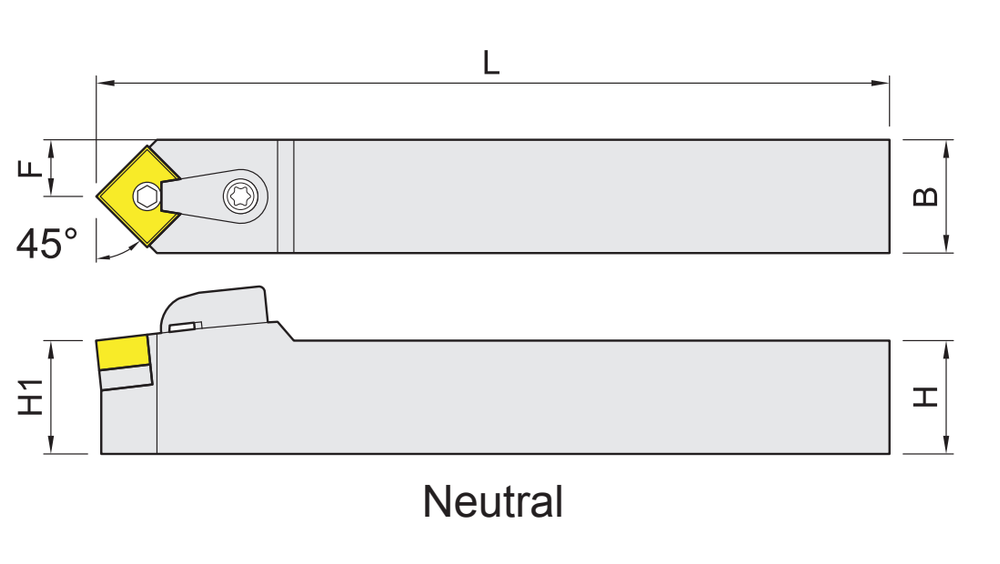

H = shank height · B = shank width
