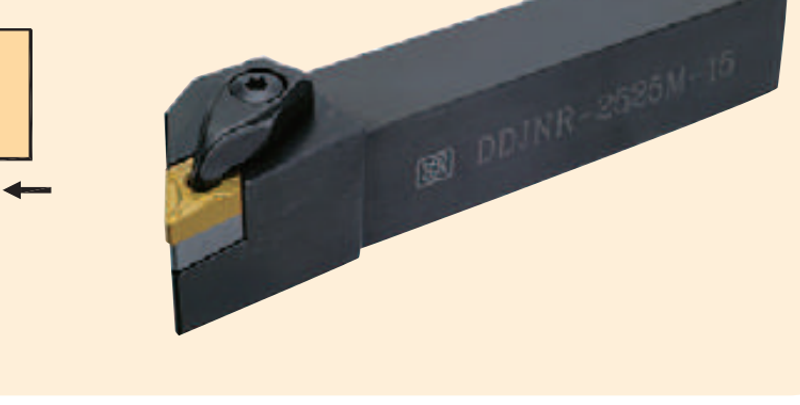

External turning holders for DN.. (DNMG) inserts
External turning holders for DN.. (DNMG) inserts: shank height 20–32 mm, overall length 125–170 mm, 16 catalogue items.
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
SUB-SERIES
DN..1504..
DN..1506..
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | H | B | OAL | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|

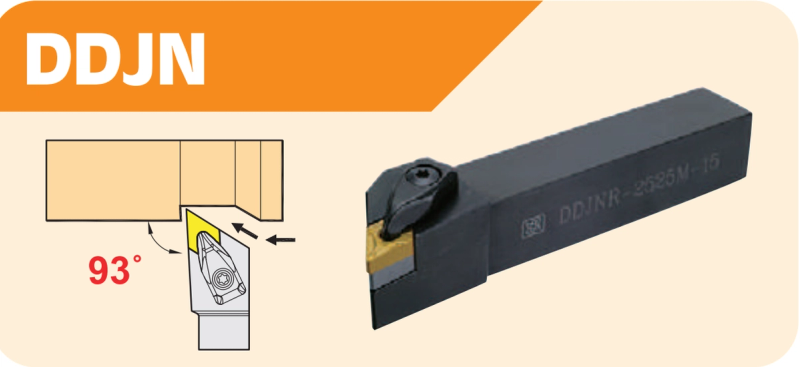

| DDJNR/L-2020K-1504 | 20 | 20 | 125 | DN..1504.. | Cutting-edge height F: 25 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS442 |
| DDJNR/L-2020K-1506 | 20 | 20 | 125 | DN..1506.. | Cutting-edge height F: 25 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS432 |
| DDJNR/L-2525M-1504 | 25 | 25 | 150 | DN..1504.. | Cutting-edge height F: 32 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS442 |
| DDJNR/L-2525M-1506 | 25 | 25 | 150 | DN..1506.. | Cutting-edge height F: 32 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS432 |
| DDJNR/L-3232P-1504 | 32 | 32 | 170 | DN..1504.. | Cutting-edge height F: 40 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS442 |
| DDJNR/L-3232P-1506 | 32 | 32 | 170 | DN..1506.. | Cutting-edge height F: 40 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS432 |
| MDJNR/L-2020K-1504 | 20 | 20 | 125 | DN..1504.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC622 · Pin: MLP46L-A · Shim: DMS442 |
| MDJNR/L-2020K-1506 | 20 | 20 | 125 | DN..1506.. | Cutting-edge height F: 25 · Screw spec: MS625TX · Wrench spec: PL25 · Clamp: MC622 · Pin: MLP46L-A · Shim: DMS432 |
| MDJNR/L-2525M-1504 | 25 | 25 | 150 | DN..1504.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL25 · Clamp: MC622 · Pin: MLP46L-A · Shim: DMS442 |
| MDJNR/L-2525M-1506 | 25 | 25 | 150 | DN..1506.. | Cutting-edge height F: 32 · Screw spec: MS630TX · Wrench spec: PL25 · Clamp: MC622 · Pin: MLP46L-A · Shim: DMS432 |
| DDQNR/L-2020K-1504 | 20 | 20 | 125 | DN..1504.. | Cutting-edge height F: 25 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS442 |
| DDQNR/L-2020K-1506 | 20 | 20 | 125 | DN..1506.. | Cutting-edge height F: 25 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS432 |
| DDQNR/L-2525M-1504 | 25 | 25 | 150 | DN..1504.. | Cutting-edge height F: 32 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS442 |
| DDQNR/L-2525M-1506 | 25 | 25 | 150 | DN..1506.. | Cutting-edge height F: 32 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS432 |
| DDQNR/L-3232P-1504 | 32 | 32 | 170 | DN..1504.. | Cutting-edge height F: 40 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS442 |
| DDQNR/L-3232P-1506 | 32 | 32 | 170 | DN..1506.. | Cutting-edge height F: 40 · Screw spec: MS6011H · Clamp: MCD430 · Shim: DMS432 |

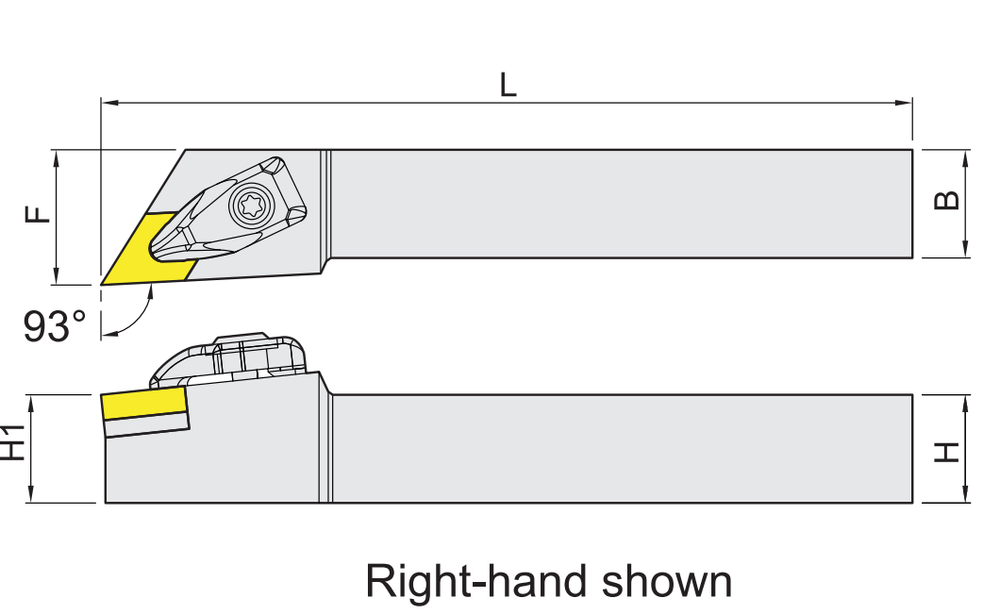

H = shank height · B = shank width
