Shangin Drilling

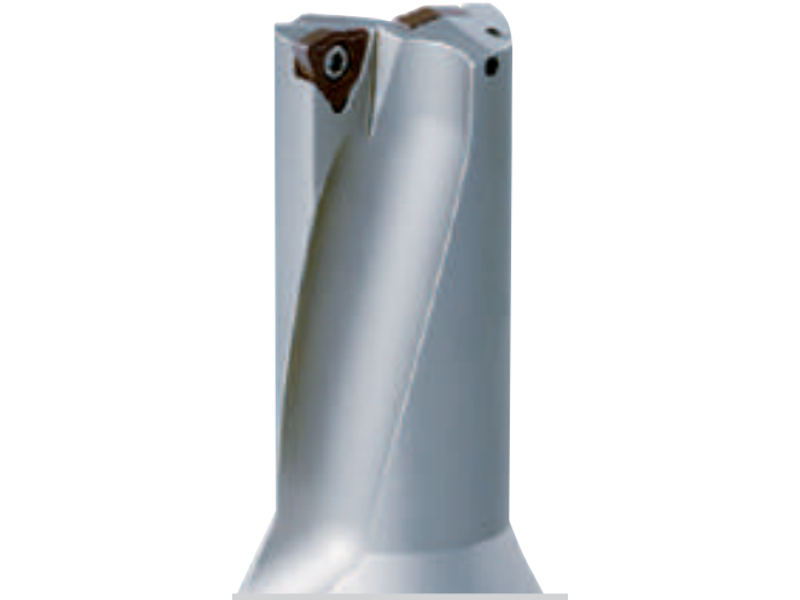

DW Indexable U-Drill (Holder)
Workpiece material (ISO)
P · SteelM · Stainless
DW toolholders use the WC-format indexable insert pocket (order codes WCMX../WCMT../WCKT..) — this indicates dimensional compatibility with WC-format inserts. Always verify the exact insert size code on this page before ordering.
Workpiece material
Material applicability
P · SteelM · Stainless
Specifications
Sizes & part numbers
🔍 Click to zoom Dimension key
D Cutting diameter
d Shank diameter
L1 Drilling depth
Filtered from catalog
18
18.5
19
20
20.5
21
21.5
22
22.5
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
WC..030208
WC..040208
WC..050308
WC..06T308
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list
| ORDER NO. | D | SHANK | L1 | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|
| DW18-C20-27(1.5D) | 18 mm | 20 | 27 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW18-C20-36(2D) | 18 mm | 20 | 36 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW18-C20-54(3D) | 18 mm | 20 | 54 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW18-C25-36(2D) | 18 mm | 25 | 36 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW18-C25-54(3D) | 18 mm | 25 | 54 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW18.5-C20-28(1.5D) | 18.5 mm | 20 | 28 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW18.5-C25-37(2D) | 18.5 mm | 25 | 37 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW18.5-C25-55.5(3D) | 18.5 mm | 25 | 55.5 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW19-C20-38(2D) | 19 mm | 20 | 38 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW19-C20-57(3D) | 19 mm | 20 | 57 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW19-C25-38(2D) | 19 mm | 25 | 38 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW19-C25-57(3D) | 19 mm | 25 | 57 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW20-C20-40(2D) | 20 mm | 20 | 40 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW20-C20-60(3D) | 20 mm | 20 | 60 | WC..030208 | d1 collar Ø (mm): 29 · L2 (mm): 52 · L3 (mm): 24 |
| DW20-C25-40(2D) | 20 mm | 25 | 40 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW20-C25-60(3D) | 20 mm | 25 | 60 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW20.5-C25-61.5(3D) | 20.5 mm | 25 | 61.5 | WC..030208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW21-C25-42(2D) | 21 mm | 25 | 42 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW21-C25-63(3D) | 21 mm | 25 | 63 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW21-C25-84(4D) | 21 mm | 25 | 84 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW21.5-C25-64.5(3D) | 21.5 mm | 25 | 64.5 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW22-C25-44(2D) | 22 mm | 25 | 44 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW22-C25-66(3D) | 22 mm | 25 | 66 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW22-C25-88(4D) | 22 mm | 25 | 88 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW22.5-C25-67.5(3D) | 22.5 mm | 25 | 67.5 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW23-C25-46(2D) | 23 mm | 25 | 46 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW23-C25-69(3D) | 23 mm | 25 | 69 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW23-C25-92(4D) | 23 mm | 25 | 92 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW24-C25-48(2D) | 24 mm | 25 | 48 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW24-C25-72(3D) | 24 mm | 25 | 72 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW24-C25-96(4D) | 24 mm | 25 | 96 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW25-C25-50(2D) | 25 mm | 25 | 50 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW25-C25-75(3D) | 25 mm | 25 | 75 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW25-C25-100(4D) | 25 mm | 25 | 100 | WC..040208 | d1 collar Ø (mm): 35 · L2 (mm): 56 · L3 (mm): 24 |
| DW26-C32-52(2D) | 26 mm | 32 | 52 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW26-C32-78(3D) | 26 mm | 32 | 78 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW26-C32-104(4D) | 26 mm | 32 | 104 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW27-C32-54(2D) | 27 mm | 32 | 54 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW27-C32-81(3D) | 27 mm | 32 | 81 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW27-C32-108(4D) | 27 mm | 32 | 108 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW28-C32-56(2D) | 28 mm | 32 | 56 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW28-C32-84(3D) | 28 mm | 32 | 84 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW28-C32-112(4D) | 28 mm | 32 | 112 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW29-C32-58(2D) | 29 mm | 32 | 58 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW29-C32-87(3D) | 29 mm | 32 | 87 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW29-C32-116(4D) | 29 mm | 32 | 116 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW30-C32-60(2D) | 30 mm | 32 | 60 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW30-C32-90(3D) | 30 mm | 32 | 90 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW30-C32-120(4D) | 30 mm | 32 | 120 | WC..050308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW31-C32-62(2D) | 31 mm | 32 | 62 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW31-C32-93(3D) | 31 mm | 32 | 93 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW31-C32-124(4D) | 31 mm | 32 | 124 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW32-C32-64(2D) | 32 mm | 32 | 64 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW32-C32-96(3D) | 32 mm | 32 | 96 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW32-C32-128(4D) | 32 mm | 32 | 128 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW33-C32-66(2D) | 33 mm | 32 | 66 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW33-C32-99(3D) | 33 mm | 32 | 99 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW33-C32-132(4D) | 33 mm | 32 | 132 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW34-C32-68(2D) | 34 mm | 32 | 68 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW34-C32-102(3D) | 34 mm | 32 | 102 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW34-C32-136(4D) | 34 mm | 32 | 136 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW35-C32-70(2D) | 35 mm | 32 | 70 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW35-C32-105(3D) | 35 mm | 32 | 105 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW35-C32-140(4D) | 35 mm | 32 | 140 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW36-C32-72(2D) | 36 mm | 32 | 72 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW36-C32-108(3D) | 36 mm | 32 | 108 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW36-C32-144(4D) | 36 mm | 32 | 144 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW37-C32-74(2D) | 37 mm | 32 | 74 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW37-C32-111(3D) | 37 mm | 32 | 111 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW37-C32-148(4D) | 37 mm | 32 | 148 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW38-C32-76(2D) | 38 mm | 32 | 76 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW38-C32-114(3D) | 38 mm | 32 | 114 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW38-C32-152(4D) | 38 mm | 32 | 152 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW39-C32-78(2D) | 39 mm | 32 | 78 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW39-C32-117(3D) | 39 mm | 32 | 117 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW39-C32-156(4D) | 39 mm | 32 | 156 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW40-C32-80(2D) | 40 mm | 32 | 80 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW40-C32-120(3D) | 40 mm | 32 | 120 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
| DW40-C32-160(4D) | 40 mm | 32 | 160 | WC..06T308 | d1 collar Ø (mm): 43 · L2 (mm): 60 · L3 (mm): 29 |
Compatibility
Compatible inserts
WC030208 series
WC040208 series
WC050308 series
WC06T308 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
