Milling

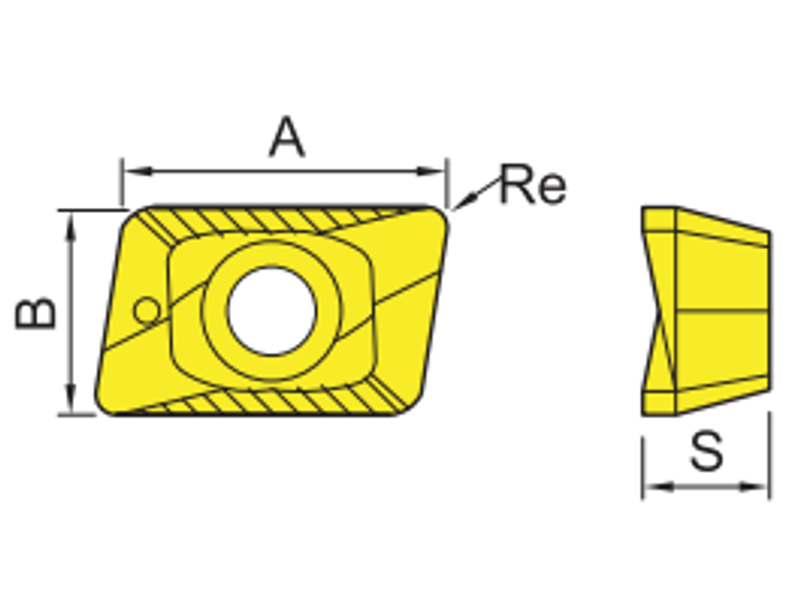

XOMT Indexable Milling Insert
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
XOMT Indexable Milling Inserts in XOMT-0602, XOMT-0903 and 2 more size codes, GW762 and GM471 grades, corner radius 0.2–0.8 mm, 8 catalogue items.
Workpiece material
Material applicability
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

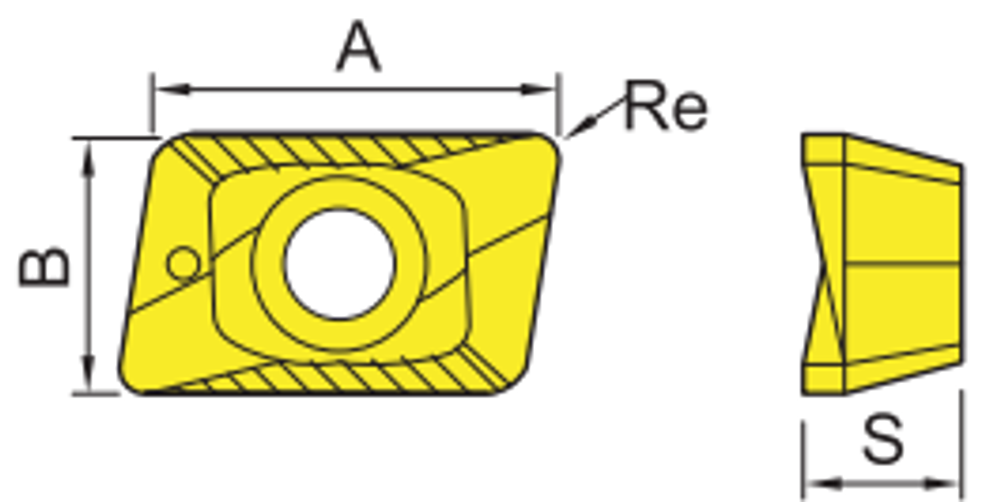

| ORDER NO. | CORNER R | EDGE LENGTH B | Thickness | IC | GRADE |
|---|---|---|---|---|---|
| XOET060204FE03 | 0.4 | 4.09 | 2.45 | 6.925 | |
| XOMT060204MK05 | 0.4 | 4.09 | 2.45 | 6.925 | |
| XOMT060202MK05 | 0.2 | 4.09 | 2.45 | 6.94 | |
| XOMT090304TM06 | 0.4 | 6.35 | 3.21-3.65 | 10.35 | |
| XOMT10T304TM07 | 0.4 | 6.86 | 3.83 | 10.39 | |
| XOMT120408TM08 | 0.8 | 8.18 | 3.93-4.15 | 11.79 | |
| XOMT060208MK05 | 0.8 | - | - | - | |
| XOMT090308TM06 | 0.8 | - | - | - |
Thickness = blade/insert thickness · IC = inscribed-circle diameter
Compatibility
Compatible holders
XOMT0602 series
XOMT0903 series
XOMT10T3 series
XOMT1204 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
