JDMT Indexable Milling Insert
Workpiece material (ISO)
P · SteelM · StainlessN · Non-ferrous
JDMT Indexable Milling Inserts in JDMT-1003 and JDMT-1505 size codes, PTH30E and WH10 grades, corner radius 0.4–0.8 mm, 4 catalogue items.
Workpiece material
Material applicability
P · SteelM · StainlessN · Non-ferrous
Specifications
Sizes & part numbers
🔍 Click to zoom Filtered from catalog
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Contact us →
Tap + to add sizes to your quote list

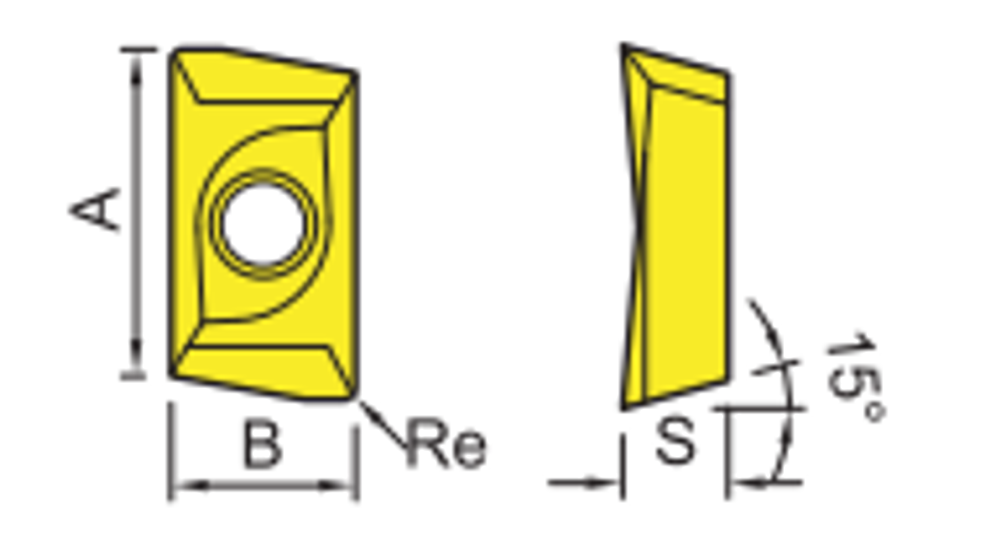

| ORDER NO. | CORNER R | EDGE LENGTH B | Thickness | IC | GRADE |
|---|---|---|---|---|---|
| JDMT100308R | 0.8 | 6.1 | 3.5 | 10.8 | |
| JDET100304R-FA | 0.4 | 6.1 | 3.5 | 10.8 | |
| JDMT150508R | 0.8 | 9.1 | 5 | 15.8 | |
| JDET150504R-FA | 0.4 | 9.1 | 5 | 15.8 |
Thickness = blade/insert thickness · IC = inscribed-circle diameter
Compatibility
Compatible holders
JDMT1003 series
JDMT1505 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
