NACHI 2SE Square End Mill (2F)
NACHI Milling

NACHI 2SE Square End Mill (2F)

Workpiece material (ISO)
P · SteelM · StainlessN · Non-ferrous

2-flute HSS-Co square end mill for machining steel, stainless steel and non-ferrous metals. Ø1–50 mm in 0.1 mm diameter increments (147 catalogue items). Ships in a single coating option. Part of NACHI's milling tool range. Rated for ISO P/M/N material classes.

Ask on LINE
Features & uses

Engineered for performance

1

HSS-Co Substrate, Uncoated

A cobalt-alloyed high-speed-steel body with no coating, across all 147 catalogue sizes.

2

2-Flute Square End

A fixed 2-flute square-end geometry (the catalogue's own "2F" designation) across the full size range.

3

Steel, Stainless & Non-Ferrous Coverage

Rated for ISO P (steel), M (stainless steel) and N (non-ferrous metal) material groups.

4

Ø1–50 mm, 50–160 mm Overall Length

Diameters run Ø1–50 mm in 0.1 mm increments, with overall lengths from 50 to 160 mm across 147 sizes.

Workpiece material

Material applicability

P

Steel

  • Structural steel SS400
    ◎ Best fit

    Catalogue mark: ◎

  • Carbon steel S45C/S50C
    ◎ Best fit

    Catalogue mark: ◎

  • Alloy steel SCM/SCR
    ◎ Best fit

    Catalogue mark: ◎

H

Hardened steel

  • Pre-hardened steel NAK
    ◎ Best fit

    Catalogue mark: ◎

  • High-hardness steel 30–45 HRC
    Not marked

    Catalogue mark: —

  • High-hardness steel 45–55 HRC
    Excluded

    Catalogue mark: ×

  • High-hardness steel 55–60 HRC
    Excluded

    Catalogue mark: ×

  • High-hardness steel 60–66 HRC
    Excluded

    Catalogue mark: ×

M

Stainless steel

  • Stainless steel SUS304/316
    ○ Suitable

    Catalogue mark: ○

K

Cast iron

  • Cast iron FC/FCD
    ○ Suitable

    Catalogue mark: ○

N

Non-ferrous

  • Aluminum alloy AC/ADC
    ○ Suitable

    Catalogue mark: ○

  • Copper Cu
    ○ Suitable

    Catalogue mark: ○

Source: Catalogue · NACHI 2003-29 catalogue HSS End Mill Selection Chart, visually reviewed for 2SE. · Selection Chart pages E-4–E-7

Specifications

Sizes & part numbers

ORDER NO.FLUTESØFLUTE LOALSHANKCOATING
2SE1 2 1 mm 2 50 6 HSSCO
2SE1.5 2 1.5 mm 3 50 6 HSSCO
2SE2 2 2 mm 7 50 6 HSSCO
2SE2.5 2 2.5 mm 7 50 6 HSSCO
2SE3 2 3 mm 9 50 6 HSSCO
2SE3.5 2 3.5 mm 12 60 8 HSSCO
2SE4 2 4 mm 12 60 8 HSSCO
2SE4.5 2 4.5 mm 15 60 8 HSSCO
2SE5 2 5 mm 15 60 8 HSSCO
2SE5.5 2 5.5 mm 15 60 8 HSSCO
2SE6 2 6 mm 15 60 8 HSSCO
2SE6.5 2 6.5 mm 20 65 10 HSSCO
2SE7 2 7 mm 20 65 10 HSSCO
2SE7.5 2 7.5 mm 20 65 10 HSSCO
2SE8 2 8 mm 20 65 10 HSSCO
2SE8.5 2 8.5 mm 25 75 10 HSSCO
2SE9 2 9 mm 25 75 10 HSSCO
2SE9.5 2 9.5 mm 25 75 10 HSSCO
2SE10 2 10 mm 25 75 10 HSSCO
2SE11 2 11 mm 30 80 12 HSSCO
2SE12 2 12 mm 30 80 12 HSSCO
2SE13 2 13 mm 35 90 16 HSSCO
2SE14 2 14 mm 35 90 16 HSSCO
2SE15 2 15 mm 40 95 16 HSSCO
2SE16 2 16 mm 40 95 16 HSSCO
2SE17 2 17 mm 40 105 20 HSSCO
2SE18 2 18 mm 40 105 20 HSSCO
2SE19 2 19 mm 45 110 20 HSSCO
2SE20 2 20 mm 45 110 20 HSSCO
2SE20.1 □ 2 20.1 mm 45 110 20 HSSCO
2SE20.2 2 20.2 mm 45 110 20 HSSCO
2SE20.3 2 20.3 mm 45 110 20 HSSCO
2SE20.4 2 20.4 mm 45 110 20 HSSCO
2SE20.5 2 20.5 mm 45 110 20 HSSCO
2SE20.6 2 20.6 mm 45 110 20 HSSCO
2SE20.7 2 20.7 mm 45 110 20 HSSCO
2SE20.8 2 20.8 mm 45 110 20 HSSCO
2SE20.9 2 20.9 mm 45 110 20 HSSCO
2SE21 2 21 mm 45 110 20 HSSCO
2SE21.1 □ 2 21.1 mm 45 110 20 HSSCO
2SE21.2 2 21.2 mm 45 110 20 HSSCO
2SE21.3 2 21.3 mm 45 110 20 HSSCO
2SE21.4 2 21.4 mm 45 110 20 HSSCO
2SE21.5 2 21.5 mm 45 110 20 HSSCO
2SE21.6 2 21.6 mm 45 110 20 HSSCO
2SE21.7 2 21.7 mm 45 110 20 HSSCO
2SE21.8 2 21.8 mm 45 110 20 HSSCO
2SE21.9 2 21.9 mm 45 110 20 HSSCO
2SE22 2 22 mm 45 110 20 HSSCO
2SE22.1 □ 2 22.1 mm 50 120 25 HSSCO
2SE22.2 2 22.2 mm 50 120 25 HSSCO
2SE22.3 2 22.3 mm 50 120 25 HSSCO
2SE22.4 2 22.4 mm 50 120 25 HSSCO
2SE22.5 2 22.5 mm 50 120 25 HSSCO
2SE22.6 2 22.6 mm 50 120 25 HSSCO
2SE22.7 2 22.7 mm 50 120 25 HSSCO
2SE22.8 2 22.8 mm 50 120 25 HSSCO
2SE22.9 2 22.9 mm 50 120 25 HSSCO
2SE23 2 23 mm 50 120 25 HSSCO
2SE23.1 □ 2 23.1 mm 50 120 25 HSSCO
2SE23.2 □ 2 23.2 mm 50 120 25 HSSCO
2SE23.3 2 23.3 mm 50 120 25 HSSCO
2SE23.4 2 23.4 mm 50 120 25 HSSCO
2SE23.5 2 23.5 mm 50 120 25 HSSCO
2SE23.6 2 23.6 mm 50 120 25 HSSCO
2SE23.7 2 23.7 mm 50 120 25 HSSCO
2SE23.8 2 23.8 mm 50 120 25 HSSCO
2SE23.9 2 23.9 mm 50 120 25 HSSCO
2SE24 2 24 mm 50 120 25 HSSCO
2SE24.1 □ 2 24.1 mm 50 120 25 HSSCO
2SE24.2 2 24.2 mm 50 120 25 HSSCO
2SE24.3 2 24.3 mm 50 120 25 HSSCO
2SE24.4 2 24.4 mm 50 120 25 HSSCO
2SE24.5 2 24.5 mm 50 120 25 HSSCO
2SE24.6 2 24.6 mm 50 120 25 HSSCO
2SE24.7 2 24.7 mm 50 120 25 HSSCO
2SE24.8 2 24.8 mm 50 120 25 HSSCO
2SE24.9 2 24.9 mm 50 120 25 HSSCO
2SE25 2 25 mm 50 120 25 HSSCO
2SE25.1 □ 2 25.1 mm 50 120 25 HSSCO
2SE25.2 2 25.2 mm 50 120 25 HSSCO
2SE25.3 2 25.3 mm 50 120 25 HSSCO
2SE25.4 2 25.4 mm 50 120 25 HSSCO
2SE25.5 2 25.5 mm 50 120 25 HSSCO
2SE25.6 2 25.6 mm 50 120 25 HSSCO
2SE25.7 2 25.7 mm 50 120 25 HSSCO
2SE25.8 2 25.8 mm 50 120 25 HSSCO
2SE25.9 2 25.9 mm 50 120 25 HSSCO
2SE26 2 26 mm 50 120 25 HSSCO
2SE26.1 □ 2 26.1 mm 55 125 25 HSSCO
2SE26.2 2 26.2 mm 55 125 25 HSSCO
2SE26.3 2 26.3 mm 55 125 25 HSSCO
2SE26.4 2 26.4 mm 55 125 25 HSSCO
2SE26.5 2 26.5 mm 55 125 25 HSSCO
2SE26.6 2 26.6 mm 55 125 25 HSSCO
2SE26.7 2 26.7 mm 55 125 25 HSSCO
2SE26.8 2 26.8 mm 55 125 25 HSSCO
2SE26.9 2 26.9 mm 55 125 25 HSSCO
2SE27 2 27 mm 55 125 25 HSSCO
2SE27.1 □ 2 27.1 mm 55 125 25 HSSCO
2SE27.2 2 27.2 mm 55 125 25 HSSCO
2SE27.3 2 27.3 mm 55 125 25 HSSCO
2SE27.4 2 27.4 mm 55 125 25 HSSCO
2SE27.5 2 27.5 mm 55 125 25 HSSCO
2SE27.6 2 27.6 mm 55 125 25 HSSCO
2SE27.7 2 27.7 mm 55 125 25 HSSCO
2SE27.8 2 27.8 mm 55 125 25 HSSCO
2SE27.9 2 27.9 mm 55 125 25 HSSCO
2SE28 2 28 mm 55 125 25 HSSCO
2SE28.1 □ 2 28.1 mm 55 125 25 HSSCO
2SE28.2 2 28.2 mm 55 125 25 HSSCO
2SE28.3 2 28.3 mm 55 125 25 HSSCO
2SE28.4 2 28.4 mm 55 125 25 HSSCO
2SE28.5 2 28.5 mm 55 125 25 HSSCO
2SE28.6 2 28.6 mm 55 125 25 HSSCO
2SE28.7 2 28.7 mm 55 125 25 HSSCO
2SE28.8 2 28.8 mm 55 125 25 HSSCO
2SE28.9 2 28.9 mm 55 125 25 HSSCO
2SE29 2 29 mm 55 125 25 HSSCO
2SE29.1 □ 2 29.1 mm 55 125 25 HSSCO
2SE29.2 □ 2 29.2 mm 55 125 25 HSSCO
2SE29.3 2 29.3 mm 55 125 25 HSSCO
2SE29.4 2 29.4 mm 55 125 25 HSSCO
2SE29.5 2 29.5 mm 55 125 25 HSSCO
2SE29.6 2 29.6 mm 55 125 25 HSSCO
2SE29.7 2 29.7 mm 55 125 25 HSSCO
2SE29.8 2 29.8 mm 55 125 25 HSSCO
2SE29.9 2 29.9 mm 55 125 25 HSSCO
2SE30 2 30 mm 55 125 25 HSSCO
2SE31 2 31 mm 60 145 32 HSSCO
2SE32 2 32 mm 60 145 32 HSSCO
2SE33 2 33 mm 60 145 32 HSSCO
2SE34 2 34 mm 60 145 32 HSSCO
2SE35 2 35 mm 60 145 32 HSSCO
2SE36 2 36 mm 60 145 32 HSSCO
2SE37 2 37 mm 65 150 32 HSSCO
2SE38 2 38 mm 65 150 32 HSSCO
2SE39 2 39 mm 65 150 32 HSSCO
2SE40 2 40 mm 65 150 32 HSSCO
2SE42 2 42 mm 65 150 32 HSSCO
2SE42×42 2 42 mm 65 155 42 HSSCO
2SE45 2 45 mm 70 155 32 HSSCO
2SE45×42 2 45 mm 70 160 42 HSSCO
2SE48 2 48 mm 70 155 32 HSSCO
2SE48×42 2 48 mm 70 160 42 HSSCO
2SE50 2 50 mm 70 155 32 HSSCO
2SE50×42 2 50 mm 70 160 42 HSSCO

□ = special order (made to order, longer lead time)

Related products

You may also need

NACHI 2AGE Square End Mill (2F)

NACHI 2AGE Square End Mill (2F)

Milling
NACHI 2GE Square End Mill (2F)

NACHI 2GE Square End Mill (2F)

Milling
NACHI 2MGE Square End Mill (2F)

NACHI 2MGE Square End Mill (2F)

Milling
NACHI 3GE Square End Mill (3F)

NACHI 3GE Square End Mill (3F)

Milling
NACHI 4GE Square End Mill (4F)

NACHI 4GE Square End Mill (4F)

Milling

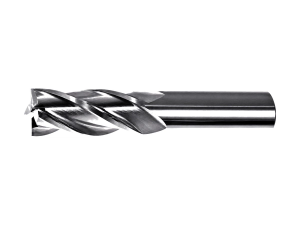

NACHI 4SE Square End Mill (4F)
